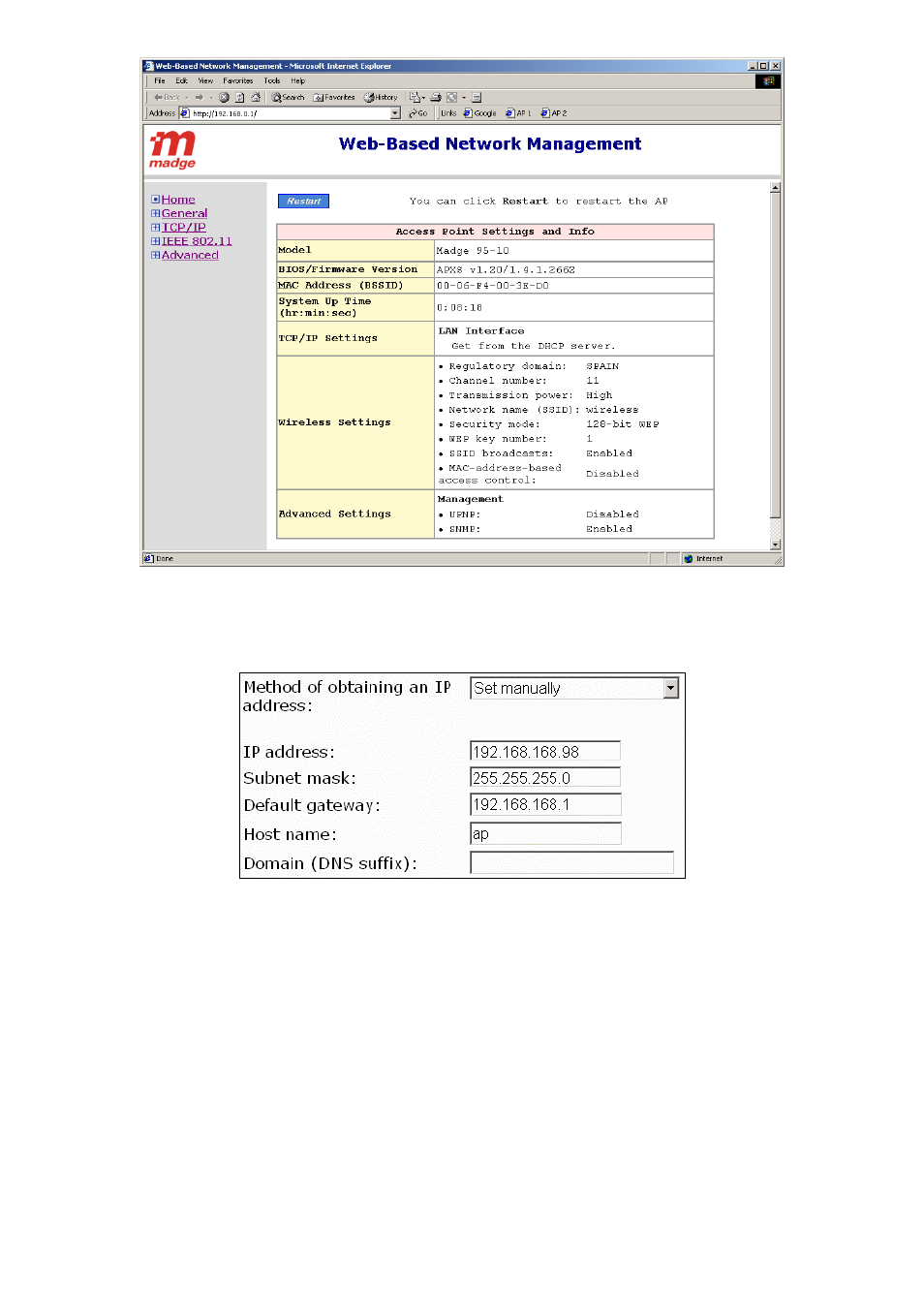

Fig. 4. The Start page.
2.4.2 Step 1: Configure TCP/IP Settings
Fig. 5. TCP/IP settings.
Go to the TCP/IP, Addressing section to configure IP address settings. The IP address can be manually
set or automatically assigned by a DHCP server on the LAN. If you are manually setting the IP Address,
Subnet Mask, and Default Gateway settings, set them appropriately, so that they comply with your LAN
environment. In addition, you can specify the Host Name and Domain (DNS suffix) of the advanced AP.
When you are finished, click Save at the bottom of this page, and then you are brought back to the start
page.
