Page 16: 3 configuring tcp/ip related settings

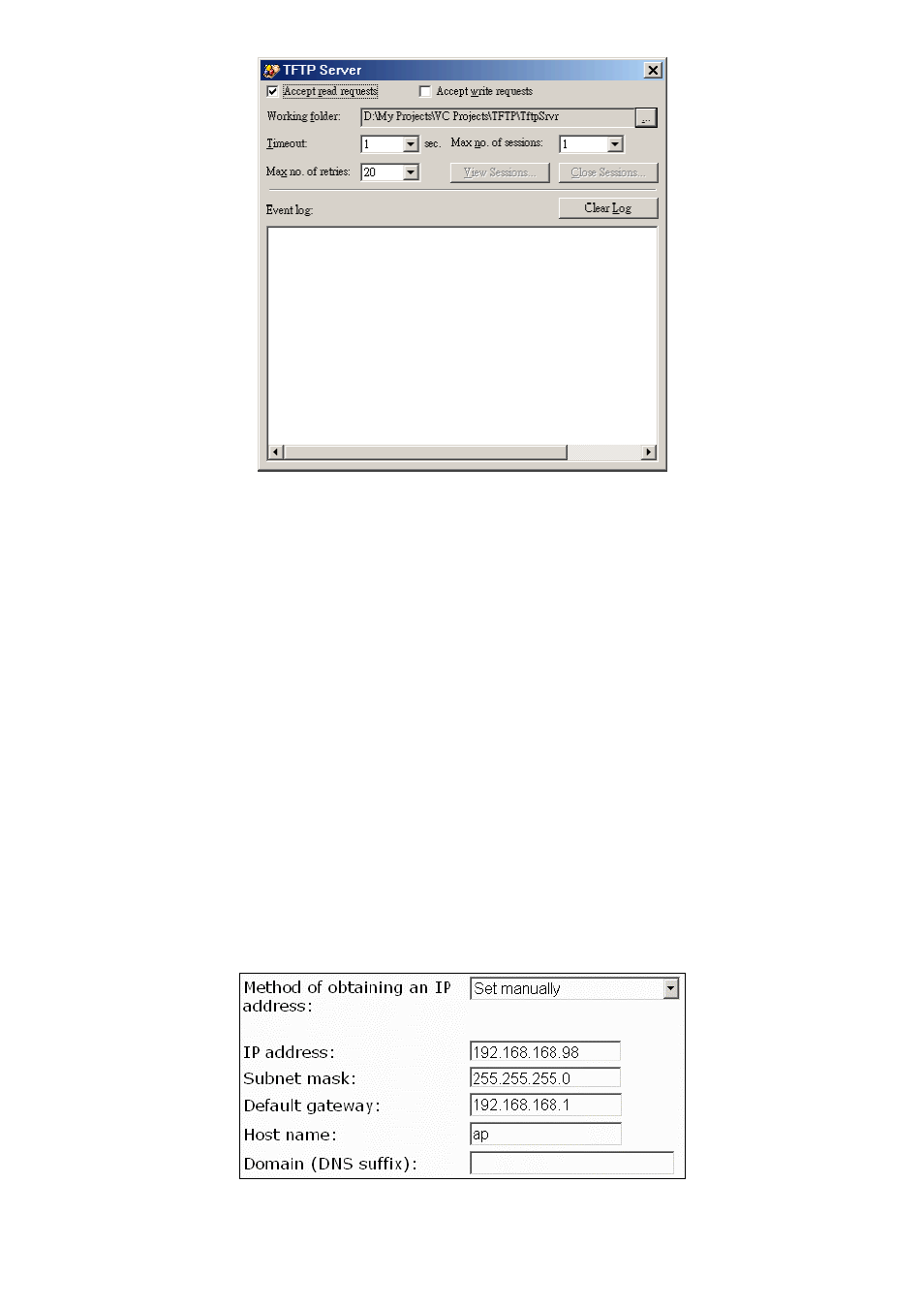

Fig. 13. TFTP Server.

TIP:

It's more convenient to use the Firmware Upgrade Wizard of Wireless Network Manager to upgrade

the firmware of an advanced AP. See section 4.

NOTE:

After the dialog box of the TFTP server program appears, be sure to specify the working folder

within which the downloaded firmware files reside.

NOTE:

The LAN IP address of the advanced AP and the IP address of the TFTP server must be in the

same IP subnet for TFTP to work.

NOTE:

Due to the nature of wireless media, it’s highly recommended that the TFTP server and the to-be-

upgraded advanced AP be connected by Ethernet, and on the same LAN, so that the upgrade process will
be smooth.

NOTE:

After the firmware is upgraded, be sure to delete the contents of the Web browser cache, so that

the Web management pages can be shown correctly.

NOTE:

A failed upgrade may corrupt the firmware and make the advanced AP unstartable. When this

occurs, call technical support.

3.3

Configuring TCP/IP Related Settings

3.3.1 Addressing

Fig. 14. TCP/IP settings.

100-408-01
