Section 1 – General Information
PRIMEPACT 66G and 66LP Recreational Vehicle Generators

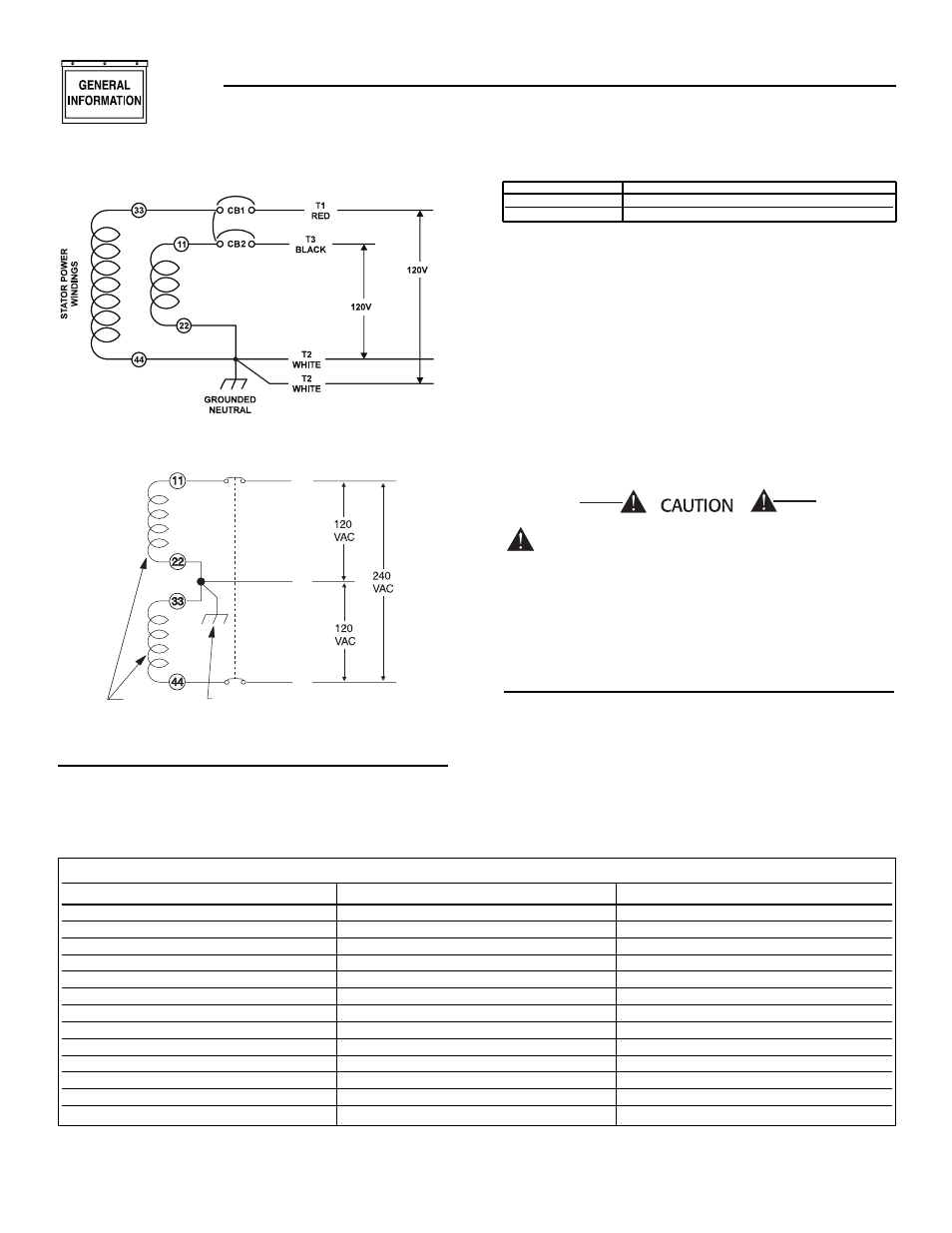

Figure 1.1 – Connection for 120 Volts Only
Figure 1.2 - Connection for 120/240 Volts
1.6 SPECIFICATIONS
1.6.1 FUEL REQUIREMENTS
This generator is equipped with a gasoline fuel system
as standard equipment. Specific installations may pro-
vide either a separate fuel tank for the generator, or the
generator may “share” the vehicle engine’s fuel tank.
Fuel Consumption
(gph/lbs.ph)
NOTE
Some installations using a “shared” fuel tank may
have a generator fuel pickup tube that is shorter
than the vehicle engine’s pickup tube. Such an
arrangement causes the generator engine to “run
out of gas” while adequate fuel for the vehicle
remains in the tank.
To reduce lead and carbon deposits use high quality
UNLEADED gasoline with the generator. Leaded
REGULAR grade gasoline is an acceptable substitute.
NOTE:
Using unleaded gasoline contributes to longer engine
valve life by reducing lead and carbon deposits.
Generac does not recommend using any
gasoline containing alcohol (such as “gasohol”).
If you use any gasoline containing alcohol, it
must not contain more than 10 percent ethanol,
and it must be removed from the generator
during storage. Do NOT use any gasoline
containing methanol. If you use gasoline with
alcohol, inspect more frequently for fuel leaks
and other abnormalities.
1.6.2 ENGINE OIL REQUIREMENTS
Use only high quality detergent oil classified “For
Service SF” and with an oil viscosity rating of SAE
10W-30 oil. Do not pour in any additives to the rec-
ommended oil. Engine crankcase capacity is 1.4
liters. See Section 3.2 on page 11 for oil level check
and filing procedures.
◆
◆
T1
RED
T2
WHITE
T3
BLACK
GROUNDED NEUTRAL STATOR WINDINGS
CB1
CB2
◆ 1.6.3 GENERATOR SPECIFICATIONS
SERIES PRIMEPACT 66G PRIMEPACT 66LP
Rotor RPM 3600 3600
Rotor Poles 2 2
Engine RPM 2700 2700
Rated Max. Continuous AC Output* 6600 watts (6.6 kW) 6200 watts (6.2 kW)
Voltage* 120 120
Rated Max. Continuous Current* 55.0 AC amps‡ 51.7 AC amps Ñ
Phase 1 1
Frequency 60 Hertz 60 Hertz
Battery Charging Current (Max.) 2 amps (trickle charge) 2 amps (trickle charge)
Weight 213 pounds 216 pounds
Length 25 inches 25.75 inches
Width 18.5 inches 18.5 inches
Height 15.75 inches 15.75 inches
* All units are reconnectable to 120 and/or 240 volts, dual voltage output. Units are not listed per RVIA/ANSI when reconnected for dual voltage output
‡ Rated maximum continuous current at 240 volts is 27.5 amps.
Ñ Rated maximum continuous current at 240 volts is 25.8 amps.
Model No Load 1/2 Load Full Load
PrimePact 66G 0.33 0.59 0.99
PrimePact 66LP 0.47/2.01 0.85/3.62 1.66/7.05
