Stovax Steel Manhattan Log Effect Stove Range - Manual (Page 21)

21
SERVICING INSTRUCTIONS
REPLACING PARTS
6.6 Check all joints for gas leaks. Check the operation of the
thermocouple and ignition lead.
7. MAGNETIC SAFETY VALVE
7.1 Turn the gas supply off at the isolation device. Undo the
thermocouple connection from the back of the gas valve.
Pull the sensor leads clear and remove the interrupter block.

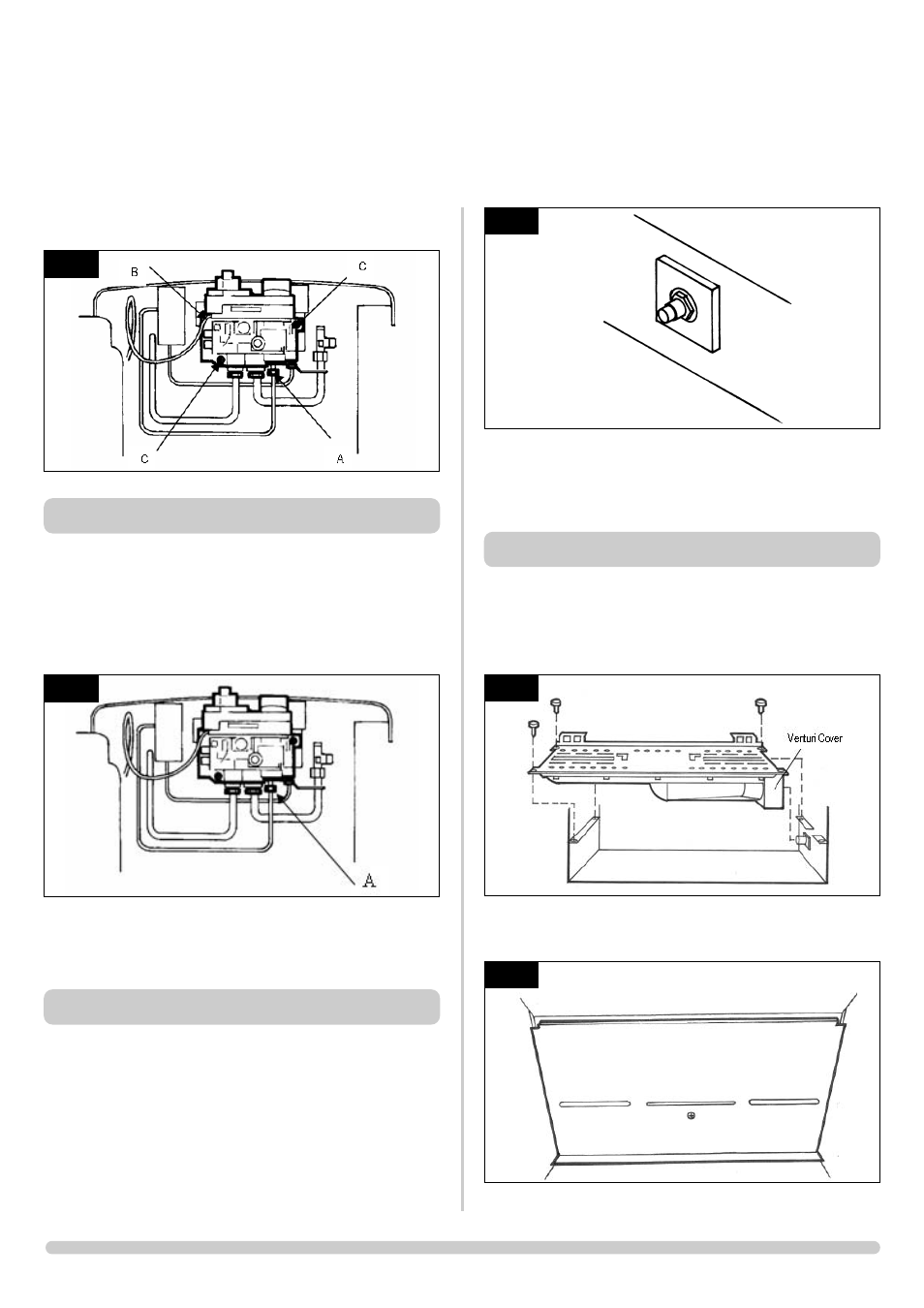

7.2 Undo the mag valve retaining nut at the back of the control
valve. Gently tap out the mag valve and replace with a new
unit. Replace the retaining nut and tighten. See diagram 17,
Arrow A.
7.3 Reassemble the interrupter block and leads. Secure the
thermocouple connection in the rear of the gas control (Do
not overtighten). Turn the gas supply on and check the
entire pipework and valve joints for any leaks.
8. MAIN INJECTOR
8.1 Turn the gas supply off at the isolation device. Refer to
Section 2, Replacing Parts to remove the main burner.
8.2 Undo the compression nut from the feed pipe at the gas
control under the appliance.
8.3 Working from inside the firebox, remove the lock nut from
the injector and withdraw the injector complete with the
feed pipe from under the appliance. See diagram 18 .
8.4 Holding the injector with a spanner, undo the feed pipe.
NOTE: THE ORIENTATION OF THE INJECTOR.
8.5 Reassemble in reverse order. Turn on the gas supply and
check for any leaks.
9. GAZCO FLUE SURE SYSTEM
9.1 Lift off the decorative steel trim and remove the 8 screws
holding the glass frame. Carefully remove the coal retainer
and ceramic components and place to one side. Remove the
burner casting by removing the three screws located on the
sides of the burner skin.
9.2 Remove the screw on the back panel and remove the panel.
Refer to Diagram 20.
AR0943b
16
AR0618
18
AR0943c
17
AR1605
19
AR1606
20
