RotoFlex ™ II Pump
8 311771D
RotoFlex
™
II Pump

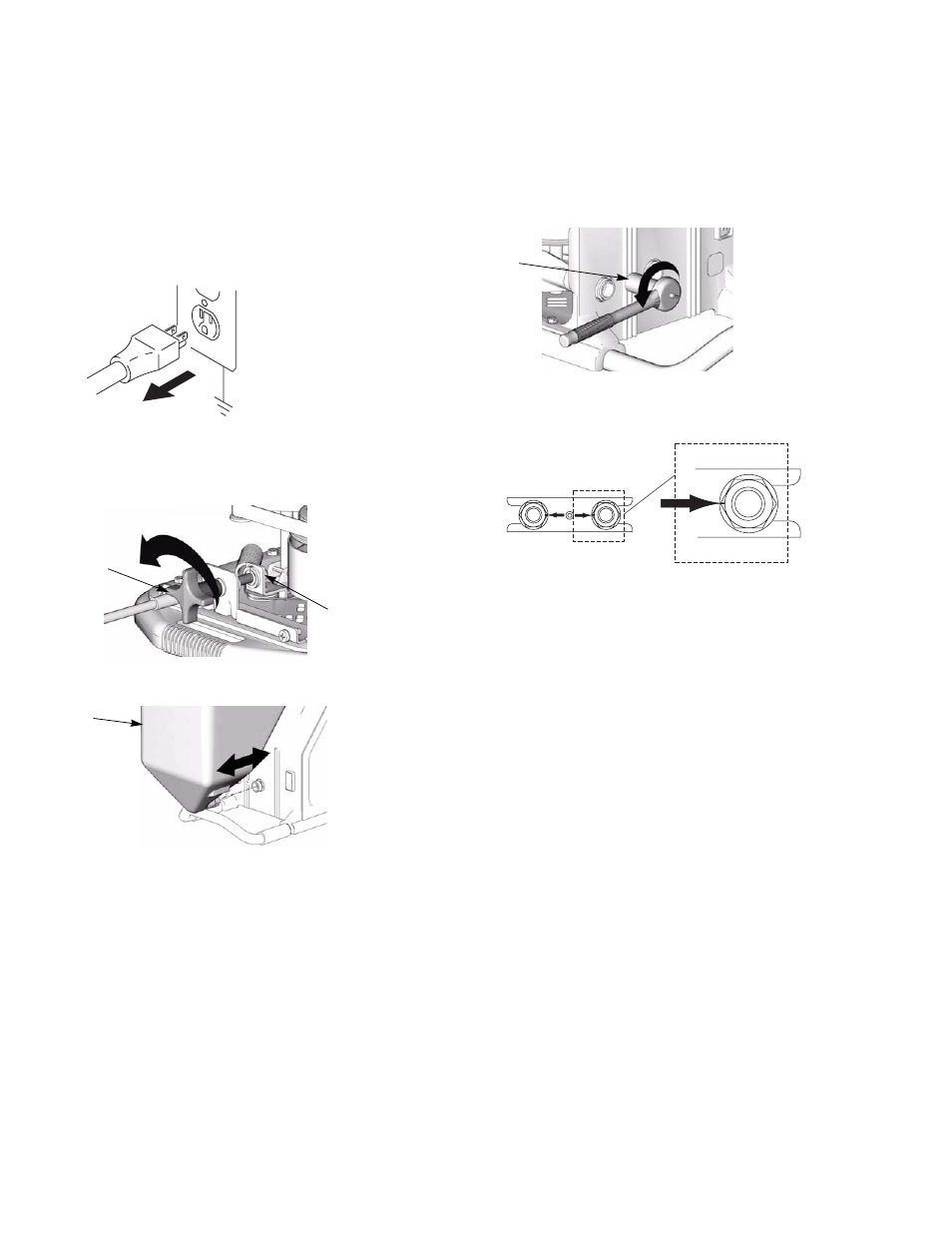

Disassembly
1. Relieve Pressure, page 6.
2. Unplug sprayer from outlet.
3. Remove Shroud, page 7.
4. Loosen two spacers (56) and knob (41).
5. Loosen hopper fitting by hand to remove hopper (1).
6. Use 3/8 in. socket to remove screw (36) from hose
bracket (27).
7. Slide hose fittings out of hose bracket (27) and
remove hose (23) from base (2).
ti2810b
ti9657a
41
56
ti8781a
1
ti9065a
36
ti3084a
