Motor Fuse Removal
12 311771D
Motor Fuse Removal
When replacing fuse, use only Bussman GMF-3 (3A) to
prevent premature trips or equipment damage.

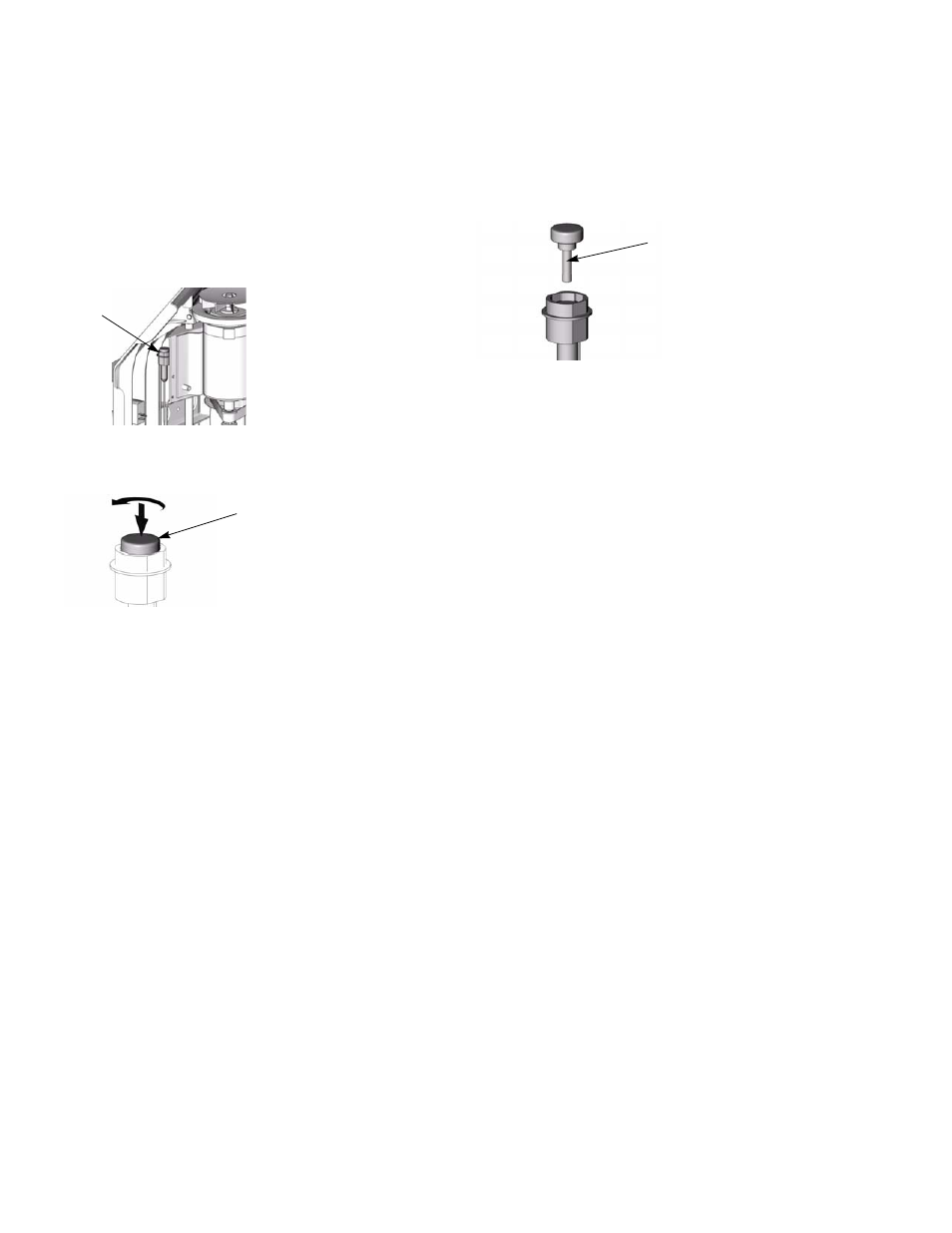

The motor has a replaceable fuse attached to the motor
bracket. The fuse assembly (A) is fastened to the motor
bracket along with a clamp.
To remove the motor fuse, press down on the round
center cover (C) and turn it counterclockwise.
The cover will pop up to allow the fuse (F) to be
inspected and replaced if needed.
ti9206a
A
ti9200a
C
ti9201a
F
