Motor
10 311771D
Motor

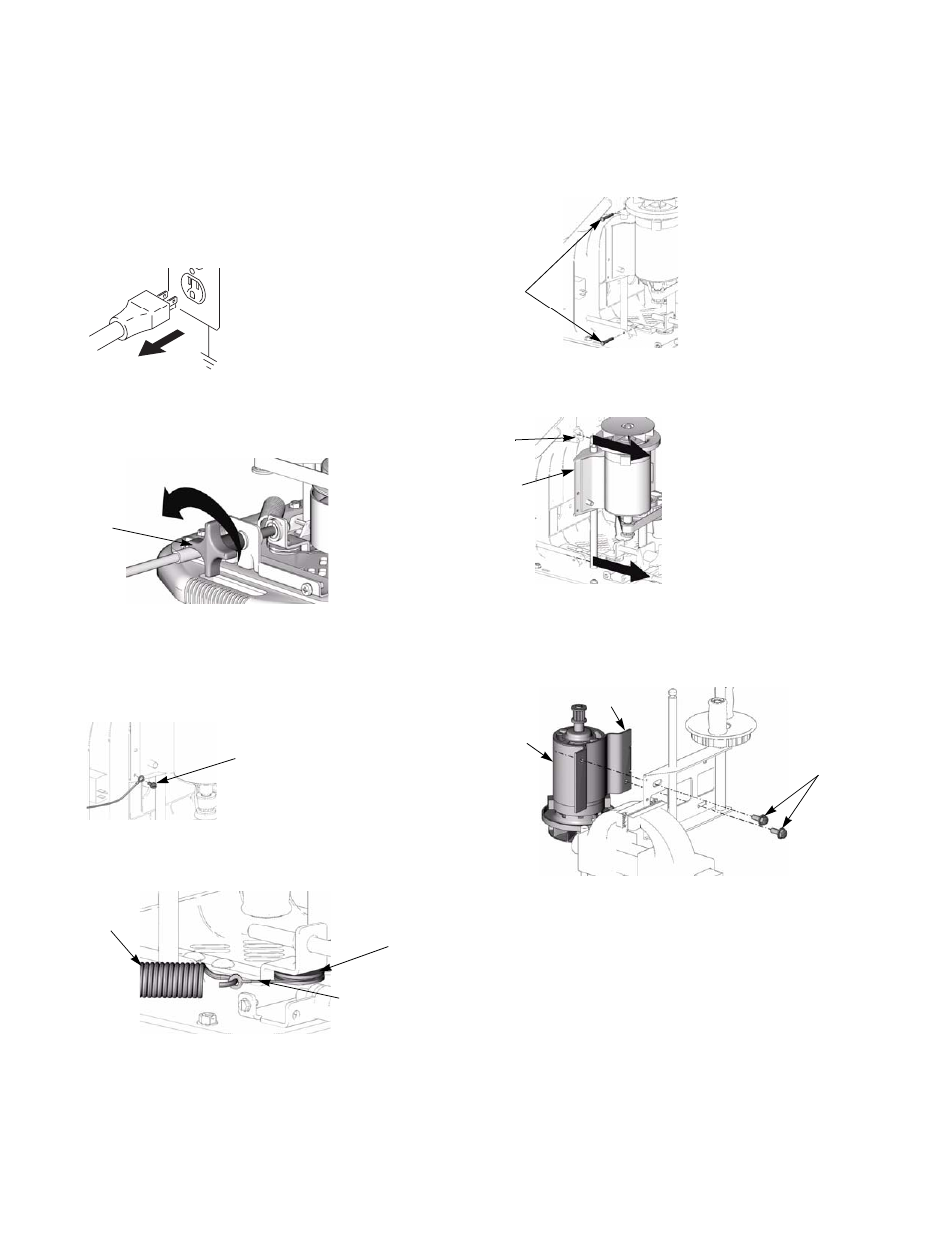

Disassembly
1. Relieve Pressure, page 6.
2. Unplug sprayer from outlet.
3. Remove Shroud, page 7.
4. loosen knob (41) until spring relaxes.
5. Remove Pump, page 8.
6. Disconnect all electrical Wiring, page 16.
7. Use 1/4 in. socket to remove grounding screw (22).
8. Disconnect extension cable (29) from pulley (17)
and spring (19) to allow motor tray to pivot.
9. Remove two clevis pins (20) from base.
10. Slide motor tray (32) out of slots in base (2) to
remove motor and tray from sprayer.
11. Remove Belt, page 13.
12. Loosen bolts (4) and remove motor (31) from motor
tray (32).
ti2810b
ti9657a
41
ti9064a
22
ti9058a
17
29
19
ti8783a
20
ti9070a
32
2
31
4
32
ti9214a
