10) Reinstall Front Air Shield, Hearth
•
The shield should not clamp down on any of the tubing. The flex tubing can be bent out of
the way through the central opening in the shield.

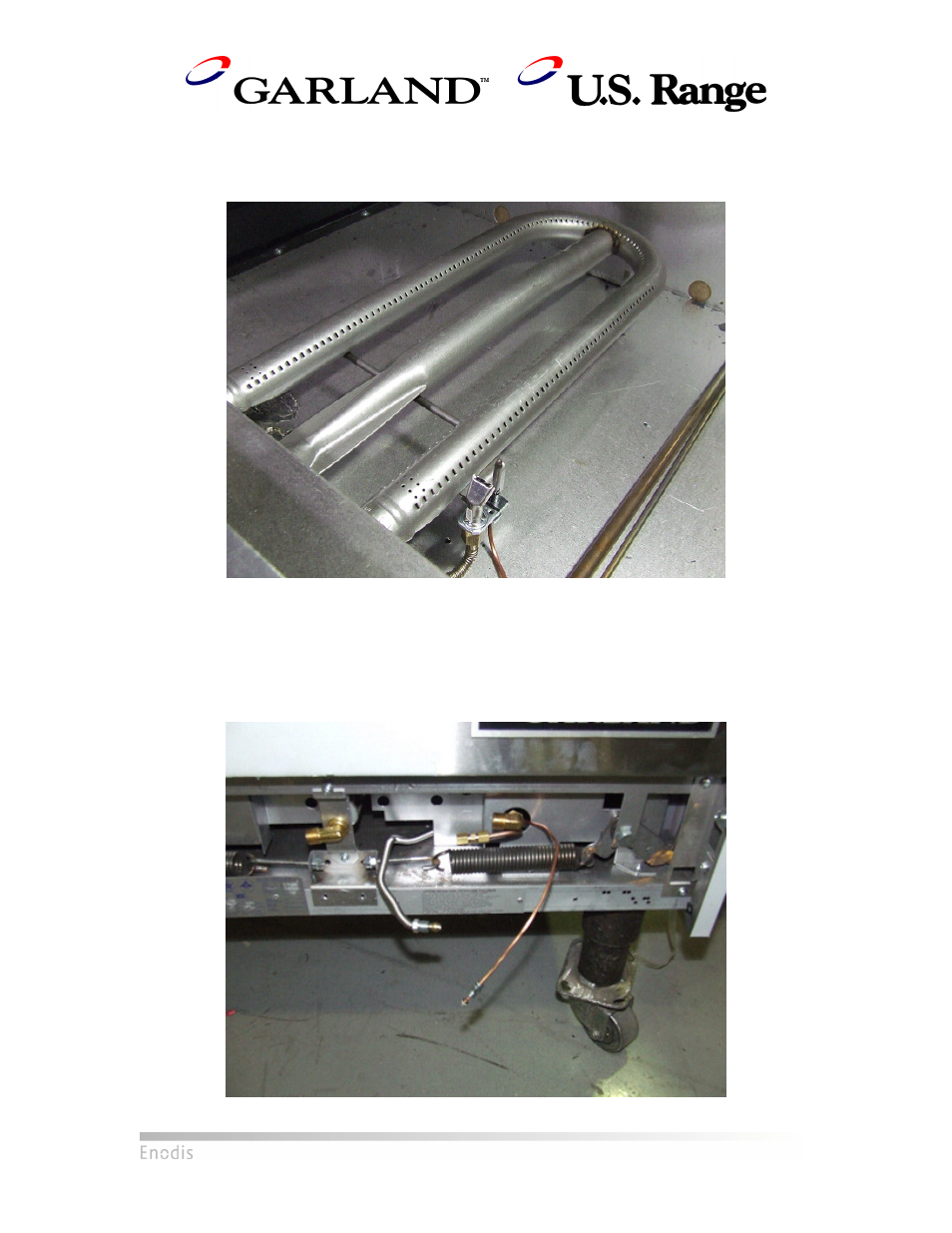

New welded bracket burner installed.
11) Pull Out Flex Tube and Thermocouple
•
Ensure that the thermocouple is routed through the hole in the front shield made for the
main gas inlet to the valve. This will make the thermocouple easier to install.
•
Unbend and pull the pilot gas flex tube outwards as far as possible. Do not pull too hard
as the pilot bracket on the burner may be damaged.
Thermocouple and Pilot gas flex tube pulled out
