18) Attach Bracket to Oven
•
Unscrew the two screws holding the orifice bracket to the lower oven frame.
•
Slip the bracket (Part 8, Assembly Drawing) underneath the valve assembly such that the
taller face is flush up against the lower oven frame.
•
Position the screw holes on the bracket such that two of them line up with the holes used
for the orifice bracket. The third hole on the far right of the bracket will line up with a hole
on the lower oven frame.
•
Screw bracket onto oven frame with sheet metal screws (Part 9, Assembly Drawing).

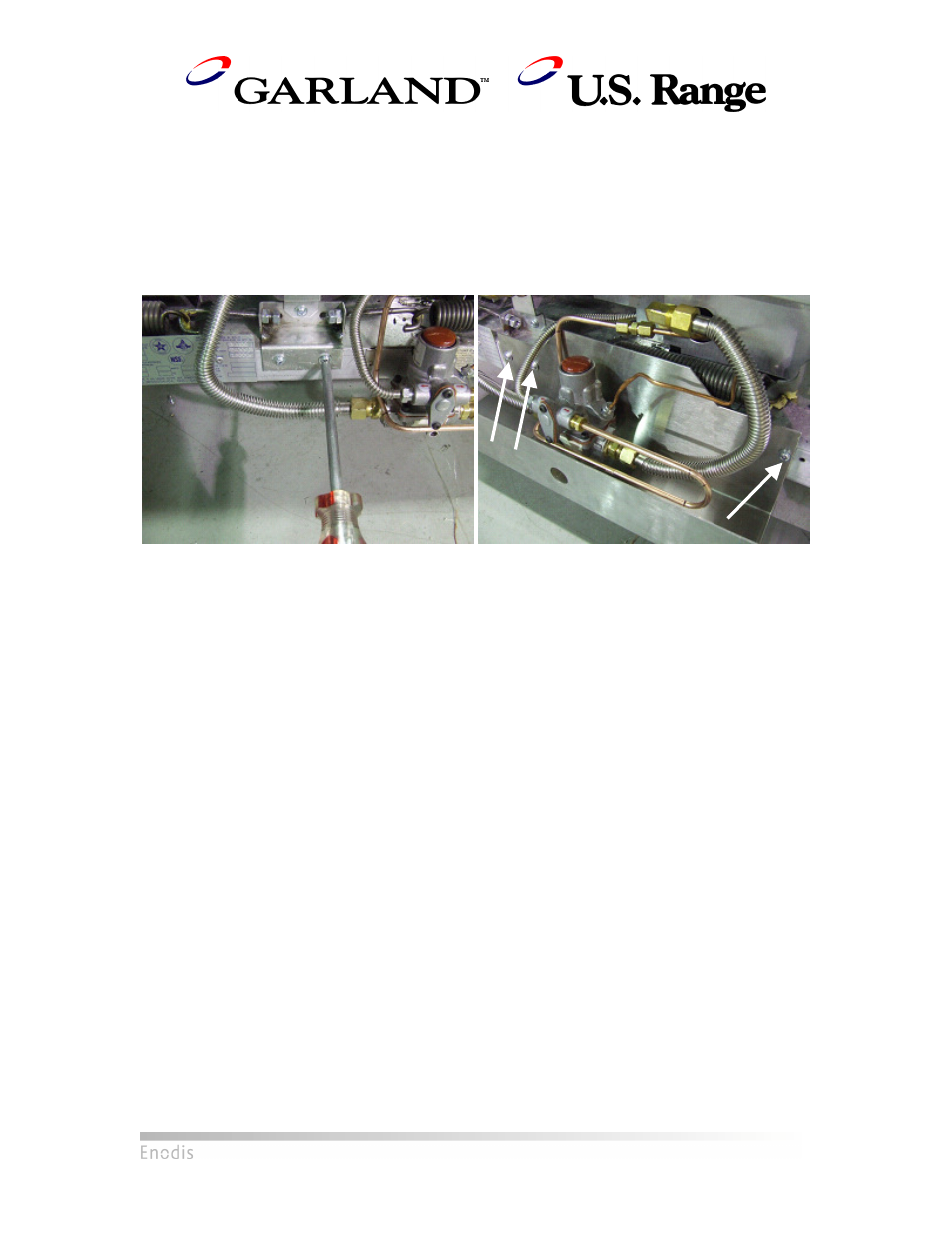

Left: Unscrewing two lower screws of orifice bracket
Right: Attached valve bracket with arrows indicating location of screws
