16) Connect Remaining Tubes and Thermocouple
•
The free end of each 7/16” flex tube from the valve should be fitted with a 7/16” nut (Part
10, Assembly Drawing) and 7/16” ferrule (Part 11, Assembly Drawing).
•
Connect the 7/16” flex tube and the thermocouple. Tighten all connections.
•

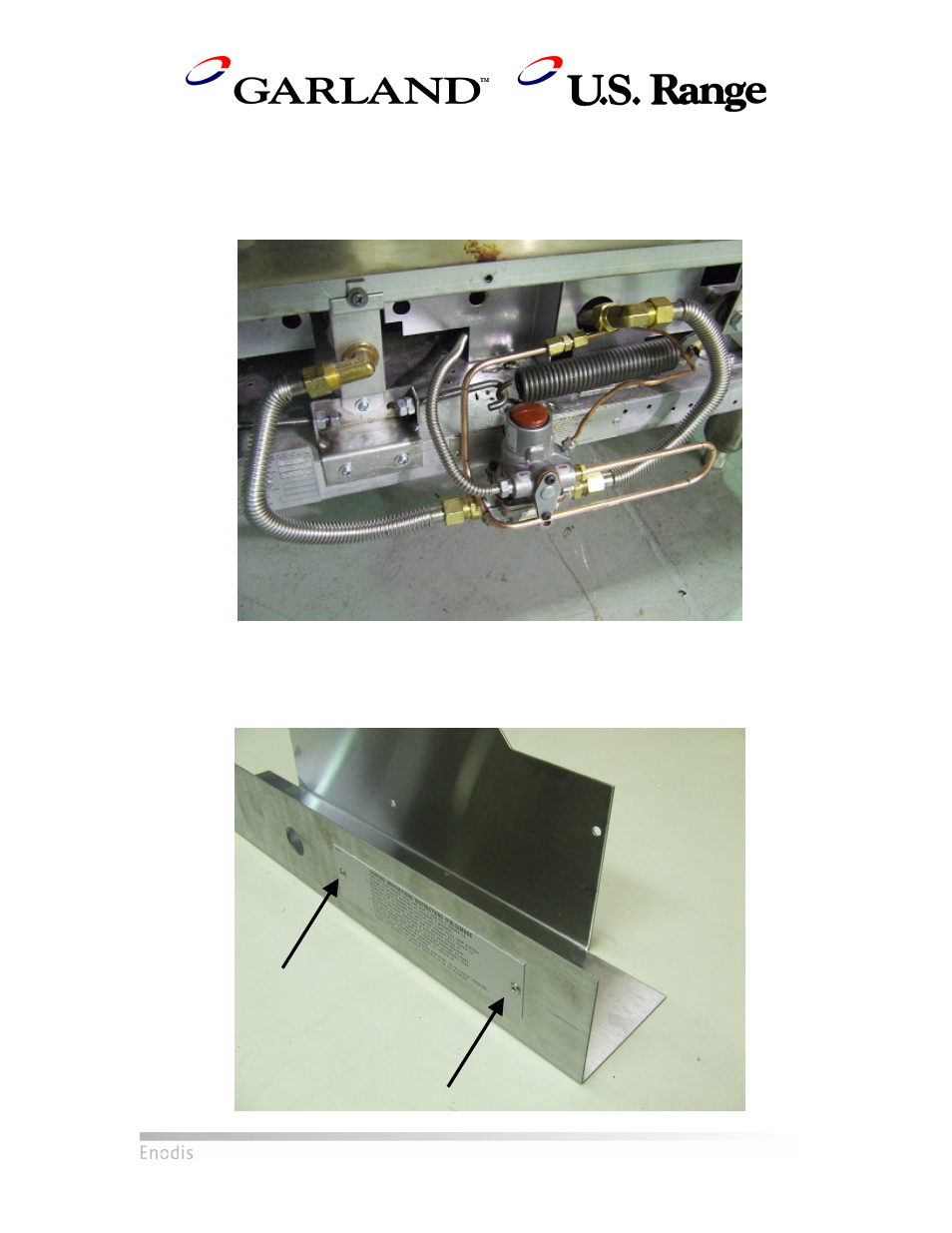

The final tube connections should be comparable to the picture below.
Final Tube Configuration
17) Attach Lighting Instructions to Valve Bracket
The pilot lighting instructions are riveted on through the two holes in the bracket.
Ensure that the instructions are mounted in the correct direction shown below.
