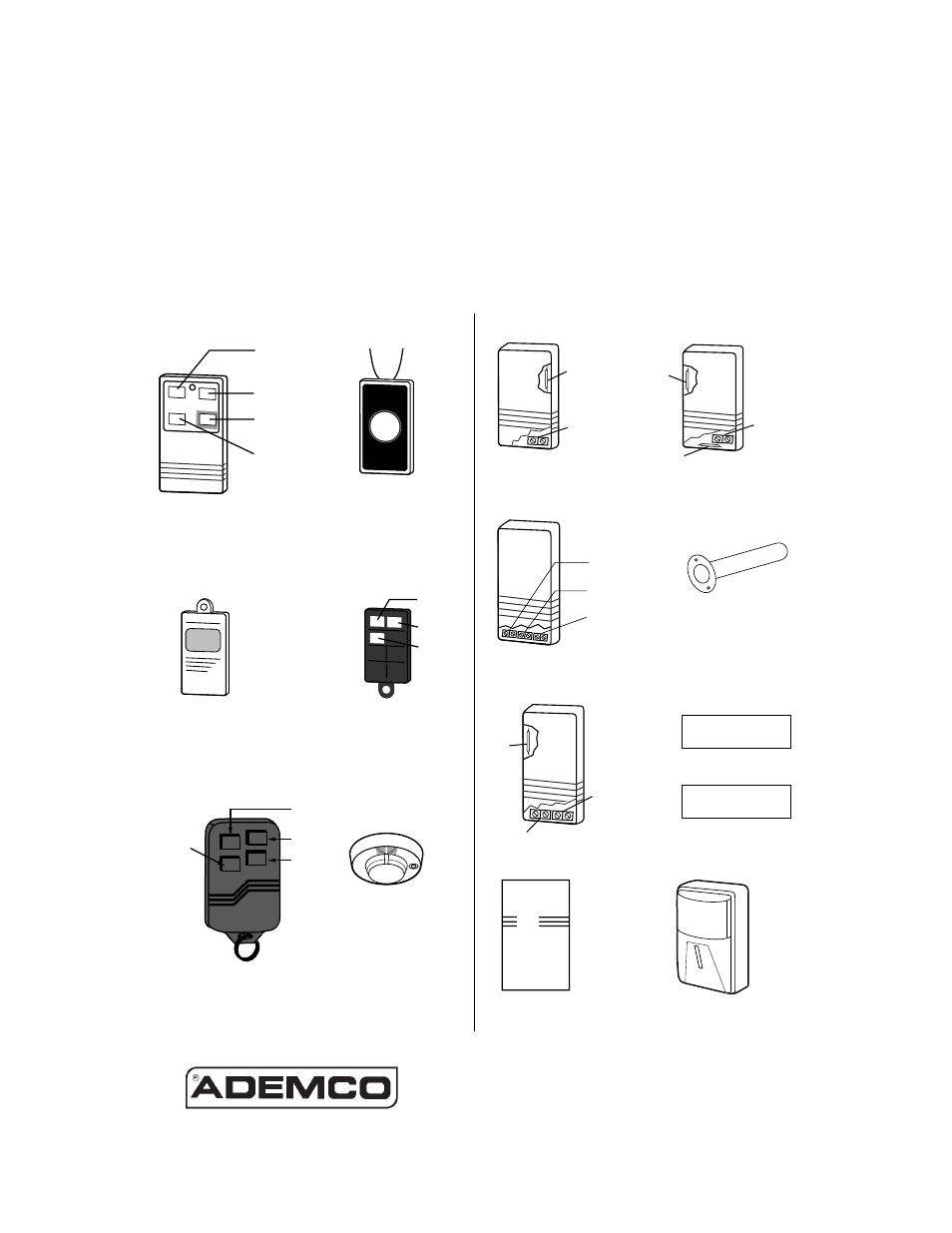

5800 Series Transmitter Input Loop Identification
• All of the transmitters illustrated below have one or more unique factory assigned input (loop) ID codes. Each
of the inputs requires its own programming zone (e.g., a 5803's three inputs require three programming
zones).
• Transmitter inputs entered as:
"RF" (Supervised RF) Type send periodic check-in signals, as well as fault, restore and low
battery signals. The transmitter must remain within the receiver's range.
“UR" (Unsupervised RF) Type send all the signals that the "RF" Type does, but the control does
not supervise the check-in signals. The transmitter may, therefore, be carried off-premises.
"BR" (Unsupervised Button RF) Type only send fault signals. They do not send restore, check-
in, or automatic low battery signals. The transmitter may be carried off-premises.
3
4
1
2
(ALWAYS USE)
INPUT
(LOOP)
5 8 0 1
LEARN AS "UR" OR "RF"
INPUT
(LOOP)
1
5 8 0 2 / 5 8 0 2 C P
LEARN AS "BR"
INPUT
(LOOP)
1
5 8 0 2 M N
LEARN AS "UR" OR "RF"
5 8 0 3
LEARN AS "BR"
3
2
1
ON
OFF
YOU MUST
LEARN THIS
BUTTON
LOOP 3
LOOP 1
LOOP 2
LOOP 4
INPUT
(LOOP)
1
5 8 0 6 / 5 8 0 7 / 5 8 0 8
(5806 SHOWN)
LEARN AS "RF"
5 8 0 4
LEARN
AS "BR"
INPUT
(LOOP)
5 8 1 7
LEARN AS "RF"
INPUT
(LOOP)
1
(PRIMARY)
2
(AUX. CENTER)
3
(AUX. RIGHT) 5 8 1 8
LEARN AS "RF"
INPUT
(LOOP)
1
5 8 4 9
LEARN AS "RF"
INPUT
(LOOP)
1
(MOTION)
INPUT
(LOOP)
1
(MOTION)
5 8 9 0
LEARN AS "RF"
5 8 1 6
LEARN AS "RF"
INPUT
(LOOP)
2
(REED)
LOOP 1
(TERMINALS)
5 8 2 7
SET HOUSE CODE
5 8 2 7 B D
SET HOUSE CODE
5 8 1 6 M N
LEARN AS "RF"
INPUT
(LOOP)
2
(REED)
LOOP 1
(TERMINALS)
5 8 1 9
LEARN AS "RF"
INPUT
(LOOP)
2
(REED)
LOOP 1
(TERMINALS)
ALTERNATE
POSITION
FOR LOOP2
LOOP 3
(TERMINALS)
