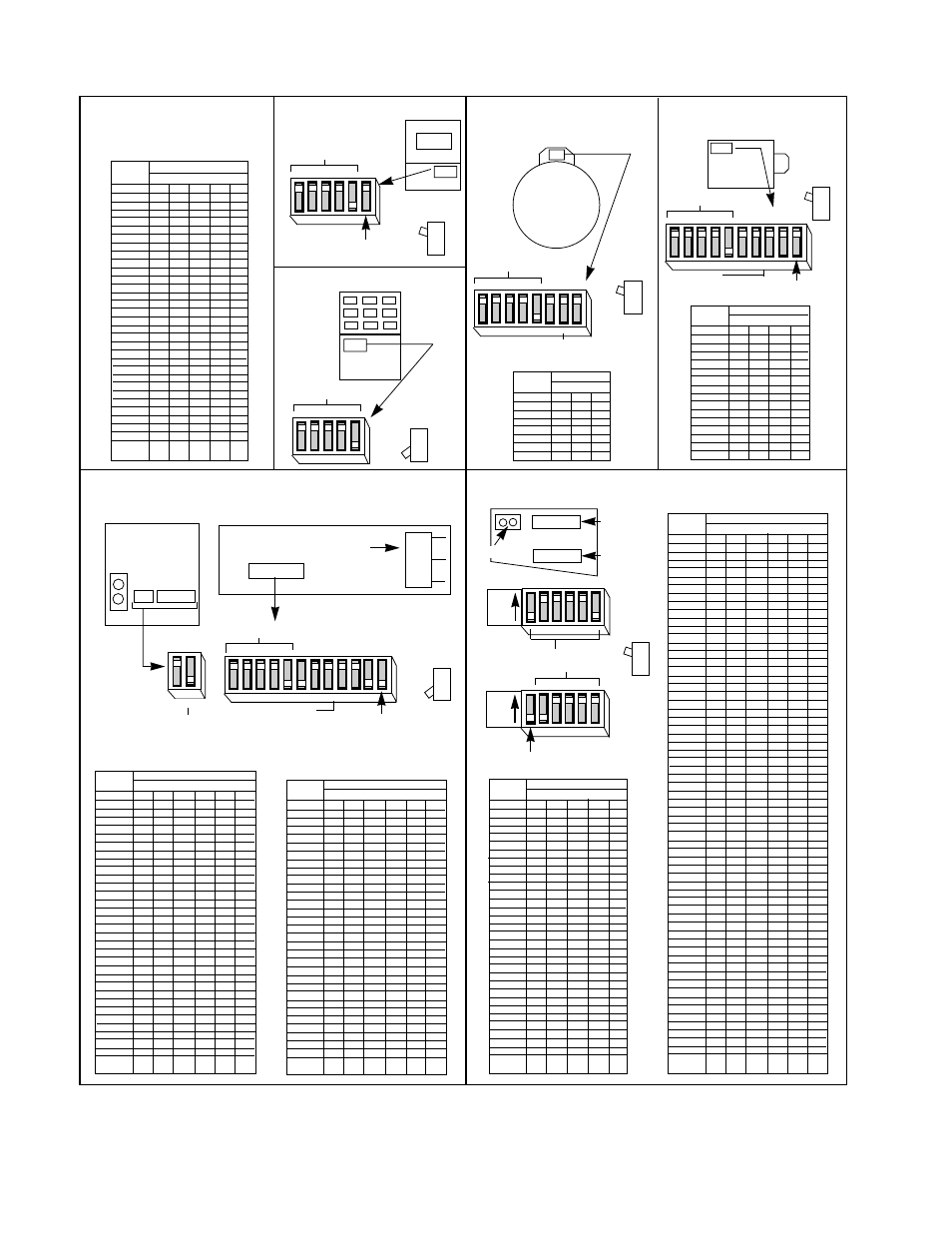

DIP SWITCH TABLES FOR 5700 RF SYSTEM WIRELESS DEVICES
HOUSE ID (1 SHOWN)
HOUSE ID (1 SHOWN)
HOUSE ID (1 SHOWN)
1 2 3 4 5 6
UP
DN
1 2 3 4 5
UP
DN
1 2 3 4 5 6 7 8
UP
DN
1 2 3 4 5 6 7 8 9 10
UP
DN
5706/5707 SMOKE
DETECTORTRANSMITTER
5775 PIR
DETECTOR/TRANSMITTER
HOUSE ID
SWITCH SETTING FOR ALL
DEVICES EXCEPT 5716
5727 KEYPAD
DEVICE
ID
DIP SWITCH POSITION
1 2 3 4 5
1 UP UP UP UP —
2 UP UP UP — UP
3 UP UP UP — —
4 UP UP — UP UP
5 UP UP — UP —
6 UP UP — — UP
7 UP UP — — —
8 UP — UP UP UP
9 UP — UP UP —
10 UP — UP — UP
11 UP — UP — —
12 UP — — UP UP
13 UP — — UP —
14 UP — — — UP
15 UP — — — —
16 — UP UP UP UP
17 — UP UP UP —
18 — UP UP — UP
19 — UP UP — —
20 — UP — UP UP
21 — UP — UP —
22 — UP — — UP
23 — UP — — —
24 — — UP UP UP
25 — — UP UP —
26 — — UP — UP
27 — — UP — —
28 — — — UP UP
29 — — — UP —
30 — — — — UP
31 — — — — —
BIT
VALUE:
16 8 4 2 1
DIP
SIDE
VIEW (UP)
SIDE
VIEW (UP)
SIDE
VIEW (UP)
SIDE
VIEW
(DN)
5701 PANIC TRANSMITTER
POS.6 UP= XMTR ID 62
DN= XMTR ID 63
DIP
XMTR ID
FIXED AT
“00”
XMTR ID
(48 SHOWN)
XMTR
ID
DIP SWITCH POSITION
6 7 8
48 UP UP UP
49 UP UP —
50 UP — UP
51 UP — —
52 — UP UP
53 — UP —
54 — — UP
55 — — —
XMTR
ID
DIP SWITCH POSITION
6 7 8 9
32 UP UP UP UP
33 UP UP UP —
34 UP UP — UP
35 UP UP — —
36 UP — UP UP
37 UP — UP —
38 UP — — UP
39 UP — — —
40 — UP UP UP
41 — UP UP —
42 — UP — UP
43 — UP — —
44 — — UP UP
45 — — UP —
46 — — — UP
47 — — — —
}
DIP
HOUSE ID (1 SHOWN)
UP = PULSE COUNT
— = INST. MODE
XMTR ID
(32 SHOWN)
}
MIRROR DIP
XMTR
ID
DIP SWITCH POSITION
6 7 8 9 10 11
1 UP UP UP UP UP —
2 UP UP UP UP — UP
3 UP UP UP UP — —
4 UP UP UP — UP UP
5 UP UP UP — UP —
6 UP UP UP — — UP
7 UP UP UP — — —
8 UP UP — UP UP UP
9 UP UP — UP UP —
10 UP UP — UP — UP
11 UP UP — UP — —
12 UP UP — — UP UP
13 UP UP — — UP —
14 UP UP — — — UP
15 UP UP — — — —
16 UP — UP UP UP UP
17 UP — UP UP UP —
18 UP — UP UP — UP
19 UP — UP UP — —
20 UP — UP — UP UP
21 UP — UP — UP —
22 UP — UP — — UP
23 UP — UP — — —
24 UP — — UP UP UP
25 UP — — UP UP —
26 UP — — UP — UP
27 UP — — UP — —
28 UP — — — UP UP
29 UP — — — UP —
30 UP — — — — UP
31 UP — — — — —
32 — UP UP UP UP UP
BIT
VALUE:
32 16 8 4 2 1
XMTR
ID
DIP SWITCH POSITION
6 7 8 9 10 11
33 — UP UP UP UP —
34 — UP UP UP — UP
35 — UP UP UP — —
36 — UP UP — UP UP
37 — UP UP — UP —
38 — UP UP — — UP
39 — UP UP — — —
40 — UP — UP UP UP
41 — UP — UP UP —
42 — UP — UP — UP
43 — UP — UP — —
44 — UP — — UP UP
45 — UP — — UP —
46 — UP — — — UP
47 — UP — — — —
48 — — UP UP UP UP
49 — — U UP UP —
50 — — UP UP — UP
51 — — UP UP — —
52 — — UP — UP UP
53 — — UP — UP —
54 — — UP — — UP
55 — — UP — — —
56 — — — UP UP UP
57 — — — UP UP —
58 — — — UP — UP
59 — — — UP — —
60 — — — — UP UP
61 — — — — UP —
62 — — — — — UP
63 — — — — — —
BIT
VALUE
32 16 8 4 2 1
5715
UNIVERSAL TRANSMITTER
5711/5711WM
DOOR/WINDOW TRANSMITTER
1 2 3 4 5 6 7 8 9 10 11 12
UP
DN
XMTR ID
(33 SHOWN)
}
POS.12: UP = N.O.
— = N.C
(Avoid ID 32-37 with N.O.)
SIDE
VIEW
(DN)
1 2
}
POS.1: UP = NORMAL RESPONSE
DN = FAST RESPONSE
POS. 2: UP = NO COVER TAMPER
DN = COVER TAMPER (use N.C. setting)
DIP DIP
TERMINAL
BLOCK
DIP
HOUSE ID (1 SHOWN)
HOUSE
ID
DIP SWITCH POSITION
5 4 3 2 1
1 — UP UP UP UP
2 UP — UP UP UP
3 — — UP UP UP
4 UP UP — UP UP
5 — UP — UP UP
6 UP — — UP UP
7 — — — UP UP
8 UP UP UP — UP
9 — UP UP — UP
10 UP — UP — UP
11 — — UP — UP
12 UP UP — — UP
13 — UP — — UP
14 UP — — — UP
15 — — — — UP
16 UP UP UP UP —
17 — UP UP UP —
18 UP — UP UP —
19 — — UP UP —
20 UP UP — UP —
21 — UP — UP —
22 UP — — UP —
23 — — — UP —
24 UP UP UP — —
25 —— UP UP — —
26 UP — UP — —
27 — — UP — —
28 UP UP — — —
29 — UP — — —
30 UP — — — —
31 — — — — —
BIT
VALUE:
1 2 4 8 16
TRANSMITTER
ID
DIP SWITCH POSITION
6 5 4 3 2 1
1 — UP UP UP UP UP
2 UP — UP UP UP UP
3 — — UP UP UP UP
4 UP UP — UP UP UP
5 — UP — UP UP UP
6 UP — — UP UP UP
7 — — — UP UP UP
8 UP UP UP — UP UP
9 — UP UP — UP UP
10 UP — UP — UP UP
11 — — UP — UP UP
12 UP UP — — UP UP
13 — UP — — UP UP
14 UP — — — UP UP
15 — — — — UP UP
16 UP UP UP UP — UP
17 — UP UP UP — UP
18 UP — UP UP — UP
19 — — UP UP — UP
20 UP UP — UP — UP
21 — UP — UP — UP
22 UP — — UP — UP
23 — — — UP — UP
24 UP UP UP — — UP
25 — UP UP — — UP
26 UP — UP — — UP
27 — — UP — — UP
28 UP UP — — — UP
29 — UP — — — UP
30 UP — — — — UP
31 — — — — — UP
32 UP UP UP UP UP —
33 — UP UP UP UP —
34 UP — UP UP UP —
35 — — UP UP UP —
36 UP UP — UP UP —
37 — UP — UP UP —
38 UP — — UP UP —
39 — — — UP UP —
40 UP UP UP — UP —
41 — UP UP — UP —
42 UP — UP — UP —
43 — — UP — UP —
44 UP UP — — UP —
45 — UP — — UP —
46 UP — — — UP —
47 — — — — UP —
48 UP UP UP UP — —
49 — UP UP UP — —
50 UP — UP UP — —
51 — — UP UP — —
52 UP UP — UP — —
53 — UP — UP — —
54 UP — — UP — —
55 — — — UP — —
56 UP UP UP — — —
57 — UP UP — — —
58 UP — UP — — —
59 — — UP — — —
60 UP UP — — — —
61 — UP — — — —
62 UP — — — — —
63 — — — — — —
BIT
VALUE:
1 2 4 8 16 32
6 5 4 3 2 1
UP
DN
POS. 6: UP = N.O.
DN = N.C.
UP
SW3
6 5 4 3 2 1
XMTR ID (33 SHOWN)
HOUSE ID (1 SHOWN)
UP
SW4
SIDE
VIEW (UP)
DIP
DIP
SW4
SW3 TERMINALS
5716 DOOR/WINDOW TRANSMITTER
IMPORTANT
SET SWITCHES WITH
BATTERY REMOVED
For 5700 series transmitters not shown in this table, refer to the instructions accompanying each transmitter.
DIP SWITCH TABLES FOR 5700 SERIES WIRELESS DEVICES
