Control panel – Grizzly G9744Z User Manual
Page 9
G9744Z Metal Cutting Bandsaw
-7-
Control Panel

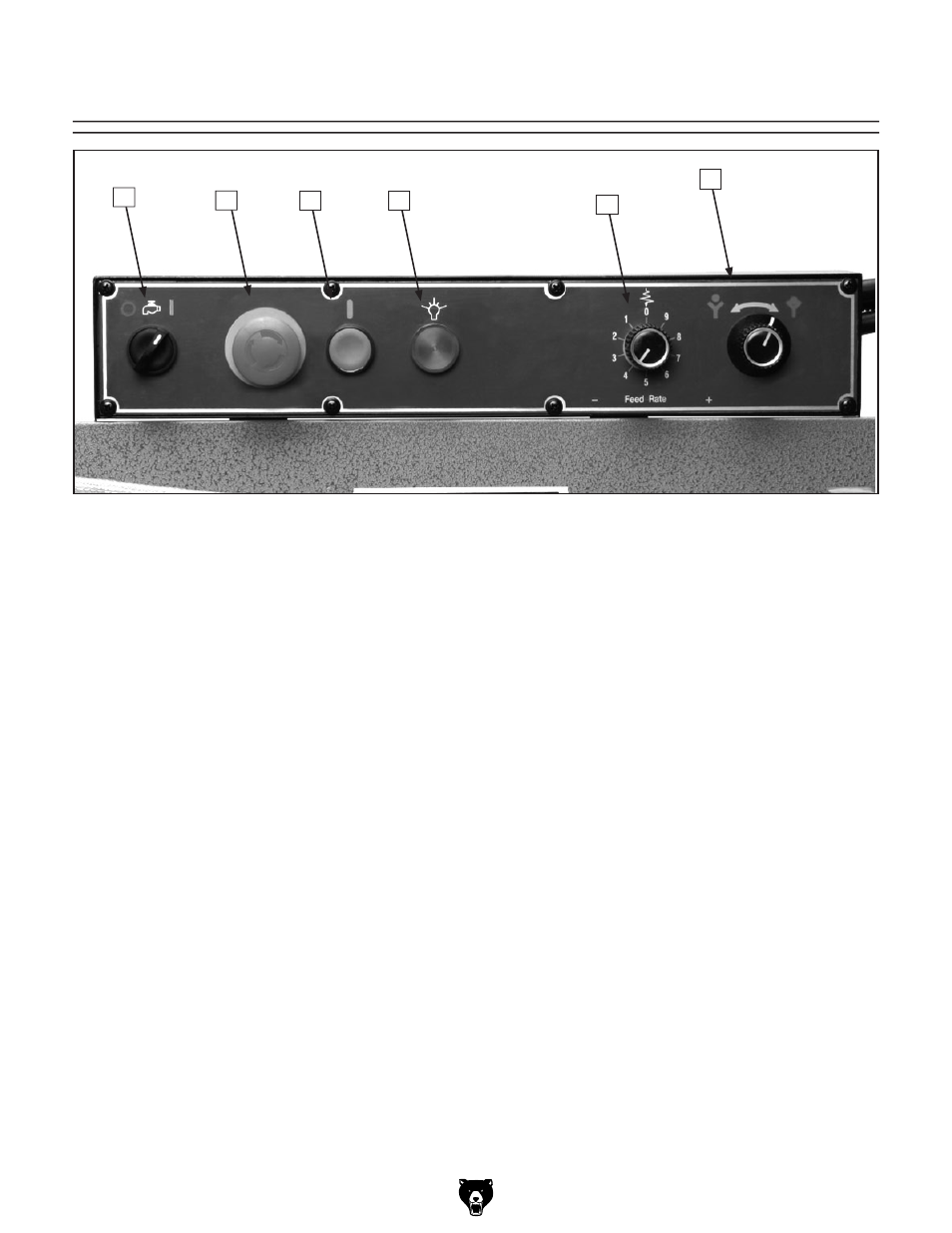

Figure 2. G9744Z control panel.
A
B
C
D
E
F
A. Coolant Pump Switch: Turns the coolant
pump
ON.
B. EMERGENCY STOP/OFF Button: Interrupts
power to the system and turns the motor
OFF. Twist the button until it pops out to re-
energize the system. Also works as a stan-
dard OFF button.
Note: The bandsaw has an automatic shut-
off (limit switch) that turns the motor and
coolant pump
OFF at the bottom of the cut.
C. START Button: Turns the motor ON.
D. Power Light: When lit, indicates that system
is energized and machine is ready to oper-
ate.
E. Feed Rate Dial: Fine tunes the feed rate by
controlling the hydraulic valve. Range is from
0 (slowest) to 9 (fastest).
F. Feed Control Knob: Turning the knob to the
left lowers the bow at the feed rate you have
set. Turning the knob to the right locks the
bow in position.
