G9744Z Metal Cutting Bandsaw

-39-

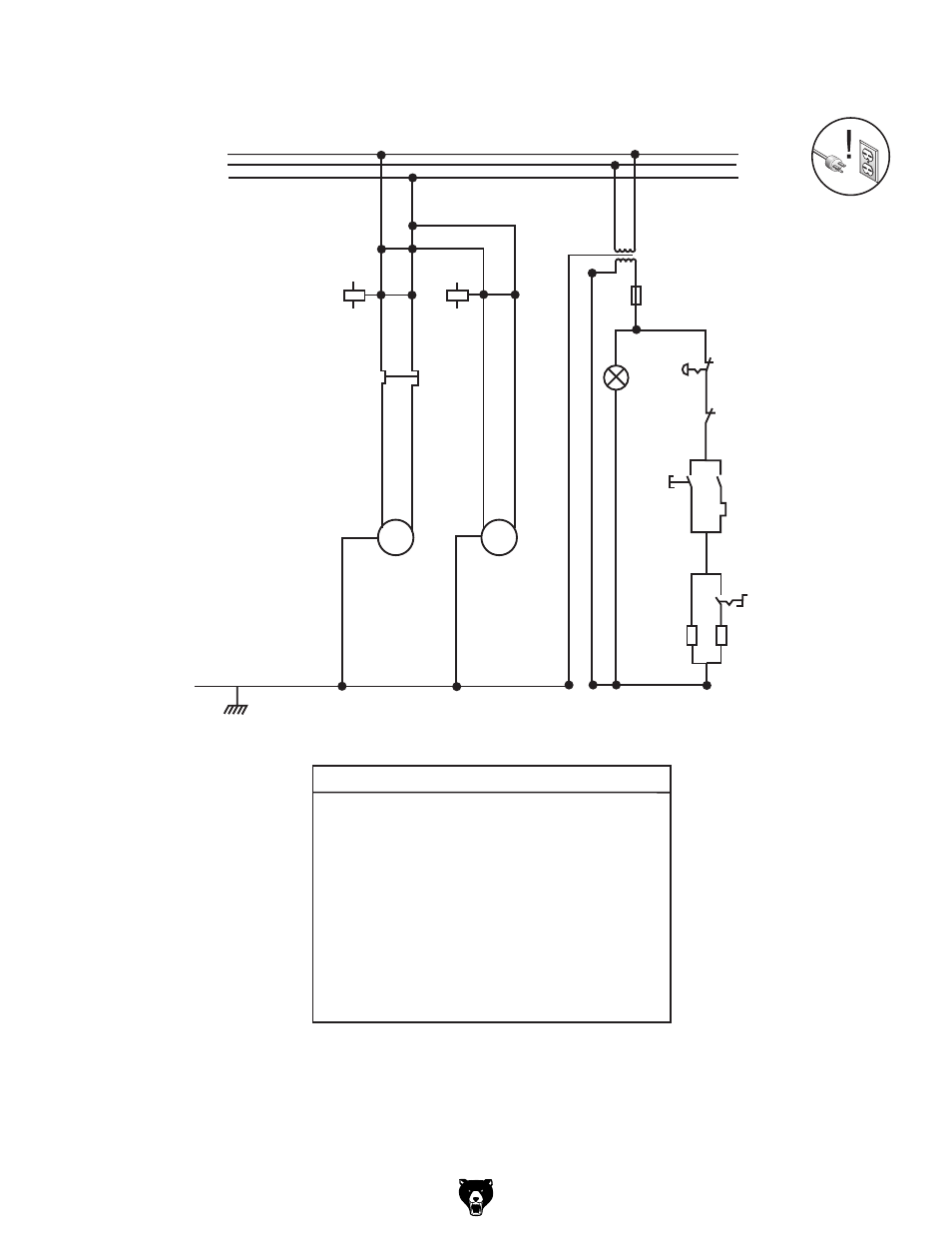

Model G9744Z 220V Wiring Diagram

��

��

��

��

��

�

�

�

��

��

�

��

��

��

��

��

��

�

�

�

��

��

��

��

��

��

�

�

�
��

��

�

�

��
��

��
��

�

��

��

��

��

LEGEND
M = Motor
KM1 = Contactor Main Motor
KM2 = Pump Motor Relay
KM1 = Thermal Relay Main Motor
L = Indicator Lamp
SB1 = Emergency Stop Button
SB3 = Start Button
SB4 = Pump Motor Switch
SQ1 = Limit Switch
TC = Transformer for Control System (24V)
FU2A = Fuse
