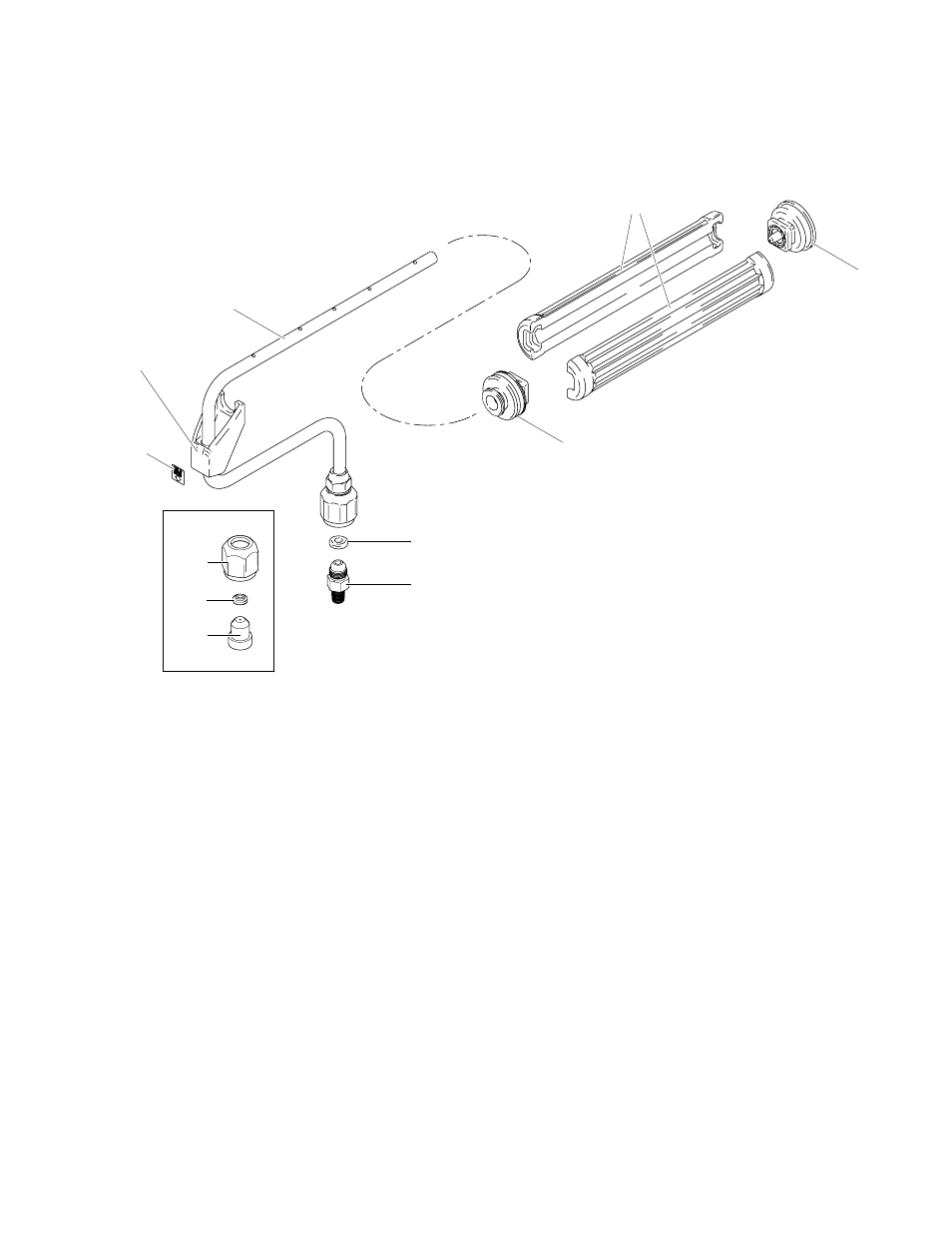

Parts
309322D 3
Parts
2
4
3 3
13
1
12
10
5
14
15
16
Ref. Part Description Qty.
1 FRAME, roller 1
2 245999 CAP, end 1
3 15B065 DIFFUSER, roller 2
4 246277 CAP, end (includes seal, retainer and
o-ring)
1
5 197106 CLIP, roller 1
10 111612 ADAPTER, tube (Model 244623 only) 1
12 115524 GASKET (Model 244623 only) 1
13 198804 LABEL, instruction 1
14 197117 NUT, retaining (Model 244271 only) 1
15 115524 GASKET (Model 244271 only) 1
16 197118 FITTING, swivel (Model 244271 only) 1
Wetted Parts: FKM, nylon, plated steel, POM,
polyethylene, stainless steel
Roller Covers:
107589 9 in. x 3/8 in.
107590 9 in. x 1/2 in.
107591 9 in. x 3/4 in.
107592 9 in. x 1-1/4 in.
