Grizzly 12" Cold Cut Saw G0682 - Manual (Page 30)

-28-
g0682 12" Cold Cut saw (mfg. since 12/10)

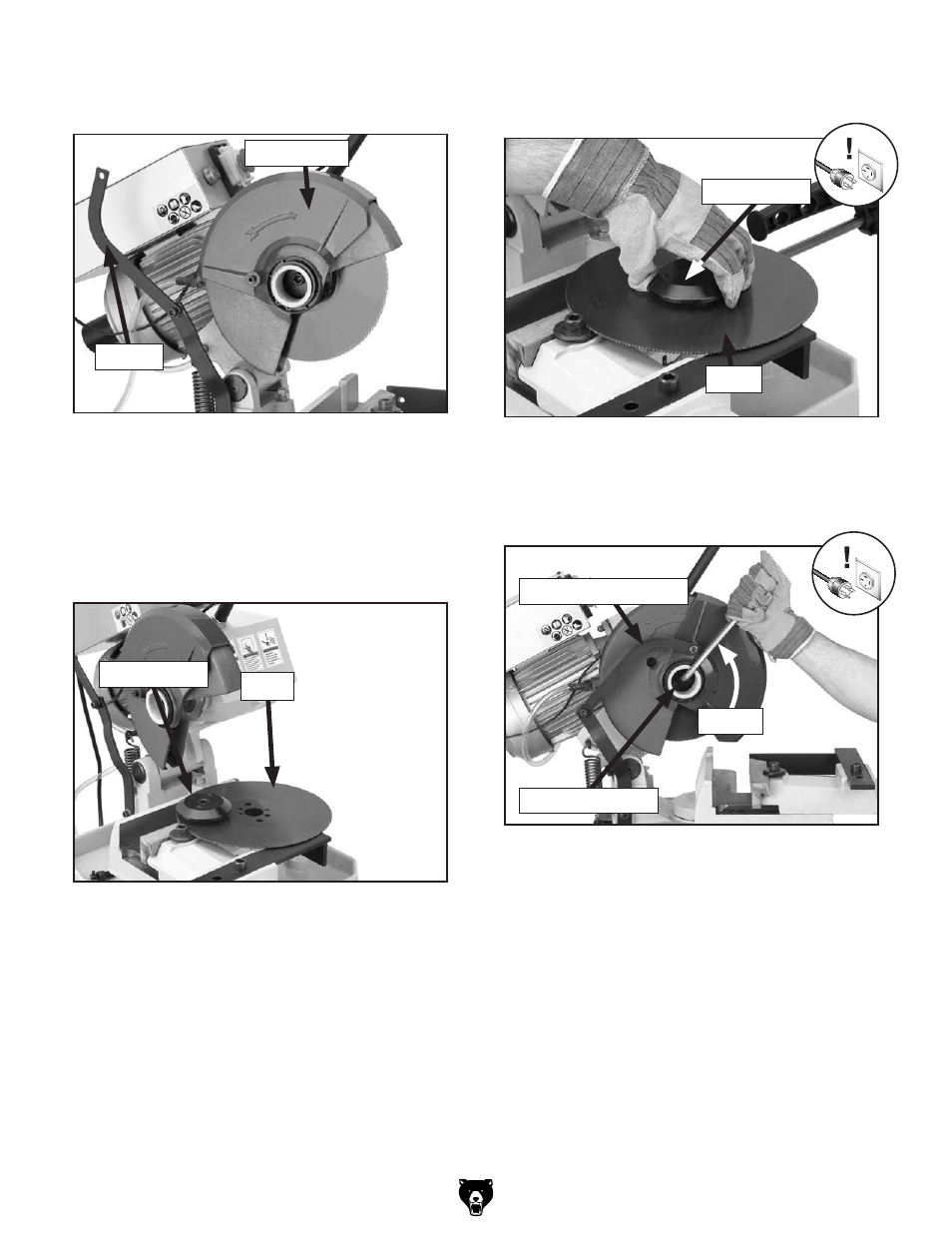

7. place the blade and flange over the arbor,
then thread and tighten the left-hand thread
arbor cap screw (
figure 46).
figure 46. tightening blade.
8. lower the blade guide and reconnect the
blade guard linkage with the cap screw.
arbor Cap screw
blade guard linkage
tighten
6. place the blade flange on the new blade, as
shown in figure 45.
figure 45. installing new blade.
4. remove the arbor cap screw. it has left-hand
threads and loosens when turned clockwise
(see
figure 43).
5. remove the blade and blade flange (figure
44).
figure 44. blade removed.
blade Flange
blade
blade Flange
blade
3. rotate the blade guard and linkage out of the
way, as shown in figure 43.
figure 43. exposing blade.
blade guard
linkage
