-22-
g0682 12" Cold Cut saw (mfg. since 12/10)
Auxiliary Stability bracket
the auxiliary stability bracket can be placed in
two positions. depending on the angle of the cut,
the bracket may have to be moved to provide
adequate clearance for the blade.
To adjust the auxiliary stability bracket:
1. disCoNNeCt saW From poWer!
2. loosen and remove the cap screw and wash-
er shown in figure 28.
vise Quick Release Lever
For repetitive cutting procedures that require
frequent clamping and un-clamping of the same
size stock, the model g0682 is equipped with a
quick release lever that allows the workpiece to be
released, repositioned, then quickly re-clamped.
To use the quick release lever:
1. disCoNNeCt saW From poWer!
2. rotate the lever clockwise to the upward
position, as shown in figure 29.
3. open the vise wide enough to accept the
workpiece, then place the workpiece into the
vise.
4. Close the vise to within approximately 1 /
8
" of
the workpiece, as shown in figure 30.
figure 29. Quick release lever.
Quick release lever
figure 30. Closing vise.
1 ⁄
8
" gap
vise Jaw
Workpiece
3. remove the auxiliary stability bracket and
replace it in the position that does not inter-
fere with the range of motion of the saw
blade.
Note: At angles greater than approximately
35° away from the vise, it is necessary to
remove the auxiliary stability bracket entire-
ly.

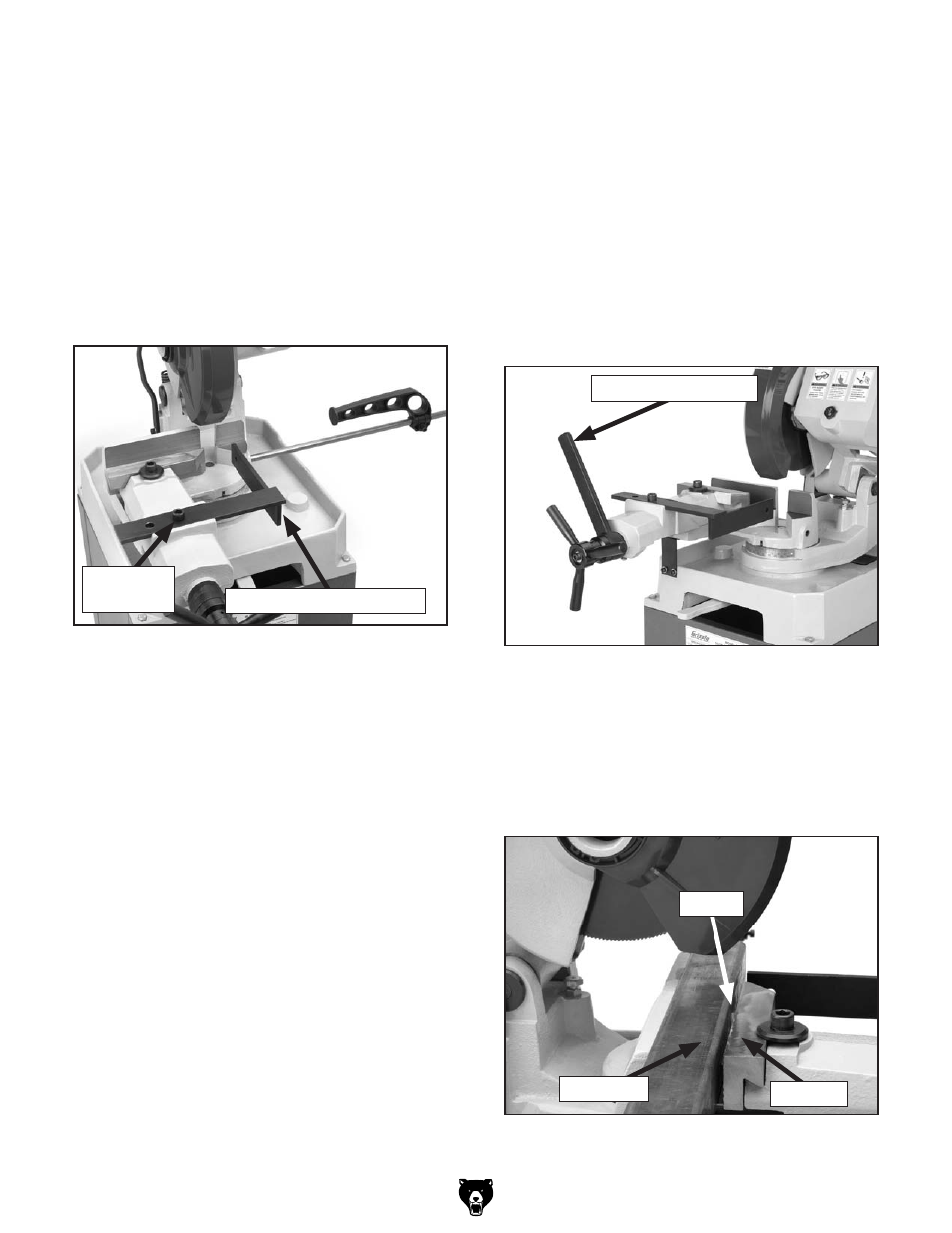

figure 28. auxiliary stability bracket.
Cap screw
& Washer auxiliary stability bracket
