User’s Manual 83
Manageable 8/9-Port Switch
Step 7:
Click Update Setting. A confirmation window appears. Close the confirmation window.

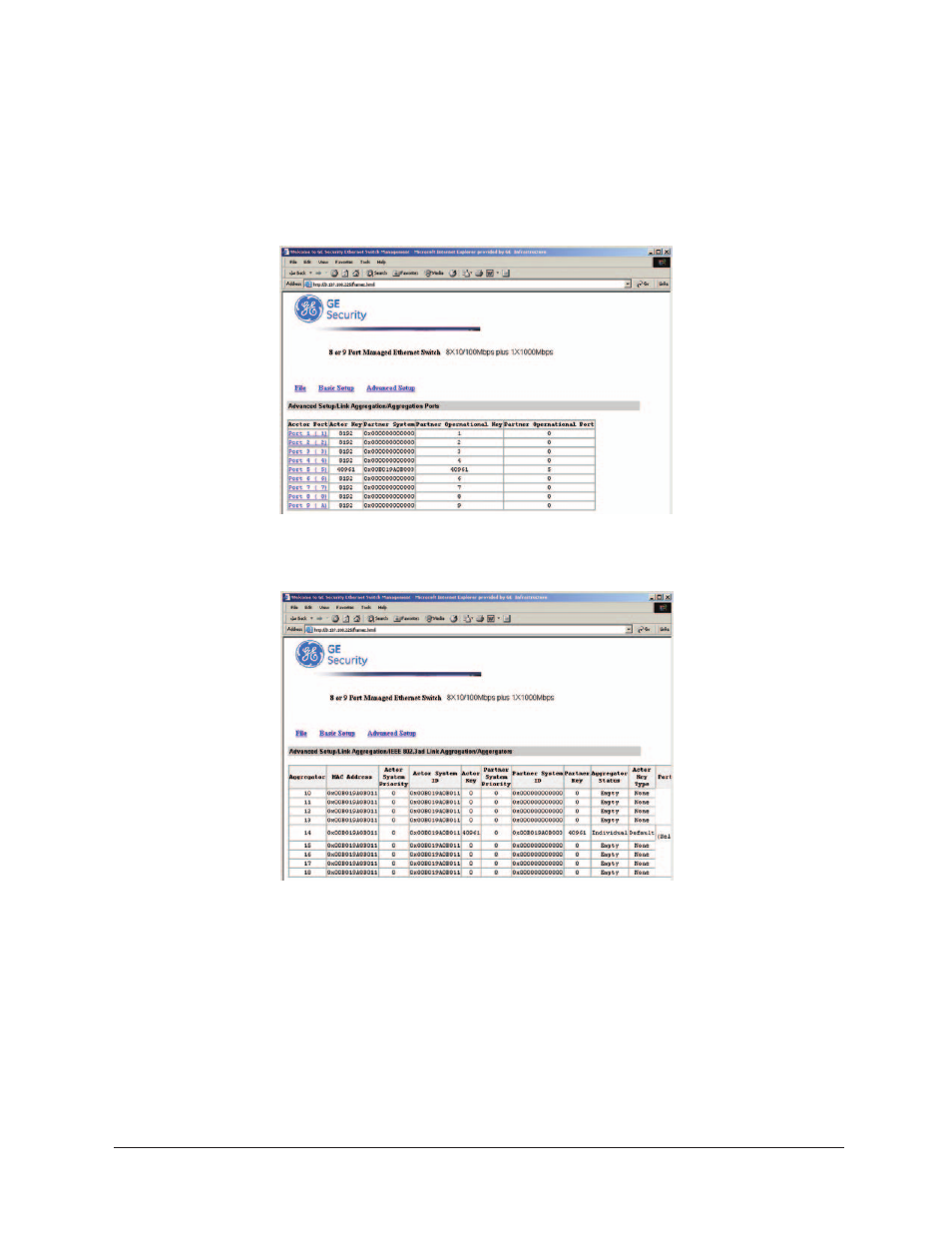

Step 1: Port Setting
To view and/or change the Spanning Tree configurations by port, click the
Advanced Setup button, point to Link Aggregation in the selection menu, and click Aggregation
Port Settings.
Step 3:
For Port Priority, click in the text box and type a decimal number between 0 and 255.
A low value gives the port a greater likelihood of becoming a Root port.
Step 4:
For Path Cost, click in the text box and type a decimal number as a new path cost value.
Step 5:
For Port Status, specify whether the port is up or down by clicking the drop-down list.
Step 6:
Click Update Setting. A confirmation window appears. Close the confirmation window.
Step 2:
In the Port column, click the port whose Aggregation information you want to view.
