On/Off Switch Replacement
120 Vac
Pressure
Transducer
ON/OFF
Switch
Power
Plug
Potentiometer
from Motor
Red (+)

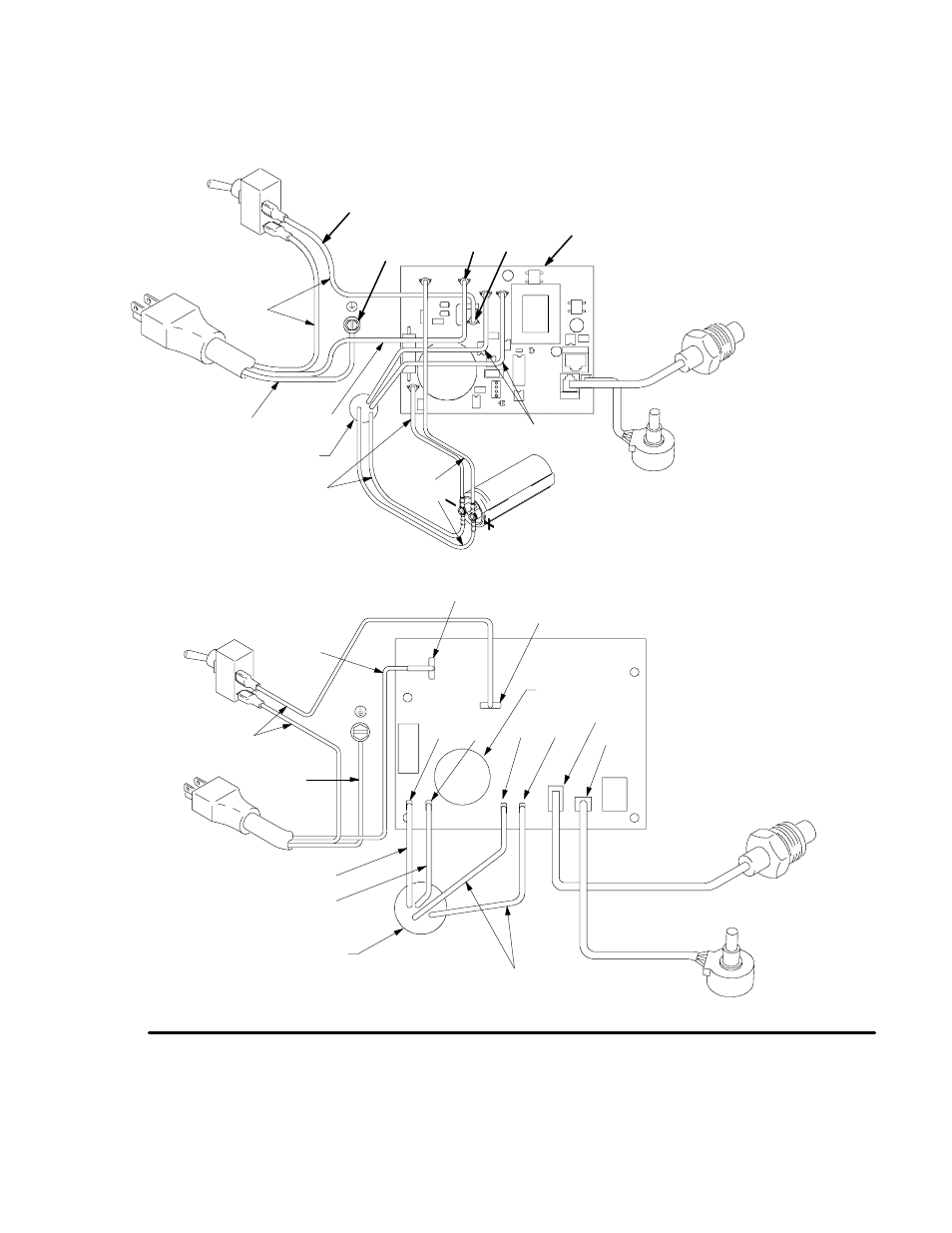

Wiring Diagram
Yellow
White
Black
Black (--)
Capacitor
TI0060
Green
Fig. 11
L2 L1
60
35
34
(Capacitor on Motor)
Wiring Diagram
(Capacitor on PC board)
232900, A, B
232901, A
233797, A
233815, A
232900, C, D, E,
232901, B, C, D
233797, B, C, D
233815, B, C, D
Pressure
Transducer
ON/OFF
Switch
Power
Plug
Potentiometer
from Motor
Capacitor
Black
Green
White
Yellow
Black (--)
Red (+)
N
L
M+ M-- TO1 TO2
J7
J8
ti2159a
