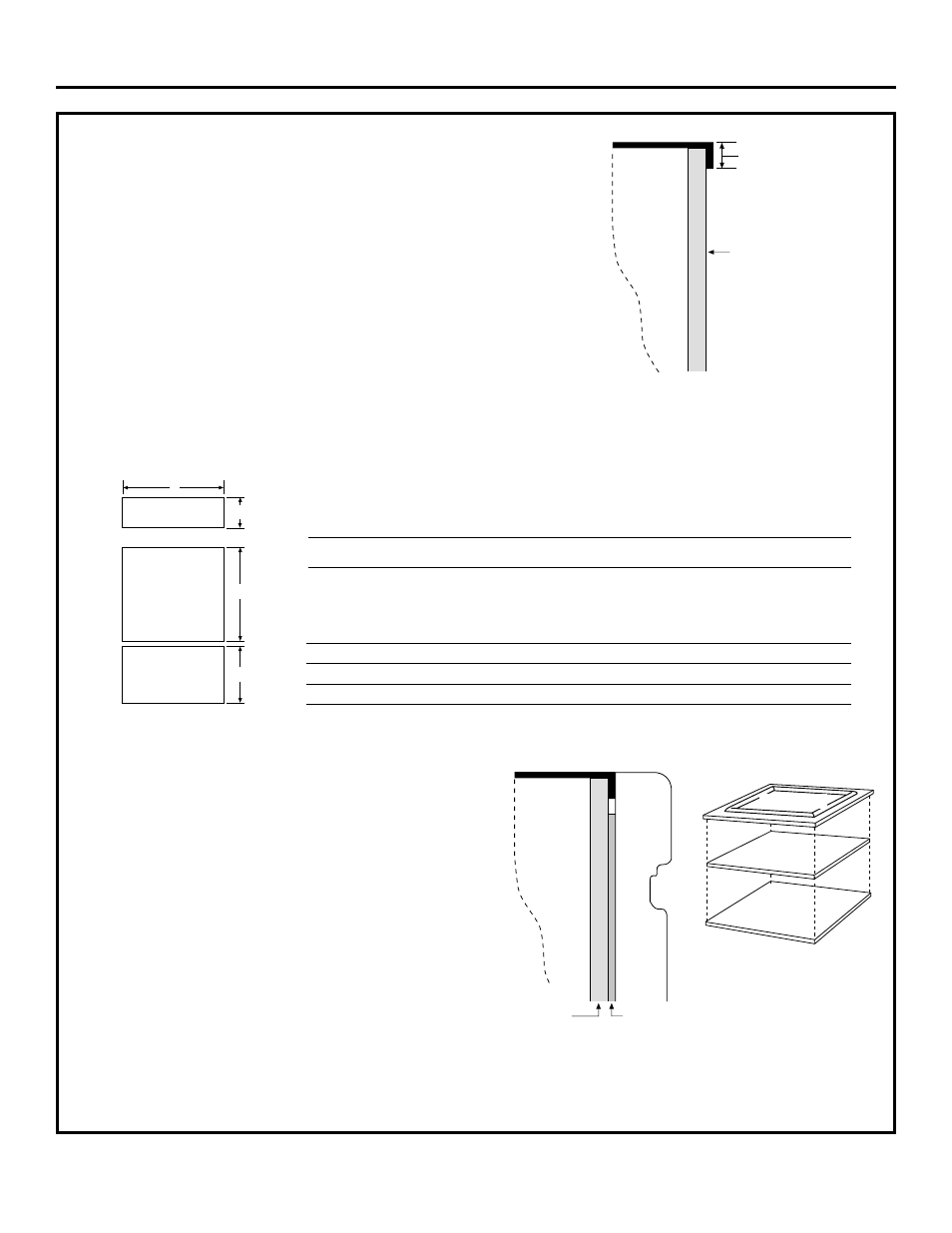

1/4" FRAMED PANEL DIMENSIONS
7
If you choose to install framed panels, they must be
cut to the dimensions shown. The panels will slide
into the frame on the door, drawer and grille.
If the custom panel is less than 1/4" thick and if it
fits loosely in the door frame, it can be backed up
with a piece of filler material or foam tape to
improve the fit.
3/4" OVERLAY PANEL DIMENSIONS
For a more custom appearance, overlay panels may be
installed on trimmed models. The overlay panel must
be secured to a 1/4" thick backer panel which slides
into the trim. A spacer panel 0.10" thick must be
placed between the overlay and backer panel.
Assemble the panels with glue and screws.
• Center the spacer panel on the backer panel, left to
right and top to bottom. Secure the panels with glue.
• Center the spacer and backer panel on the overlay
panel and secure with glue and screws. Screws must
be countersunk into the backer panel.
Overlay
Panel
1/4"
Backer
Panel
Door/Drawer
.10 Inch
Spacer
Spacer Panel
Backer Panel
Overlay Panel
Fresh Food
Panel
Freezer Drawer
Panel
D
C
A
B Grille Panel Framed Panel Dimensions
A (Width) B (Grille Height) C (FF Height) D (FZ Height)
1/4" Framed Panel 33-7/8" 8-7/8" 46-1/16" 21-7/8"
Overlay Panel Dimensions
A (Width) B (Grille Height) C (FF Height) D (FZ Height)
1/4" Backer Panel 33-7/8" 8-7/8" 46-1/16" 21-7/8"
0.10" Spacer Panel 32-1/2" 7-5/8" 44-11/16" 20-1/2"
3/4" Overlay Panel 34-1/8" 9" 46-5/16" 22"
NOTE: Left-to-right offset is not always equal to
top-to-bottom offset.
1/4"
Panel
Door
5/16"
Trim
Reveal
IMPORTANT NOTE: Maximum total panel
weight:
• Fresh food door panel – 58 lbs.
• Freezer drawer panel – 28 lbs.
• Grille Panel – 11 lbs.
IMPORTANT NOTE: Maximum
total weight for the assembled
panels:
• Fresh food door panel – 58 lbs.
• Freezer drawer panel – 28 lbs.
• Grille Panel – 11 lbs.
Design Guide
