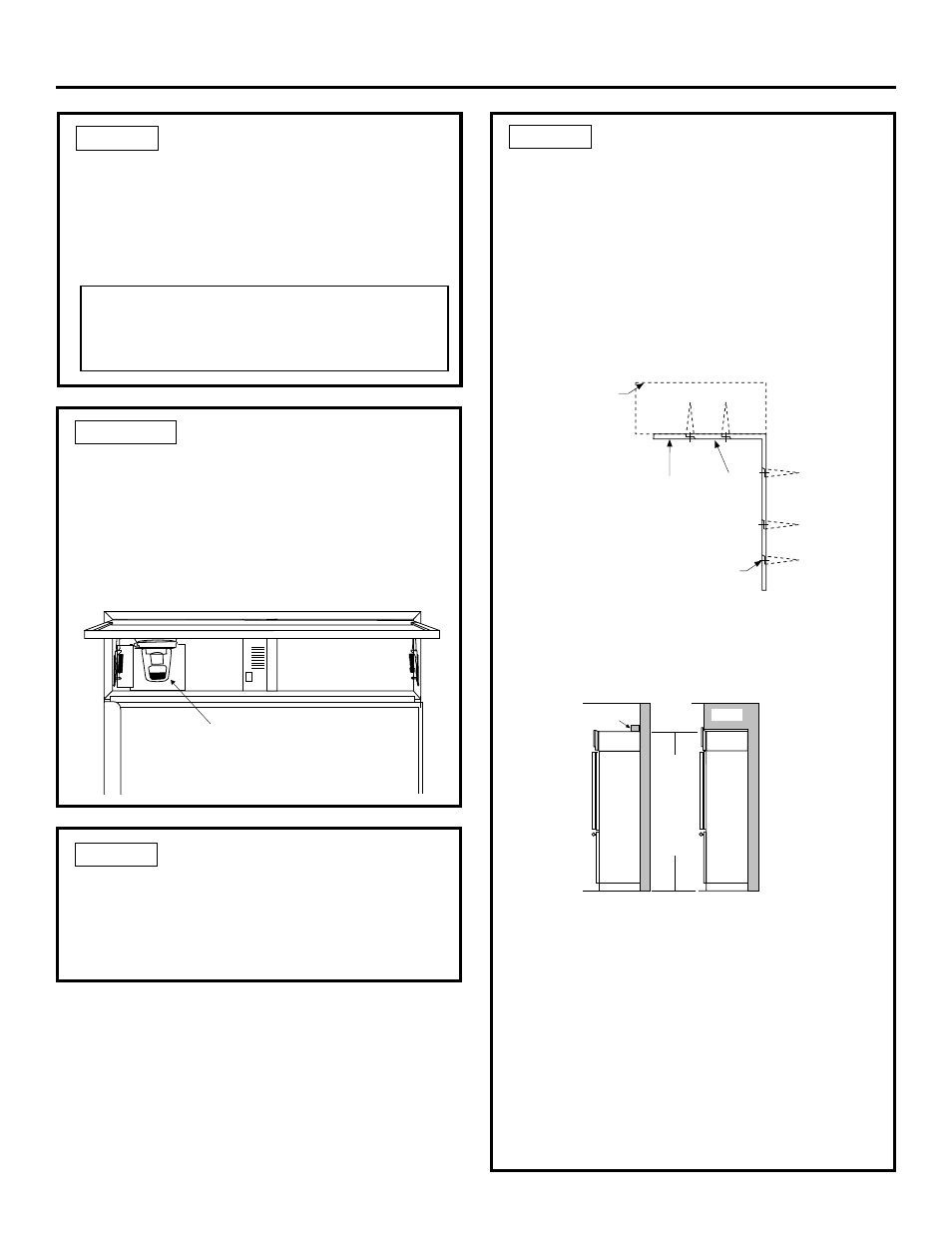

STEP 2A WATER LINE INSTALLATION
WITH A REVERSE OSMOSIS SYSTEM
Skip this step when not using an RO System
If the water supply to the refrigerator is from a Reverse
Osmosis Water System use the refrigerator’s filter bypass
plug. Using the refrigerator’s water filtration cartridge
with the RO filter can result in hollow ice cubes.
STEP 3 INSTALL SIDE PANELS
Skip this step when not using side panels
If you are using 1/4" side panels, they should be inserted
into the case trim. Fasten the panels to the refrigerator
with stick-on hook and loop fastener strips before setting
refrigerator in place.
STEP 4 INSTALL ANTI-TIP BRACKETS
WARNING:
ANTI-TIP PRECAUTIONS
The refrigerator is top-heavy and must be secured to prevent
the possibility of tipping forward.
ATTENTION:
PRECAUTIONS CONTRE LES
BASCULEMENTS
Le réfrigérateur est beaucoup plus lourd en haut et il faut le
maintenir en place pour éviter la possibilité de son basculement
vers l'avant.
• Cut a 2" x 4" x 35" block and secure the block to the
mounting brackets provided using #12 or #14 wood screws.
• Secure the bracket with wood block to the back wall so that it
is 84" (or your installation height) from the finished floor.
Use #12 or #14 wood screws. See illustration.
• Screws must penetrate at least one inch into vertical wall
studs.
• Before pushing the refrigerator into the opening, plug
the power cord into the receptacle. Open the grille panel
and reach into the opening at the back to grasp the power
cord. Pull the power cord into the opening as you push the
refrigerator back.
• Gently push refrigerator into the opening with hands against
front corners.
Important Note: When the refrigerator is installed under a soffit or if there is not
enough height for this method of security, brackets cannot be used. Proceed to step 5
to level the refrigerator and then to step 6 to secure refrigerator to cabinets. The
refrigerator must be secured to prevent tipping.
Filter Bypass Plug
Mounting
Bracket
2 x 4 Cut
35" Length
Installation
Height
From Floor
Screws Mounted into
Vertical Wall Studs
STEP 2 (continued)
• Turn on the main water supply and flush debris.
Run about a quart of water through the tubing into
a bucket. Shut off water supply at the shut-off valve.
NOTE: Saddle type shut-off valves are included in many
water supply kits. Before purchasing, make sure a saddle
type valve complies with your local plumbing codes.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves are
illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
Installation Instructions
