STEP 7 ADJUST DOOR SWING
NOTE: This refrigerator has a 2-position door stop.
When space does not allow the door to swing open
fully to 130°, you may change the door swing to a 90°
opening. Skip this step if door opening is satisfactory
for your installation situation.
• Lift the grille panel to access the wire cover trim.
• Remove screws on both sides of the wire cover trim
and lift off.
• Use pliers to unscrew door stop and reinstall into
the 90° position.
STEP 8 INSTALL GRILLE PANEL
• Raise the grill panel to stop position.
13
• Reinstall the wire cover trim.

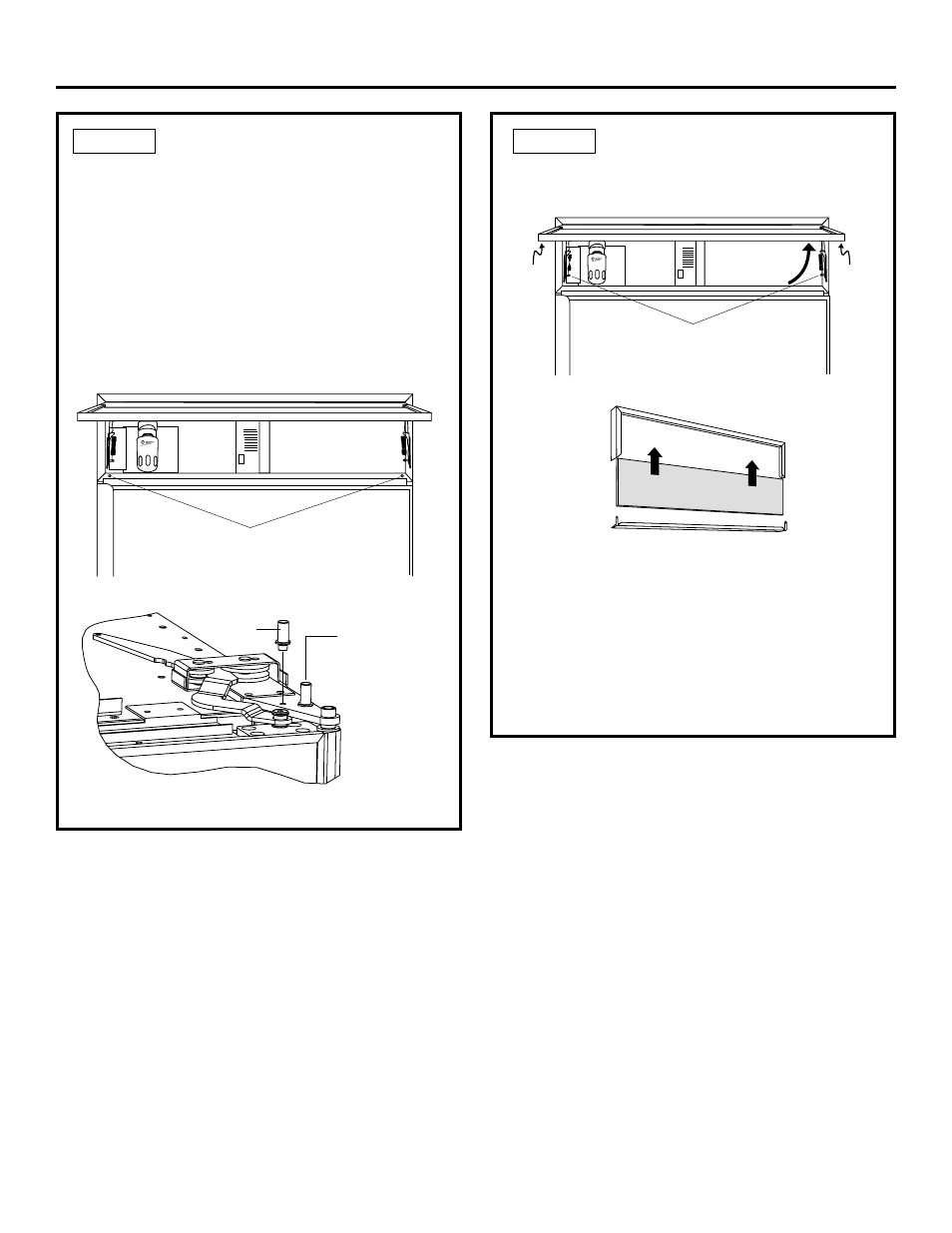

Pin Location
as Shipped
130
° Door Swing
Pin Location For
90 ° Door
Swing
Remove
Wire Cover
Trim Screws
Raise
Grille
Panel
Adjust Nut Below
Spring to Accommodate
Panel Weight
Loosen
Side
Trim
Screw
Loosen
Side
Trim
Screw
• Loose screws on side trim behind frame. Remove
bottom trim.
• Slide panel over the metal baker panel and into the
trim.
• If necessary, tap with a wood block until panel slips
under the top trim piece.
• Reassemble bottom trim. Tighten screws.
• Adjust the hinge spring to accommodate the panel
weight, if necessary.
