36" Frame to
Frame Width
*84" From
Floor to
Top Frame
35"
Case Width
*83-1/2"
at
Rear
25-3/4" Framed Models
25-3/4" Stainless Steel Models
Case Depth
Depth Including Handles:
26-7/8" Framed Models
27-3/4" Stainless Steel Models

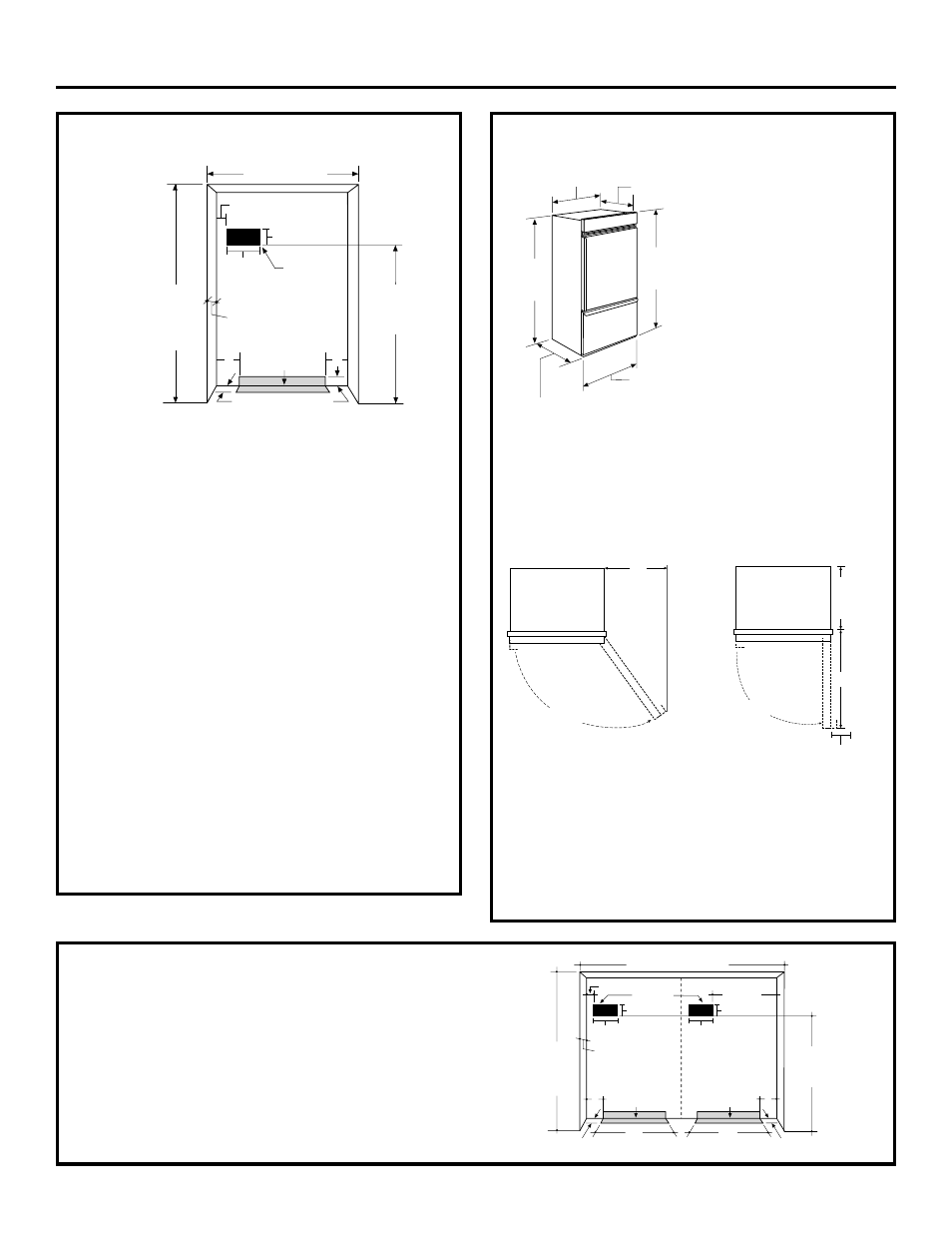

THE INSTALLATION SPACE
Water And Electrical Locations
Electrical and water supply must be located as shown.
The cutout depth must be 24"
The refrigerator will project forward, slightly beyond
adjacent cabinetry, depending on your installation.
Cutout depth beneath a soffit:
When installed beneath a soffit, the soffit cannot
exceed the 24" installation depth shown. The top case
trim overlaps the bottom of the soffit.
Additional Specifications
• A 115 volt 60Hz., 15 or 20 amp power supply is
required. An individual properly grounded branch
circuit or circuit breaker is recommended. Install
a properly grounded 3-prong electrical receptacle
recessed into the back wall. Electrical must be
located on rear wall as shown.
Note: GFI (ground fault interrupter) is not
recommended.
• Water line can enter the opening through the
floor or back wall. The water line should be 1/4"
O.D. copper tubing or GE SmartConnect
™ kit
between the cold water line and water connection
location, long enough to extend to the front of the
refrigerator. Installation of an easily accessible
shut-off valve in the water line is required.
DIMENSIONS AND CLEARANCES
* Shipping height. The
refrigerator can be adjusted
to fit into a cutout that is
83-1/2" min. to 84-1/2" max.
height. Note that the top
case trim at the front is
1/2" higher and will overlap
upper cabinetry or soffit.
Use leveling legs and wheels
for a maximum 1” height
adjustment.
Product Clearances
These refrigerators are equipped with a 2-position
door stop. The factory set 130° door swing can be
adjusted to 90° if clearance to adjacent cabinets or
walls is restricted.
130° Door Swing 90° Door Swing
3
23-7/8"
Behind
Frame
36-3/4"
4" Minimum
to Wall
90 °
6"
Wall View
Electrical
Area
84-1/2" max
83-1/2" min
Finished
Opening
75" From
Floor to Bottom
of Electrical Area
10"
5"
3 1/2"
5"
3 1/2"
Water Supply
24" Cutout Depth
35-1/2"
Finished Width
2-5/16"
25"
Minimum
to Wall
130 °
ZUG2, ZUGSS2 Unified Grille Panel Kit
• If you are installing two refrigerators, side by side,
the installation space must be 71-1/2" wide.
Note: Additional cutout width may be required when side panels
are used. Add side panel thickness to the finished cutout to
calculate rough-in width.
• The water and electrical locations for each product
must be located as shown.
• A separate 115V, 60Hz., 15 or 20 amp power supply
is recommended for each product.
2-5/16"
75" From
Floor to Bottom
of Electrical Area
84-1/2" max
83-1/2" min
Finished
Opening
71-1/2" Finished Width
Electrical
5"
3-1/2"
24" Cutout
Depth
Water Supply
Wall View
24-3/16"
26"
6"
10"
6"
10"
Water Supply
26"
5"
3-1/2"
The finished
cutout width
must be
35-1/2".
Allow 25" minimum clearance for a full
130° door swing. Allow 15" for pan removal.
4" minimum clearance is required when door swing
is adjusted to 90°. If the 90° door stop position is
used, pan access is maintained, but pan removal is
restricted.
See illustrations pages 4 and 5 to determine door swing
interaction with adjacent cabinets or countertops.
