6
308–333
Installation
KEY
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
S
Y
Pump
Bleed-Type Master Air Valve
(required for pump)
Pump Air Supply Hose
Master AIr Valve (for accessories)
Air Line Filter
Pump Air Regulator
Gun Air Regulator
Fluid Drain Valve (required)
Fluid Suction Hose
Fluid Filter
Gun Fluid Supply Hose
Gun Air Supply Hose
Air-Assisted Airless Spray Gun
Air Line Lubricator
Runaway Valve Location
(for wall mount pumps)
Fluid Intake Elbow
Ground Wire (required; see page 4
for installation instructions.

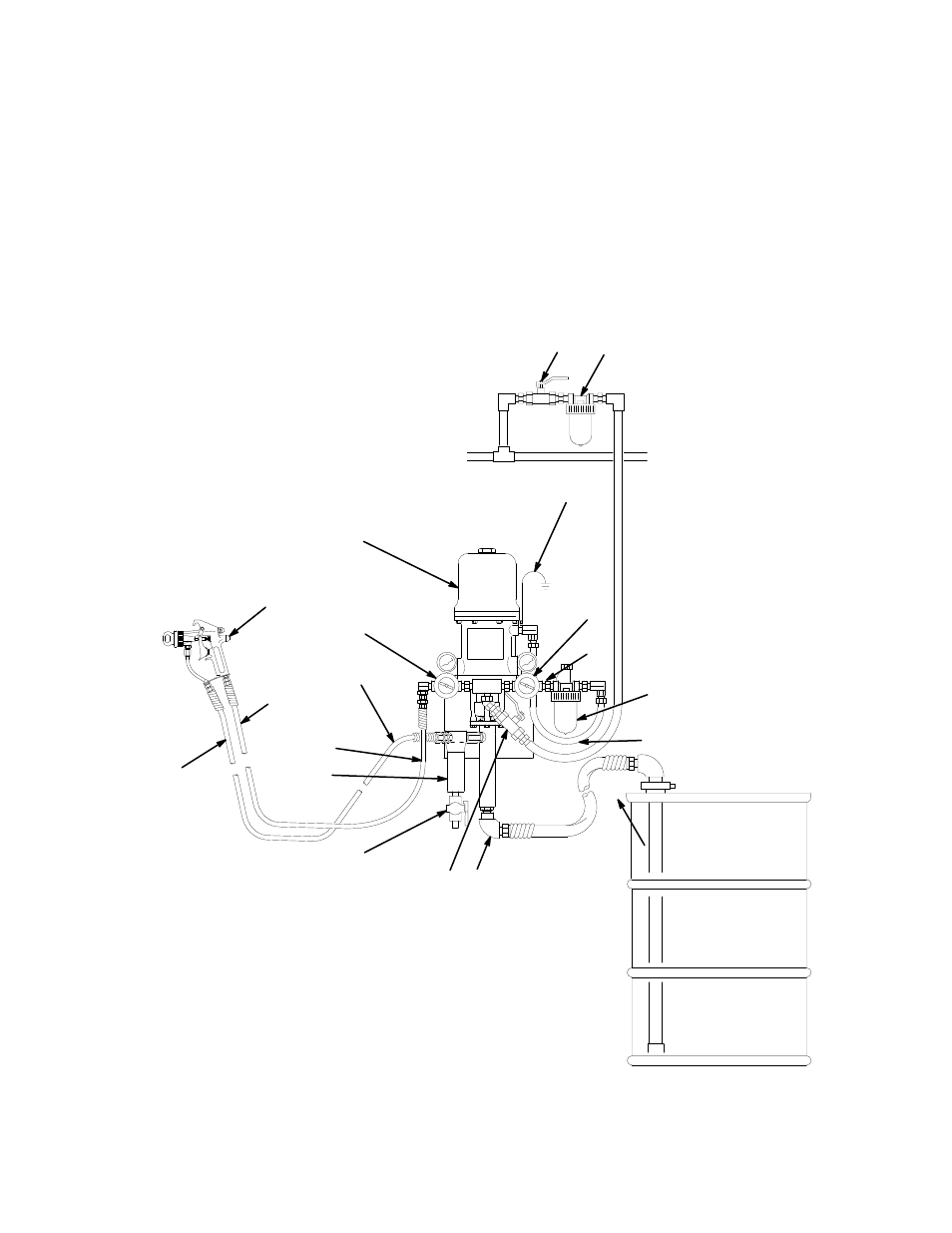

Typical Installation –
Cart-Mount Model Shown
NOTE: Some components shown are
included with the sprayers, depend-
ing on the model. Refer to the parts
list on page 10 for parts included in
your sprayer.
A
B
C
D E
F
G
H
J
K L
L
M
M
N
P
R
Y
S
02819A
