-25-

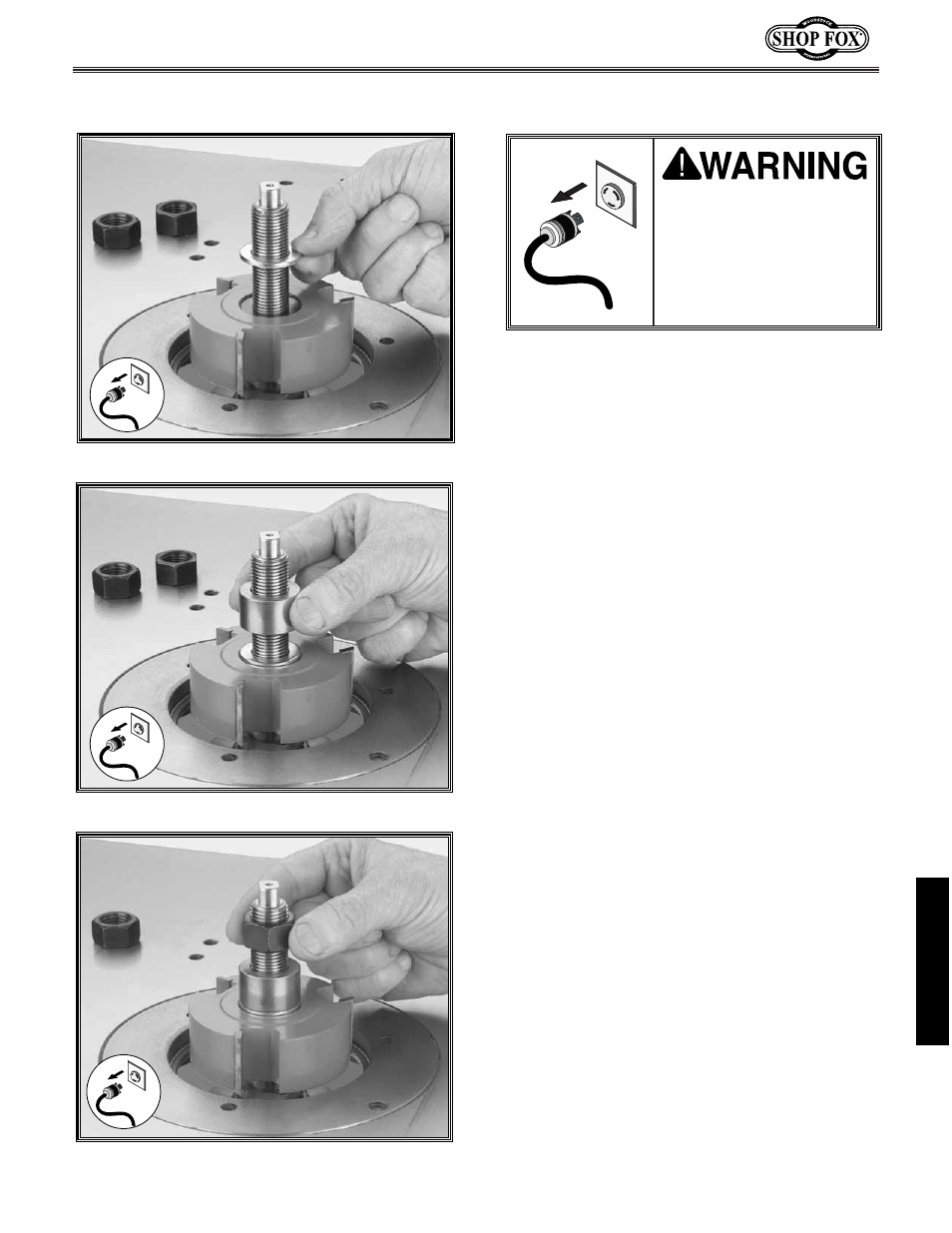

Figure 38. Spindle nut placement.
Figure 37. Collar or spacer placement.
To install a cutter, do these steps:
1. UNPLUG THE SHAPER!
2. Place the bushing (if needed) onto the spindle
for cutter support as shown in Figure 34.
3. Slide the cutter onto the spindle, making
sure the rotation is correct for the specific
application as shown in
Figure 35.
4. Place the spindle washer onto the spindle as
shown in Figure 36.
5. Install spacers or collars if necessary for the
specific application, followed by the nut and
locknut as shown in
Figures 37 and 38.
OPERATIONS
Figure 36. Spindle washer placement.
UNPLUG the power
cord before you do any
assembly, adjustments,
or maintenance tasks!
Otherwise, serious
personal injury to you
or others may occur!
