Page 19

-17-
Fence Alignment
Before shaping, check that the two fence faces
are parallel.
To align the fences so they are parallel with
each other, do these steps:
1. Get a quality straightedge that is long enough
to span the entire length of the fence
assembly.
2. Make sure that the screws that hold the
fence faces to the fence mounts are tight and
secure.
3. Adjust the fence faces so they are in as close
to the same parallel position as possible.
4. Hold the straightedge across both of the
fence faces as shown in
Figure 23.
5. If the fence faces are not parallel, place
shims between the back of the fence pieces
and the face of the fence mounts. With some
trial and error shim adjusting, parallel fence
faces can be achieved.

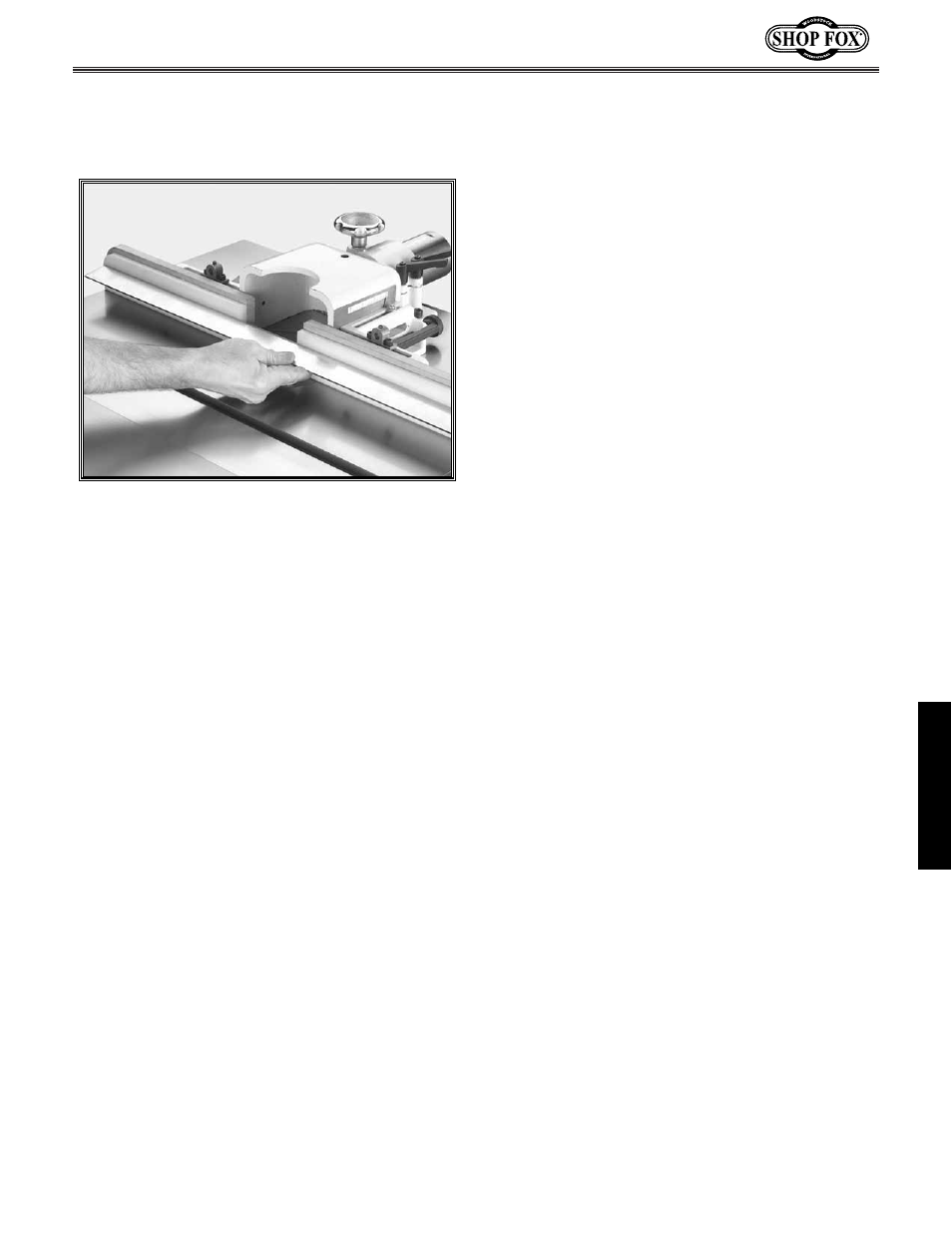

Figure 23. Use straightedge to check fence.
ADJUSTMENTS
