Page 20

-18-
Table Inserts
The table inserts are necessary for the safe
operation of the shaper. Two inserts are provided
allowing for three different opening sizes to be
achieved. Use the smallest-size opening for a
cutter to reduce wood chips falling into the
machine, which could cause flying debris. Using
the smallest-size opening also covers any unused
portion of the bit below the surface of the table,
thus reducing the chance of operator injury.
To adjust the table inserts, do these steps:
1. UNPLUG THE SHAPER!
2. Using a screwdriver, remove the three
Phillips
®
head screws holding the cast iron
insert in the table. See
Figure 25.
3. Using a straightedge as a guide, turn the
barrel-head screws either way until the
insert is flush with the top of the table as
shown in
Figures 24 and 25.
4. Once the entire insert is flush with the table
top, reinsert the three Phillips
®
head screws
and tighten.

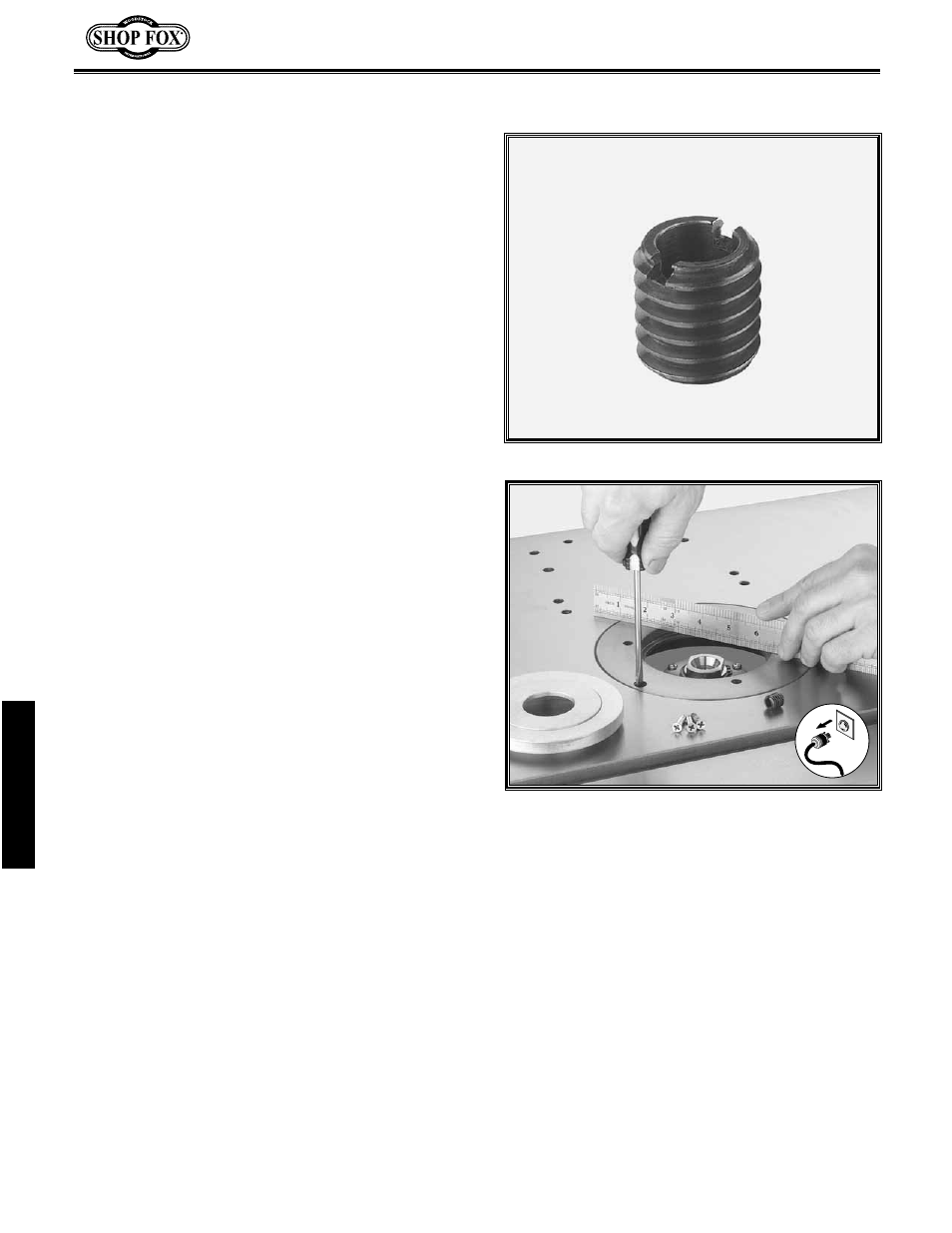

Figure 25. Use a straightedge to make sure
insert is flush with table.
Figure 24. Barrel-head screw.
ADJUSTMENTS
