Grizzly G9003 - Manual (Page 8)

G9003 Portable Planer
-8 -
BLADE INSTALLATION
The Blade must be mounted to the Back
Plate using the Blade Setting Jig. Using
this jig controls how far the blade extends
from the Cutterhead once it is installed.
1. Place the Blade onto the Setting
Jig.
2. Lay the Back Plate onto the top of
the Blade, pushing it up firmly
against the edge of the Jig. See
Figure 4.
Turn the switch off and unplug the
Planer from power before attempting
blade installation or any adjustments.
Serious injury may occur if the unit
should be accidentally started while
installing the blade.
Never operate the Planer with only
one blade installed. This will cause
an imbalance of the rotating cutter-
head and may allow the Planer to go
out of control, possibly causing
injury.

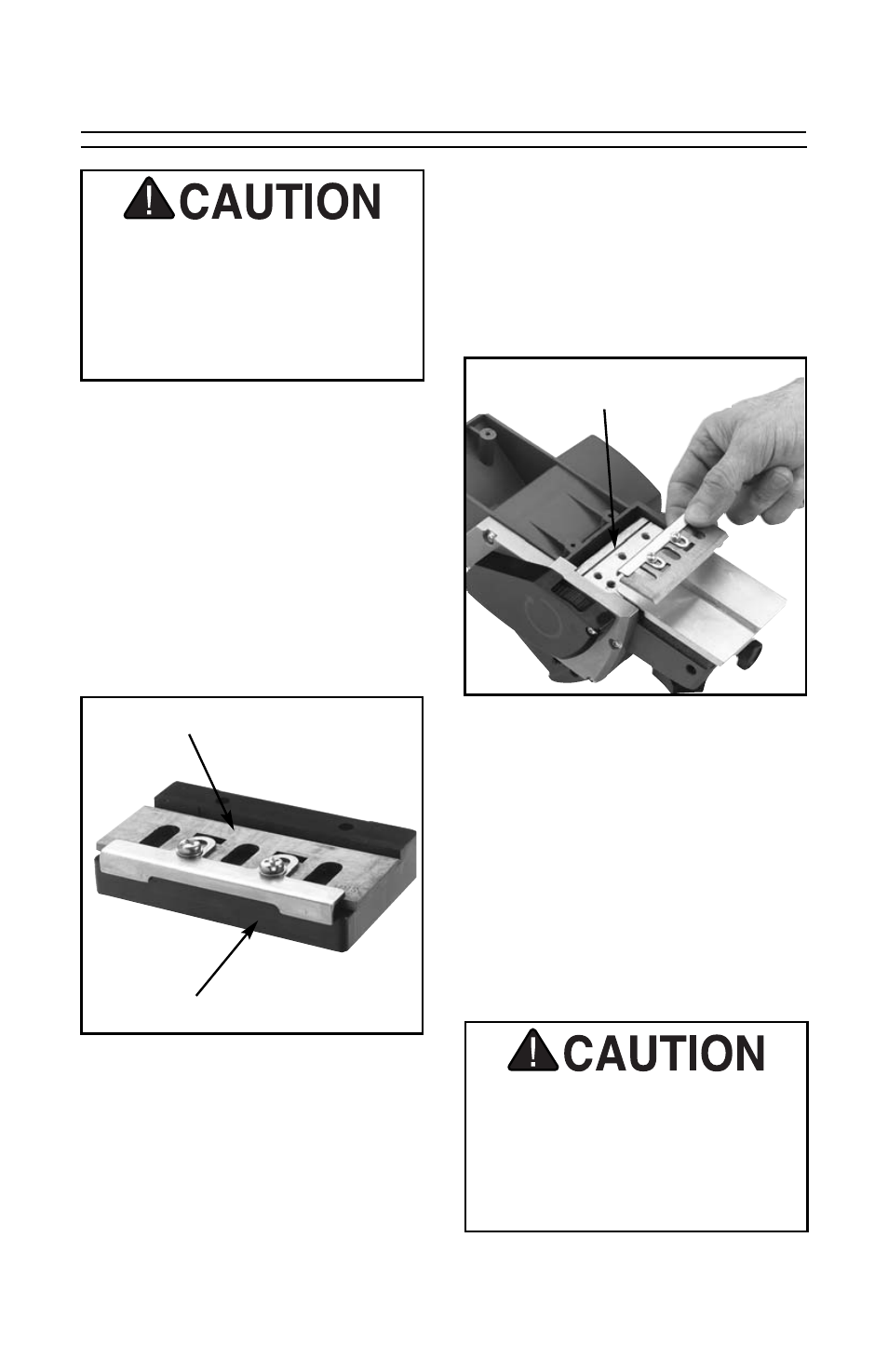

Fig 4. Blade in position on Setting Jig.
Fig 5. Inserting blade assembly on
Cutterhead (Rear Foot removed for clarity).
3. Install two Phillips ® head screws
with washer and lockwasher
through the slots on the Back
Plate into the Blade. Tighten
securely.
4. Set the Blade/Back Plate
Assembly onto the Cutterhead.
Make sure the bottom edge of the
Back Plate is positioned into the
slot on the Cutterhead. See
Figure 5.
5. Set the Blade Holder over the
Blade Assembly so the notches in
the side of the Holder engage the
rear edge of the blade. Install three
hex head bolts and washers, and
tighten with the supplied T-handle
wrench.
6. Repeat the procedure for the other
blade.
Make certain edge of back plate
engages in slot in cutterhead
Blade flush to this edge
Back Plate flush to this edge
