G9003 Portable Planer

-6

-

CONTROL LOCATION

Control Location

Refer to

Figure 1

for the location of the key

components and controls of this Planer.

Become familiar with the controls and the

adjustments before operating the Planer.

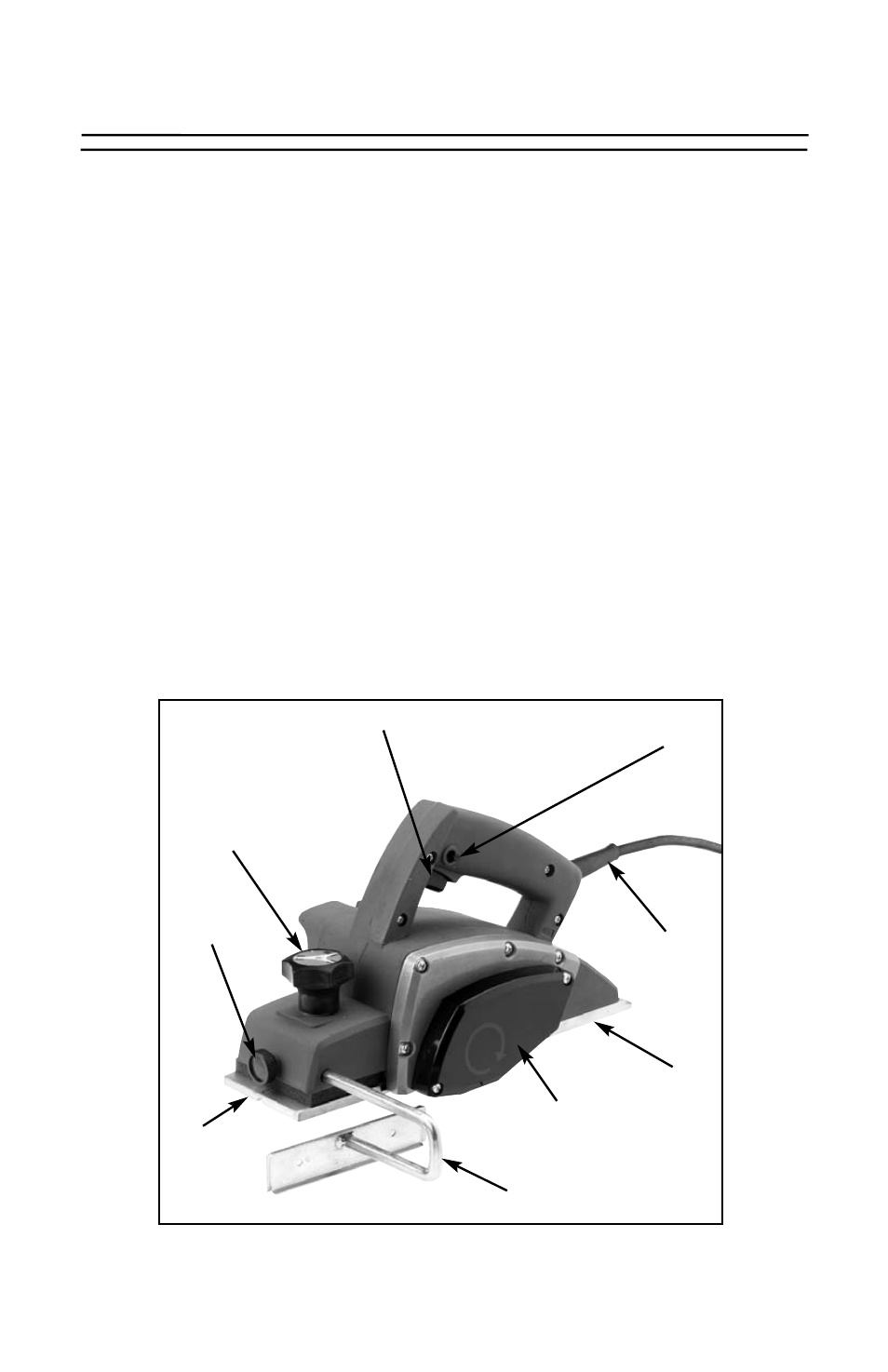

Fig 1.

Location of controls.

ON/OFF Trigger

Power Cord

Belt Cover

Fence

Lock

Front

Foot

Fence

Rear Foot

Trigger Lock

Depth

Adjustment Knob

Specifications

Speed: 15000 RPM

Motor Type: Universal Brush Motor

Motor Power:

1

⁄

2

HP, 110V, 5.0 Amp

Cutterhead: 2 Blades

Maximum Cutting Width: 3

3

⁄

16

"

Maximum Stock Removal/Pass:

1

⁄

32

"

Maximum Rabbet Depth:

11

⁄

32

"

Weight: 5.75 lbs

Accessories Included: Fence, Blade

Removal Wrench, Sharpening Jig, Blade

Setting Jig, Replacement Belt and

Replacement Motor Brushes
