Model H7582 Junior Electric Guitar Kit

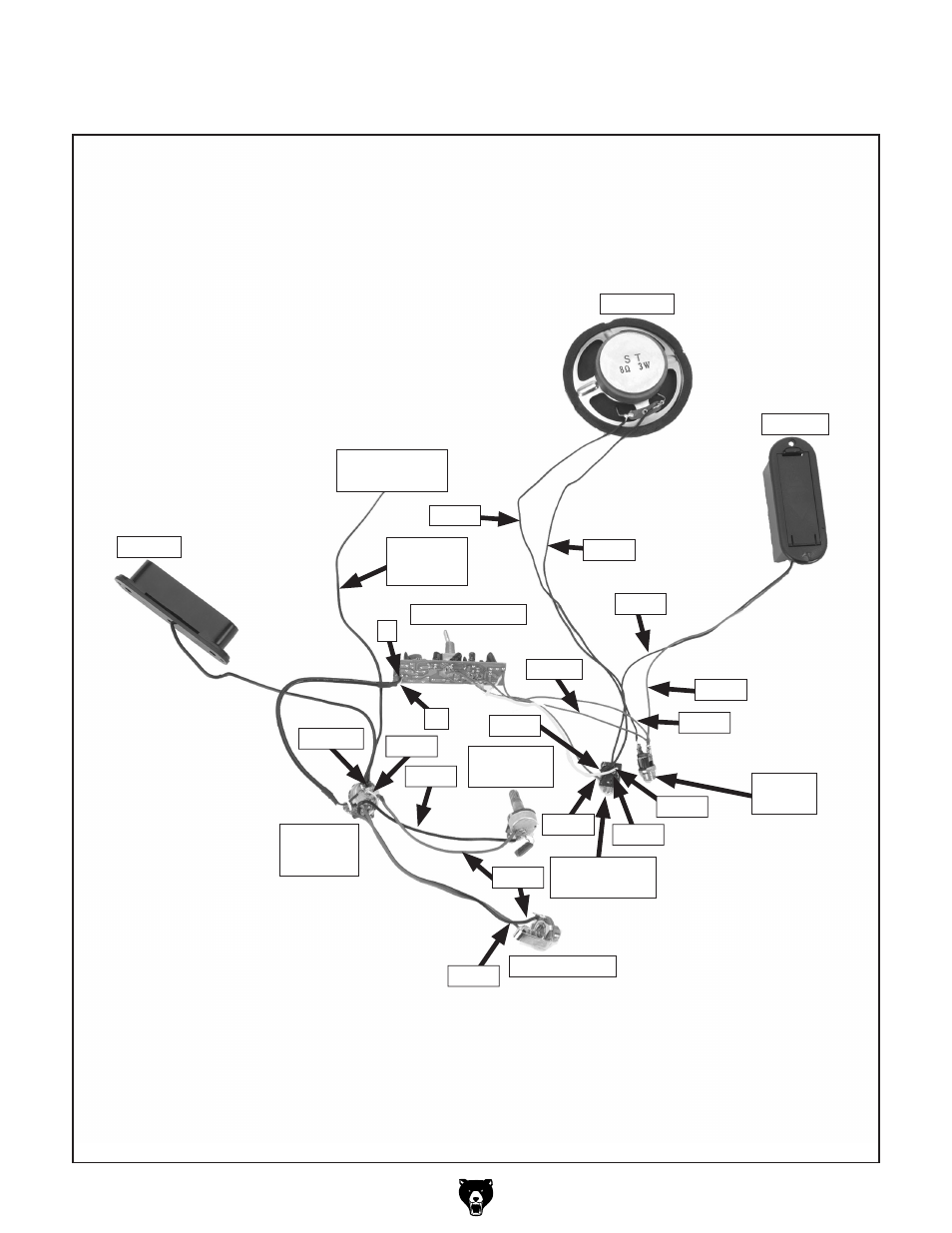

Electrical Components
Bridge
(Not Shown)
Circuit Board
Pickup
Battery
Speaker
Volume
Control
Output Jack
Headphone
Jack
Tone
Control
AC/DC
Jack
Black
(Ground)
B
W
Red
Black
Red
White
Red
Red
Black
Black
Black
Brown
Black
Red
Ground
White
Black
