Model H7582 Junior Electric Guitar Kit
-9-

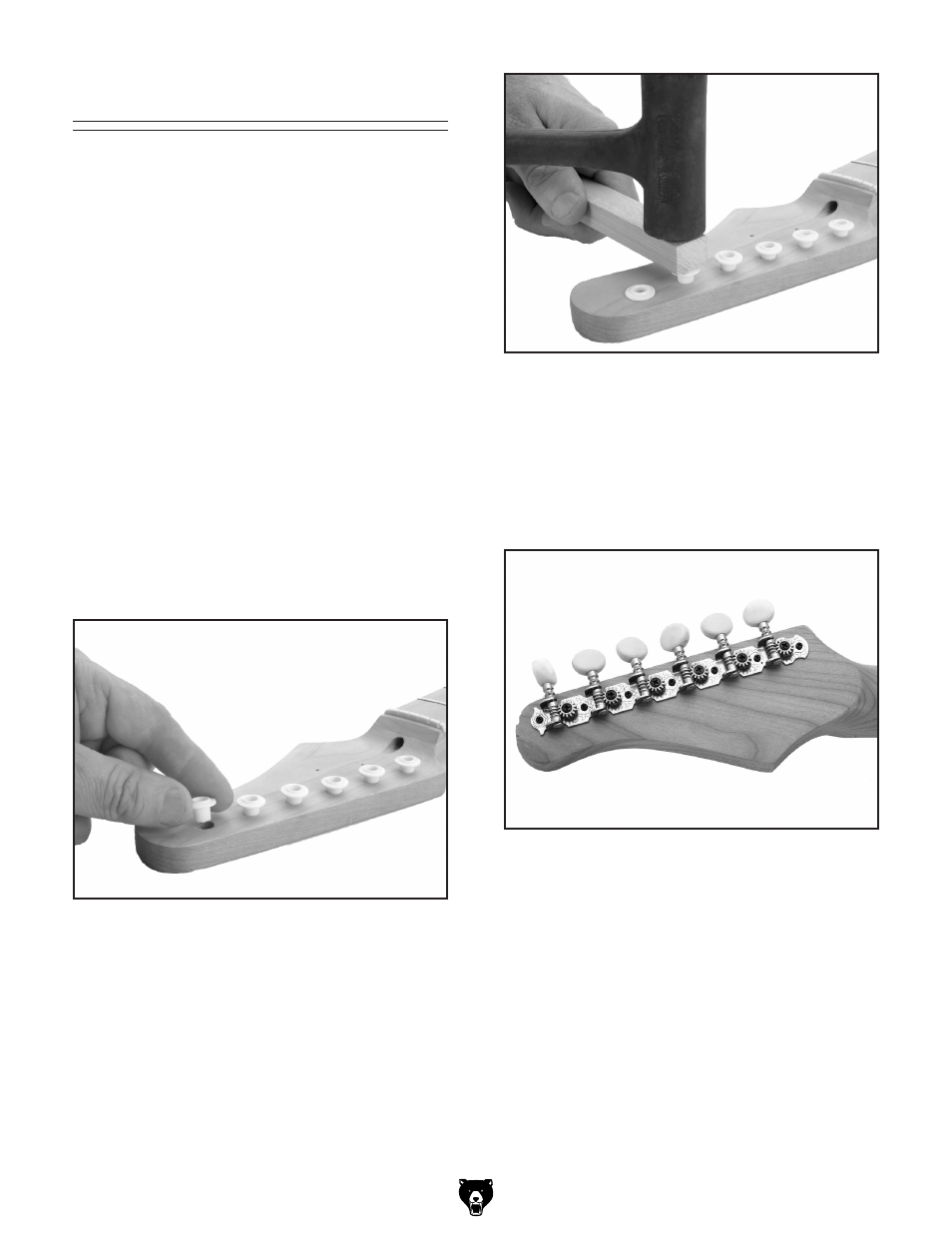

Figure 6. Installing plastic bushings on head-
stock.
Components Needed Qty
Guitar Neck ....................................................... 1
Bushings ............................................................ 6
Tuning Head Plate ............................................. 1
Black Screws #3 x
3 ⁄
8
" ....................................... 7
Wooden Block ................................................... 1
Hammer ............................................................. 1
Peghead Reamer or a Round File (Optional) ... 1
The tuning head plate consists of six machine
heads on a metal plate. The machine heads are
attached to the headstock with bushings and
small screws.
To install the tuners:
1. Place the six bushings into the holes on the
face of the headstock ( Figure 6). The holes
may need to be widened with a peghead
reamer or a round file. DO NOT widen the
holes too much—the bushings should fit
snugly.
Tuners
NEW
NEW
2. Place a wooden block on the bushings and
lightly tap the block with a hammer ( Figure 7)
until the bushings are seated against the face
of the headstock.
3. Slide the machine heads through the bush-
ings from the back face of the headstock.
4. Align the tuning head plate over the mounting
holes and secure with #3 x 3 ⁄
8
" black screws
as shown in Figure 8.
Figure 7. Seating bushings.
Figure 8. Tuning head plate installed correctly.
