-12-
Model H7582 Junior Electric Guitar Kit
Battery Case
To install the battery case:
1. Insert the battery case wires through the left
hole in the battery case mortise and into the
circuit board mortise.
2. Slide the battery case (Figure 13) into the
mortise and secure with two #2 x 1 ⁄
4
" black
screws.

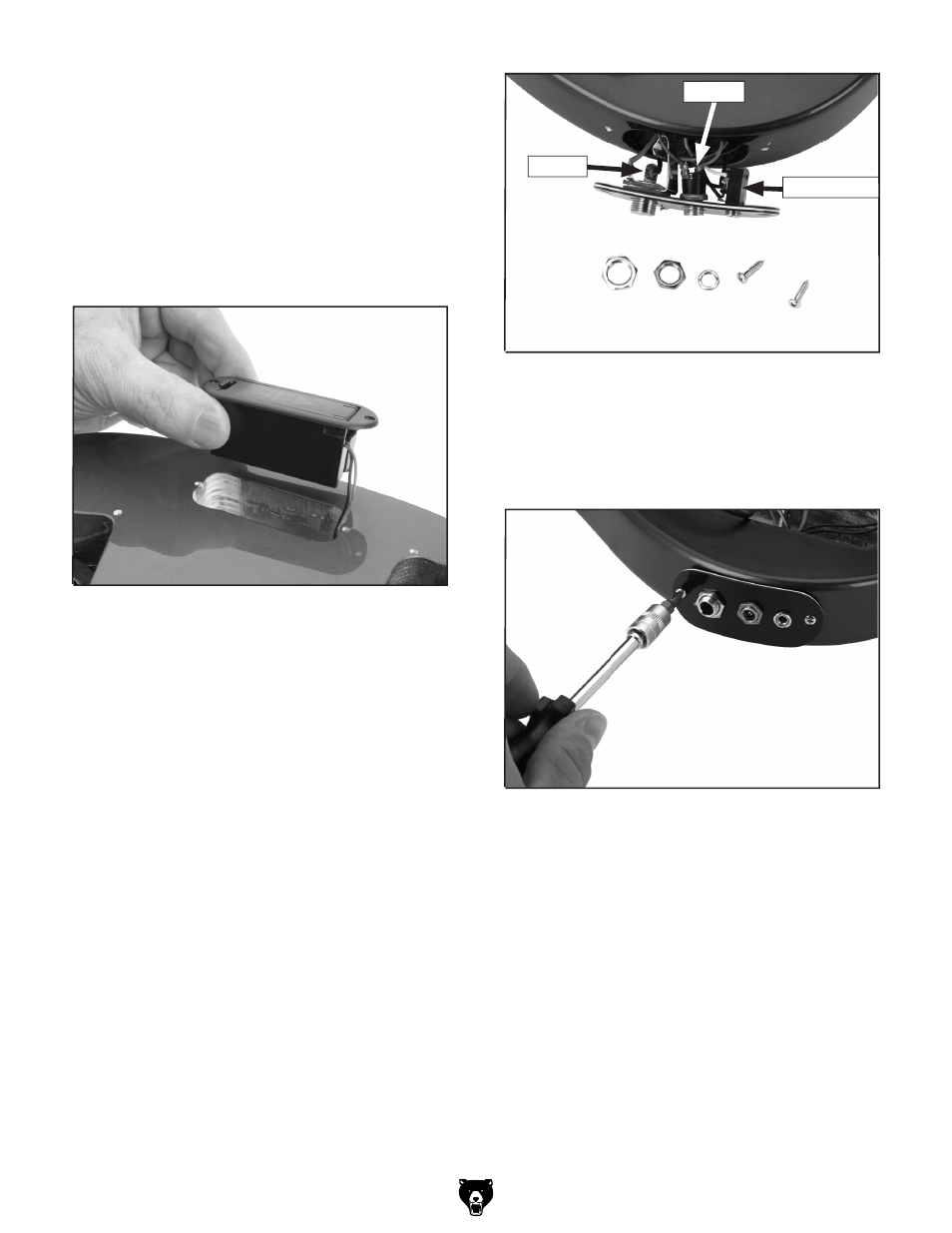

Figure 13. Installing battery case.
Figure 14. Inserting jacks through jack plate.
Figure 15. Securing jack plate.
Headphone, AC/DC & Output Jacks
To install the headphone, AC/DC, and output
jacks:
1. Remove the hex huts and washers from the
headphone, AC/DC, and output jacks.
2. Solder the battery wires onto the AC/DC jack
as shown on the Wiring Diagram on Page
23 and the Electrical Components photos
on
Page 24.
3. Insert the headphone, AC/DC, and output
jacks out through the hole in the side of the
guitar, then through the jack plate (
Figure
14).
4. Reinstall the nuts and washers removed in
Step 1, using an 11 and 13mm wrench, then
fasten the jack plate to the guitar with the two
#3 x
1 ⁄
2
" silver screws ( Figure 15).
Output
AC/DC
Headphone
