-14-
Model H7582 Junior Electric Guitar Kit
Bridge
Components Needed Qty
Guitar ................................................................. 1
Bridge ................................................................ 1
Silver Screws #4 x
3 ⁄
4
" ....................................... 5
For the guitar to be grounded correctly, a section
of exposed grounding wire must contact the bot-
tom of the bridge.
To attach the bridge to the guitar body:
1. Make sure the end of the grounding wire fits
snugly in the hole shown in Figure 20. The
exposed wires should protrude past the hole
enough to contact the bridge.
2. Secure the wire insulation in the hole with
rubber cement, leaving the end exposed.
3. Align the mounting holes on the guitar and
bridge ( Figure 20) and secure over the
ground wire with five #4 x 3 ⁄
4
" silver screws.

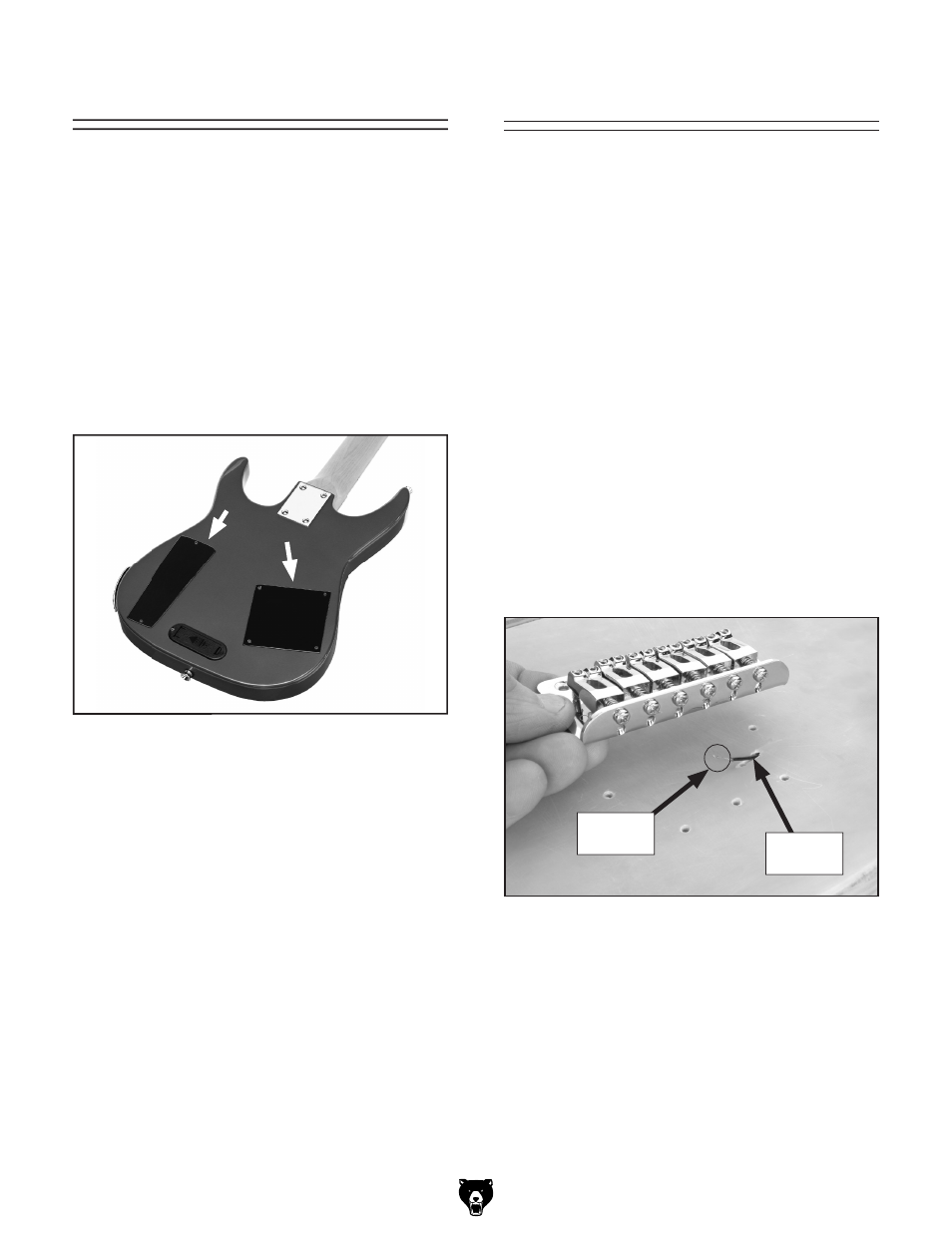

Figure 20. Bridge placement.
Exposed
Section Ground
Wire
Components Needed Qty
Guitar ................................................................. 1
Black Screws #2 x
1 ⁄
4
" ...................................... 8
Circuit Board Cover ........................................... 1
Speaker Cover .................................................. 1
To install the speaker and circuit board cov-
ers:
1. Place the circuit board and the speaker cov-
ers over the mounting holes ( Figure 19) and
secure each cover with four #2 x 1 ⁄
4
" black
screws.
Covers
Figure 19. Covers secured.
