Controls
11
12
15
17
19
20
16
18
14
13
7
6
8
9
10
1
2
3
5
4

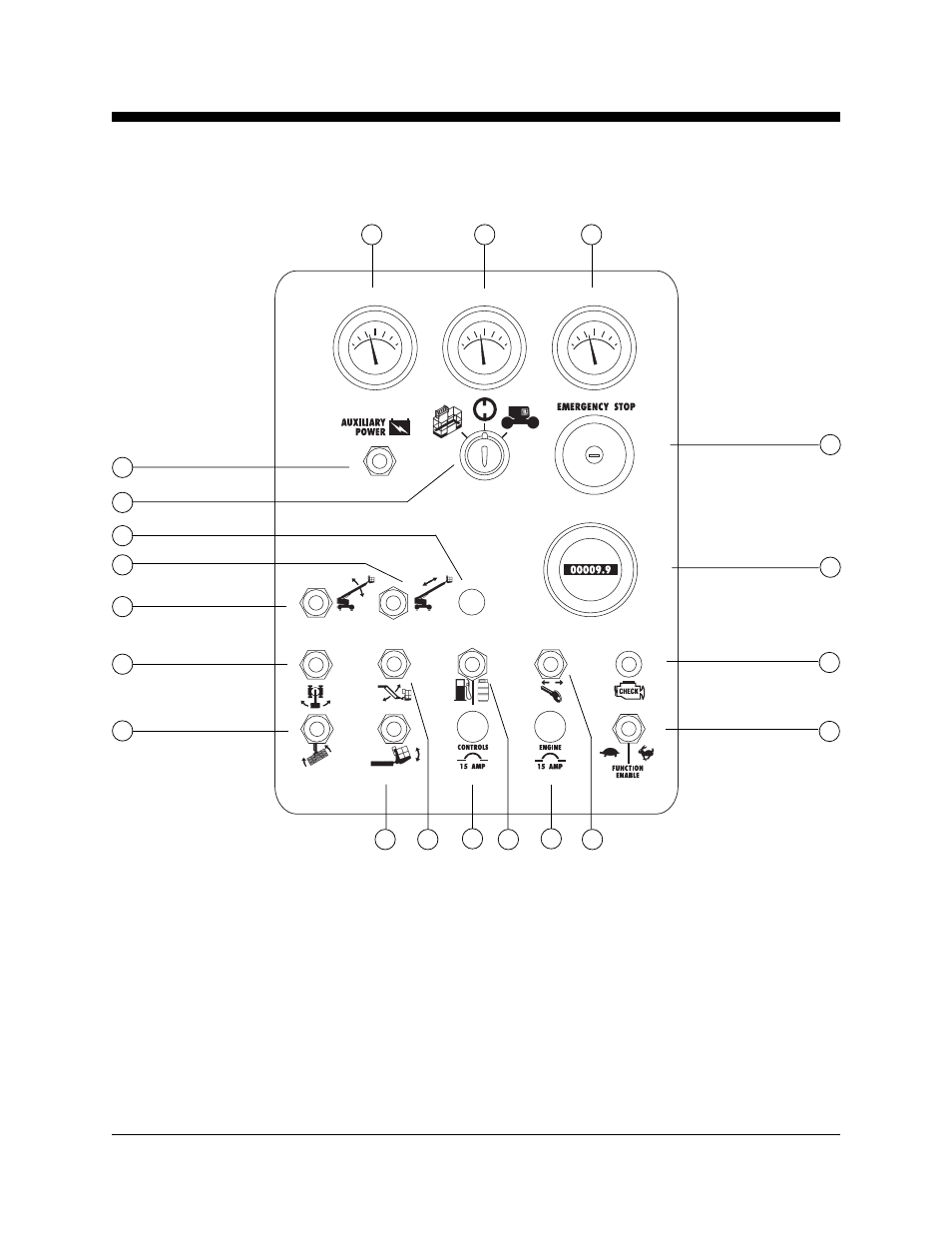

Ground Control Panel
1
Platform rotate switch
2
Turntable rotate switch
3
Boom up/down switch
4
Boom extend/retract switch
5
not used
6
Key switch for platform/off/ground selection
7
Auxiliary power switch
8
Gasoline/LPG models: Water temperature
gauge
Deutz Diesel models: Oil temperature gauge
9
Oil pressure gauge
10
Voltage gauge
11
Emergency Stop button
12
Hour meter
13
Gasoline/LPG models: Check engine light
Deutz Diesel models: Glow plug switch
(option)
14
Function enable switch
15
Engine start switch
16
15A breaker for engine electrical circuits
17
Gasoline/LPG select switch
18
15A breaker for control electrical circuits
19
S-85 only: Jib boom up/down switch
20
Platform level switch
