FUNCTION TESTS
Test Limited Drive Speed
55 Move the lift/drive select switch to the lift
position (if equipped).
56 Press down the foot switch.
57 Raise the boom to just above horizontal.
58 Move the lift/drive select switch to the drive
position (if equipped).
59 Slowly move the drive control handle to the full
drive position.
Result: The maximum achievable drive speed
with the boom raised should not exceed 1 foot
per second (0.3 meters per second).
60 Move the lift/drive select switch to the lift
position (if equipped).
61 Lower the boom to the stowed position.
62 Extend the boom 1 foot (30 cm).
63 Move the lift/drive select switch to the drive
position (if equipped).
64 Slowly move the drive control handle to the full
drive position.
Result: The maximum achievable drive speed
with the boom extended should not exceed 1
foot per second (0.3 meters per second).
If the drive speed with the boom raised or extended
exceeds 1 foot per second (0.3 meters per second),
immediately tag and remove the machine from
service.
Test the Drive Enable System
49 Move the lift/drive select switch to the lift
position (if equipped).
50 Press down the foot switch. Then lower the
boom to the stowed position.
51

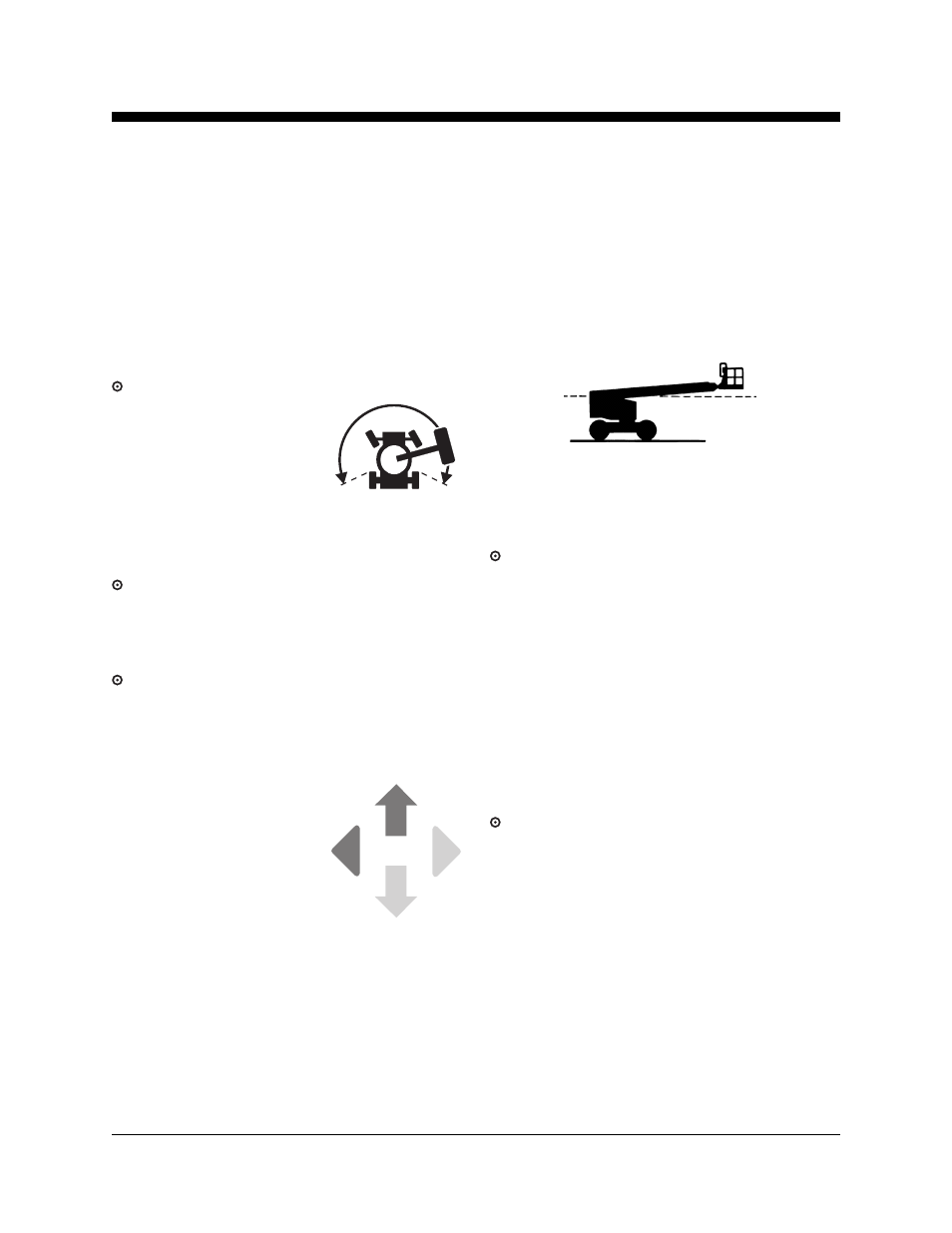

Result: The drive enable
indicator light should
come on and remain on
while the boom is
anywhere in the range
shown.
52 Move the lift/drive select
switch to the drive position (if equipped).
53 Move the drive control handle off center.
Result: The drive function should not operate.
54 Move and hold the drive enable toggle switch to
either side and slowly move the drive control
handle off center.
Result: The drive function should operate.
Note: When the drive enable system is in use, the
machine may drive in the opposite direction that the
drive and steer control handle is moved.
Use the color-coded direction
arrows on the platform
controls and the drive
chassis to identify the
direction of travel.
