30 Genie S-80 & Genie S-85 Part No. 43650
Operator's Manual Second Edition· Fifth Printing

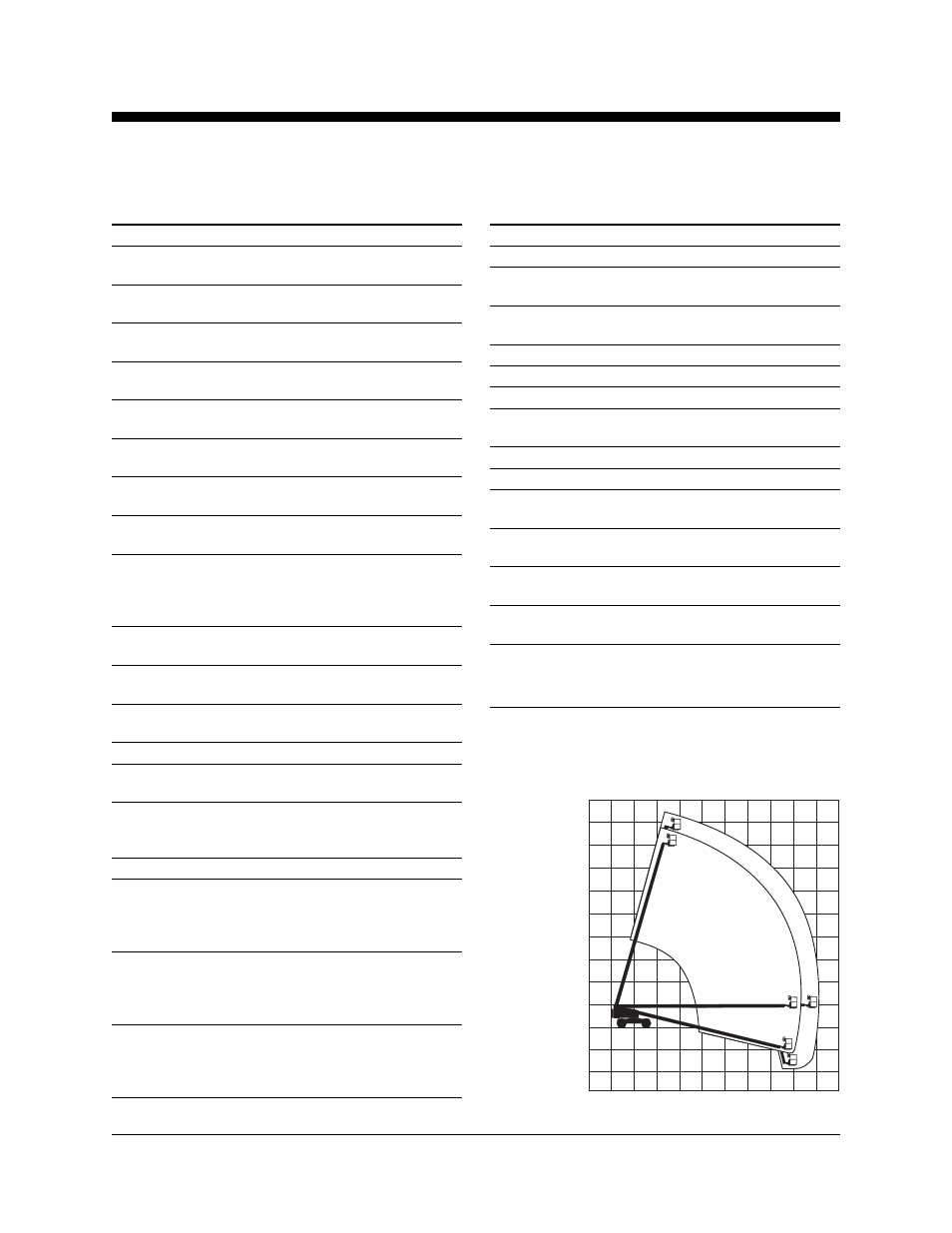

Specifications
Model S-80 S-85
Height, working maximum 86 ft 91 ft
26.2 m 27.7 m
Height, platform maximum 80 ft 85 ft
24.4 m 25.9 m
Height, stowed maximum 9 ft 2 in 9 ft 2 in
2.79 m 2.79 m
Horizontal reach maximum 71 ft 11 in 76 ft 11 in
21.9 m 23.4 m
Width 7 ft 11 1 / 2 in 7 ft 11 1 / 2 in
2.43 m 2.43 m
Length, stowed 36 ft 8 in 40 ft 7 in
11.2 m 12.4 m
Maximum load capacity 600 lb 500 lb
6 foot platform 272 kg 227 kg
Maximum load capacity 500 lb 500 lb
8 foot platform 227 kg 227 kg
Maximum load capacity
6 foot platform with foam-filled tires
and proper counterweight
750 lb N/A
configuration 340 kg N/A
Wheelbase 9 ft 0 in 9 ft 0 in
2.7 m 2.7 m
Turning radius (outside) 23 ft 1 in 23 ft 1 in
7.0 m 7.0 m
Turning radius (inside) 10 ft 7 1 / 2 in 10 ft 7 1 / 2 in
3.2 m 3.2 m
Turntable rotation (degrees) continuous
Turntable tailswing 3 ft 8 1 / 2 in 3 ft 8 1 / 2 in
113.0 cm 113.0 cm
Power source Ford 63 Hp Gasoline/LPG LRG-423
(choice) or LRG-425 EFI
Deutz 56 Hp Diesel F4L 1011
Drive speeds 2WD 4WD
Drive speed, stowed 3.8 mph 3.1 mph
Gasoline/LPG models 6.1 km/h 4.9 km/h
40 ft/7.2 sec 40 ft/8.8 sec
12.2 m/7.2 sec 12.2 m/8.8 sec
Drive speed, stowed 3.3 mph 3 mph
Deutz Diesel models 5.3 km/h 4.8 km/h
40 ft/8.3 sec 40 ft/9.1 sec
12.2 m/8.3 sec 12.2 m/9.1 sec
Drive speed, 0.68 mph 0.68 mph
raised or extended 1.1 km/h 1.1 km/h
- all models 40 ft/40 sec 40 ft/40 sec
12.2 m/40 sec 12.2 m/40 sec
Model S-80 S-85
Controls 12V DC proportional
Platform dimensions, 6 foot 72 in x 30 in 72 in x 30 in
(length x width) 1.8 m x 76 cm 1.8 m x 76 cm
Platform dimensions, 8 foot 96 in x 36 in 96 in x 36 in
(length x width) 2.4 m x 91 cm 2.4 m x 91 cm
Platform leveling self-leveling self-leveling
Platform rotation 160° 160°
AC outlet in platform standard standard
Hydraulic pressure (maximum) 3000 psi 3000 psi
(boom functions) 207 bar 207 bar
Tire size 15-22.5 SAT 15-22.5 SAT
Gradeability, stowed (2WD/4WD) 30% / 38 %
Ground clearance 11 in 11 in
28 cm 28 cm
Hydraulic tank capacity 45 gallons 45 gallons
170 liters 170 liters
Fuel tank capacity 30 gallons 30 gallons
114 liters 114 liters
Weight 33,380 lbs 35,860 lbs
15,141 kg 16,266 kg
Airborne noise emissions 80 dB
Maximum sound level at normal operating workstations
(A-weighted)
Continuous improvement of our products is a
Genie policy. Product specifications are subject to
change without notice or obligation.
0 ft
0 m
0 ft
0 m
40 ft
12.2 m
20 ft
6.1 m
20 ft
6.1 m
60 ft
18.3 m
10 ft
3.0 m 50 ft
15.2 m 30 ft
9.1 m 70 ft
21.3 m
80 ft
24.4 m
S-80
S-85
