Part No. 43650 Genie S-80 & Genie S-85 17
Operator's Manual Second Edition · Fifth Printing
FUNCTION TESTS
9 Hold the function enable switch to either side
and activate the boom extend function.
Result: The boom should extend no more than 6
inches (15 cm) and then stop. The boom should
not extend beyond the limit switch unless both
axles are extended.
10 Hold the function enable switch to either side
and activate the boom retract function.
Result: The boom should retract.
11 At the extendable axle controls, extend the jack.
Result: The jack should extend and raise the
machine.
12 Extend the axle.
Result: The axle should extend.
13 Retract the jack.
Result: The jack should retract and lower the
machine.
14 Repeat steps 11-13 for the other jack and axle.
15 Hold the function enable switch to either side
and activate the boom raise and lower function.
Result: The boom should raise and lower
normally.
16 Hold the function enable switch to either side
and activate the boom extend and retract
functions.
Result: The boom should extend and retract
normally.
Test the Machine Functions
17 Do not hold the function enable switch to either
side. Attempt to activate each boom and
platform function toggle switch.
Result: All boom and platform functions should
not operate.
18 Hold the function enable switch to either side
and activate each boom and platform function
toggle switch.
Result: All boom and platform functions should
operate through a full cycle. Descent alarm (if
equipped) should sound while boom is lowering.
Machines equipped with Platform Level Control
Disable Function: The platform level toggle switch
will not operate when the boom is raised or
extended past the drive speed limit switches.
Test the Tilt Sensor
19 Pull out the platform red Emergency Stop button
to the ON position. Turn the key switch to
platform control.
20 Open the tank side turntable
cover and locate the tilt sensor
next to the control box.

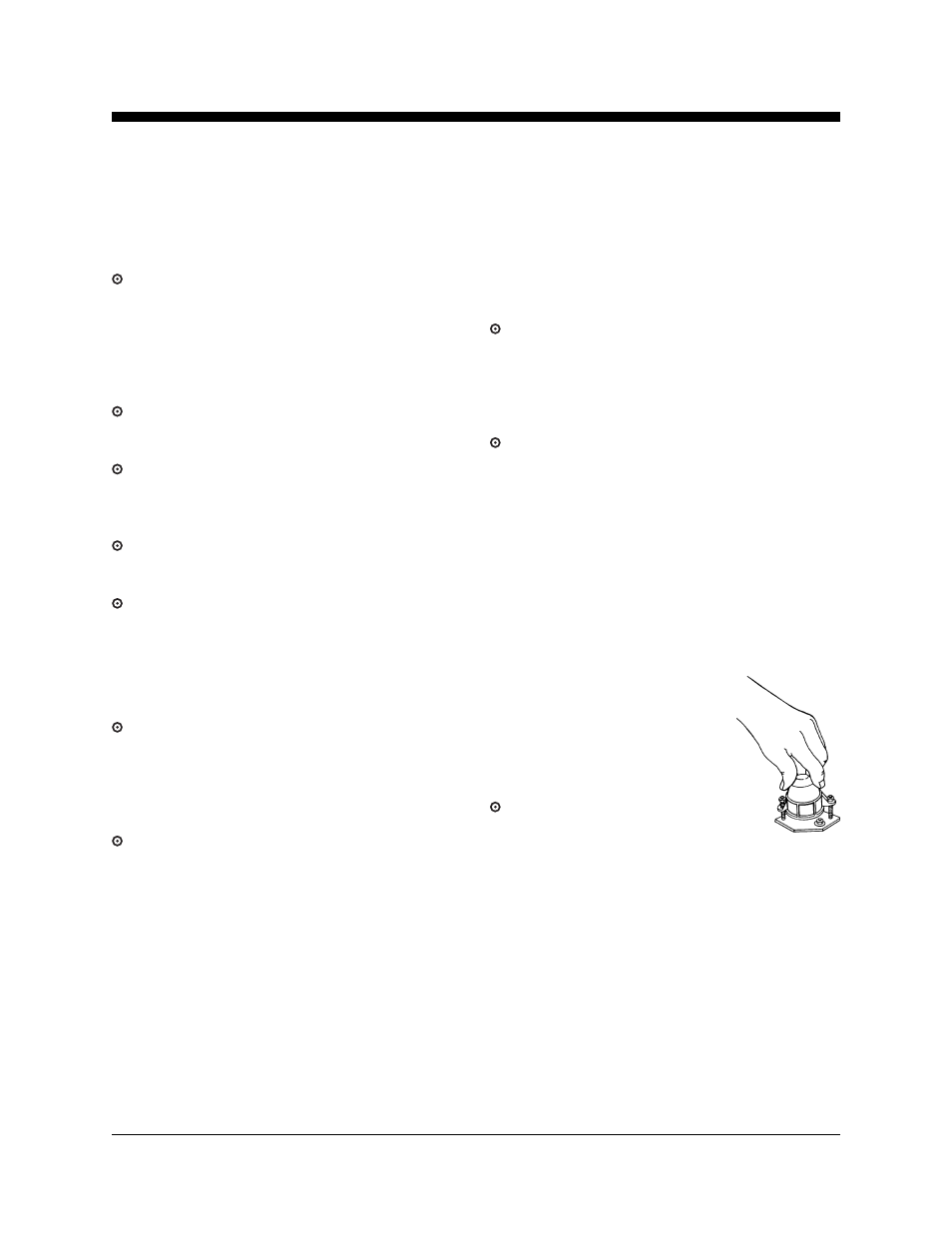

21 Press down one side of the tilt
sensor.
Result: The alarm, located in
the platform, should sound.
