Installation
8 310692D
Installation

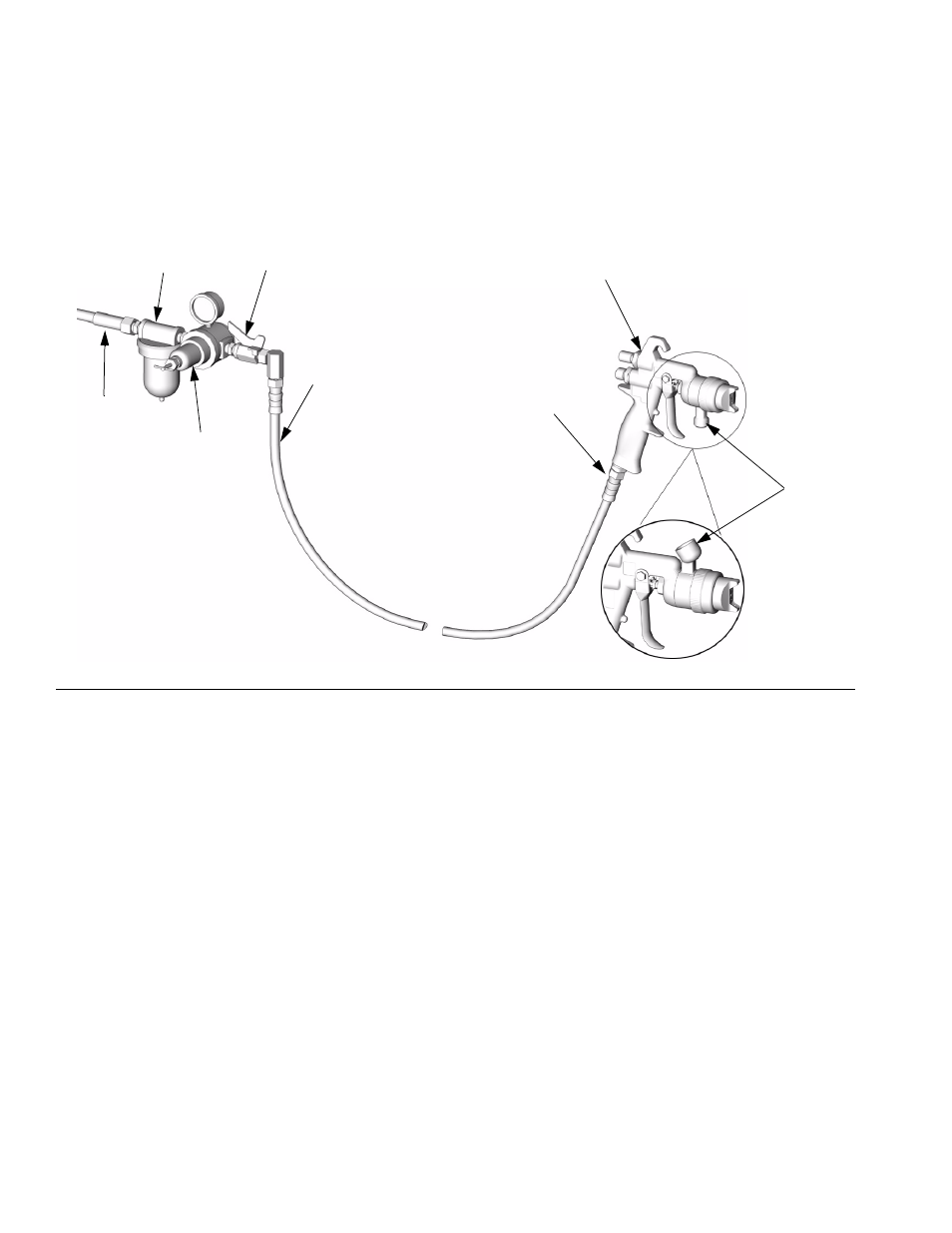

Top and bottom feed guns
Key:
A Delta Spray XT Gun
B Fluid Inlet, 3/8 npsm (R3/8-19)*
C Air Inlet
D Air Hose
recommended 5/16 in. (7.9 mm) ID hose
optional 3/8 in. (9.5 mm) ID hose
E Air Shutoff Valve
F Air Regulator
G Air Filter
H Air Supply Line
*Pressure and siphon feed guns will have bottom feed
insert. Gravity feed guns will have a top feed insert.
F IG . 1
ti4819
A
C
D
E G
F
H
B*
