DISPENSER MODELS:
RAISED OVERLAY PANEL DESIGN
When a raised panel design is to be used, a
custom wide middle rail is required to accept
the dispenser trim.
• The middle rail must be wide enough to allow
for the dispenser trim to overlap the opening.
• The middle rail must be 1.100" total thickness
to accept the dispenser trim.
9

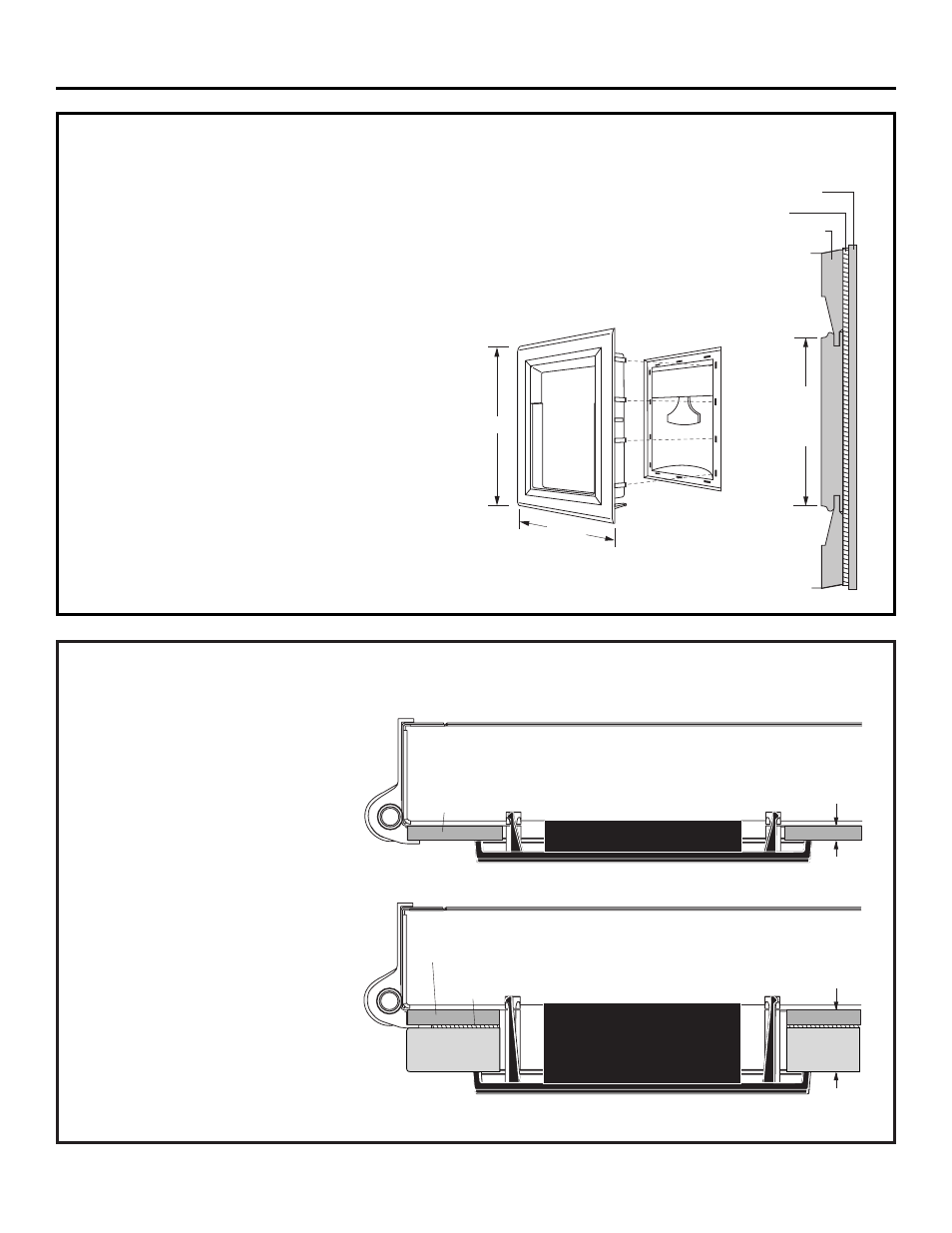

DISPENSER TRIM FIT EXAMPLES:
(NOT TO SCALE)
1/4" FRAMED PANEL
• The dispenser trim fits over the
custom panel and snaps into the
freezer door.
• The clips will not engage the door if
the panel is more than 0.250" thick.
• If the panel is less than 0.250" thick,
a noticeable gap may be created
around the dispenser trim.
3/4" OVERLAY PANEL
• The dispenser trim fits over the
custom panel and snaps into the
freezer door.
• The clips will not engage the door if
the panel is more than 1.100" thick.
• If the panel is less than 1.100" thick,
a noticeable gap may be created
around the dispenser trim.
1/4" Backer Panel
.10" Spacer
3/4" Overlay Panel
Wide
Middle
Rail is
Required
Dispenser
Trim
16-3/4"
10-5/8"
1/4"
Framed
Panel
1/4" Backer Panel
.10" Spacer
Panel
1/4" Dispenser Trim
3/4" Overlay Dispenser Trim
3/4" Overlay
Panel
FREEZER DOOR
FREEZER DOOR
0.250"
Thick
1.100"
Total Thickness
Ice / Water Dispenser
Ice / Water Dispenser
Design Guide
