Page 16: Step 10a install overlay panels

background image

16

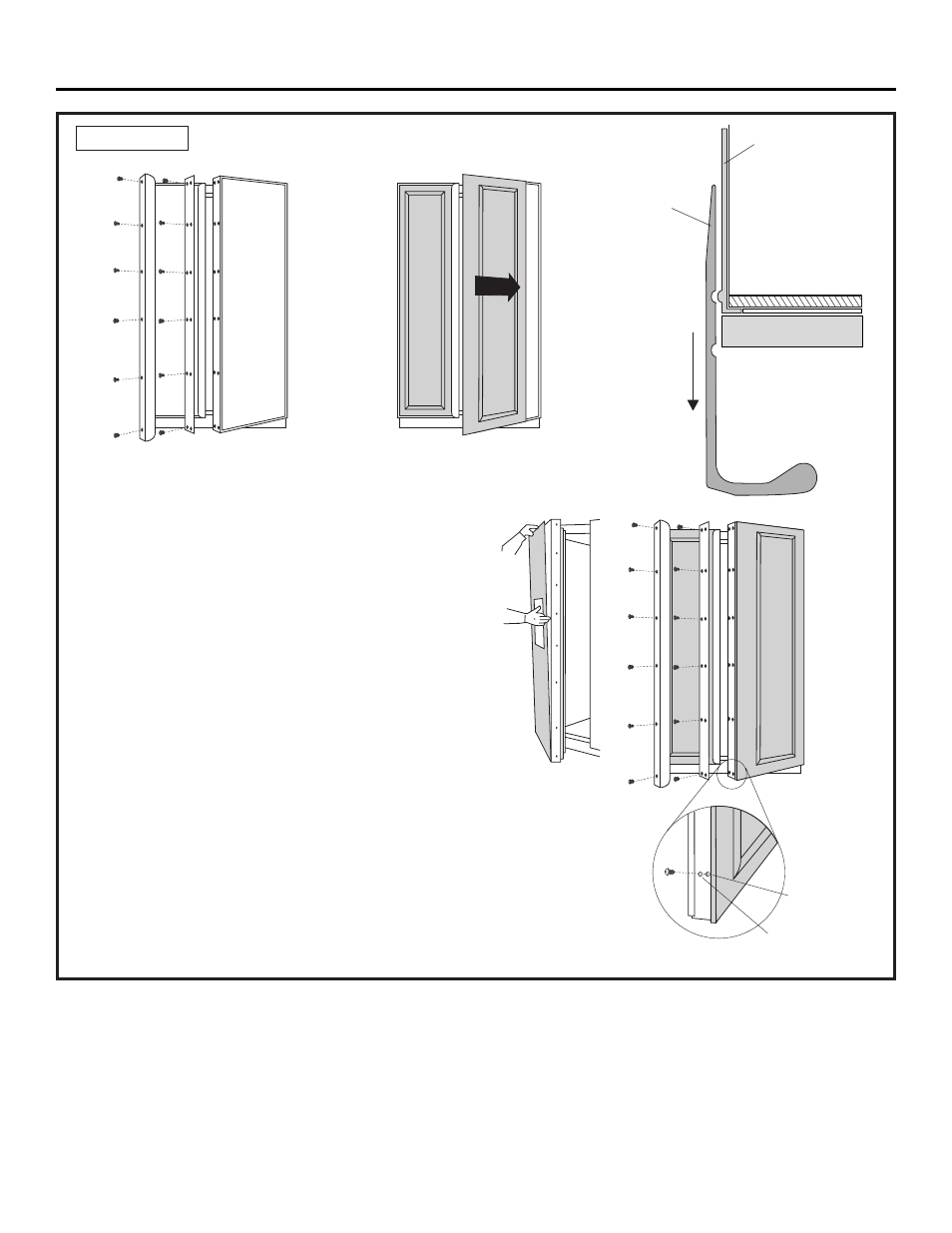

STEP 10A INSTALL OVERLAY PANELS

Install door panels:
• Open door to 90°. Remove the 6 Phillips head screws

from the door handle.

• Remove handle. Retain all screws.
• Remove 6 screws holding trim, lift off trim. Retain

screws.

• Slide overlay panel into the door trim.

Dispenser Models Only:
• The dispenser controls protrude beyond the face of

the freezer door. To avoid damage to the dispenser,
the trim at the top of the door should be removed.

• Remove the screws holding the top trim in place.
• Place the assembled freezer panel into the bottom

channel and slide into the hinge side trim.

• Reinstall the top trim piece with screws.

• There are two sets of holes in the handle side trim.

Replace handle side trim by installing the original
screws in the REAR screw holes.

• Secure the handle to the door using the FRONT screw

holes.

• Follow the same procedures to install the opposite

panel.

• Check to be sure handles are evenly aligned with each

other at the top. To adjust, loosen handle screws and
slide up or down. Tighten screws.

Use Rear Holes

to Secure Trim

Use Front Holes
to Secure Handle

Supplied Handle
Shown in Overlay
Panel Position

Refrigerator

Door

Door Trim

Handle
Trim

Move

Forward

For 3/4"

Panel

Installation Instructions
