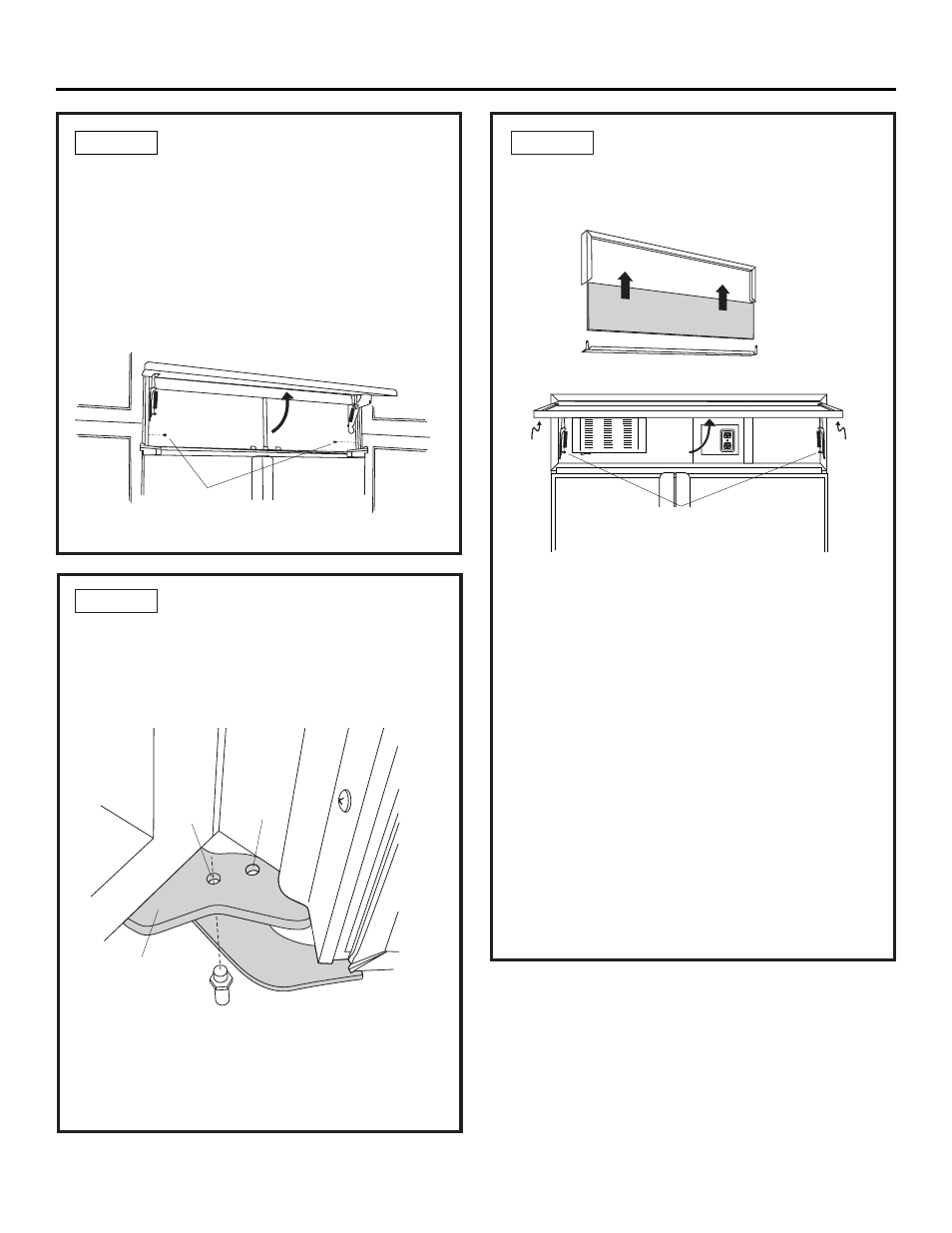

STEP 9 INSTALL GRILLE PANEL
To insert framed or overlay panel into the grille:
• Raise the grille panel to stop position.
14
• Loosen screws on side trim behind frame. Remove
bottom trim.
CAUTION:
Metal panel may be
slippery. Grip metal panel firmly, so the panel does
not slip out of the frame and cause personal injury
or damage to the frame.
PRUDENCE :
Le panneau en métal
peut bêtre glissant. Tenir fermement le panneau en
métal, de manière à ce que le panneau ne glisse pas
en dehors du cadre en provoquant des blessures
corporelles ou des dommages au cadre.
• Slide panel over the metal backer panel and into
the trim.
• If necessary, tap with a wood block until panel slips
under the top trim piece.
• Reassemble bottom trim. Tighten screws.
• Adjust the hinge spring to accommodate the panel
weight, if necessary.
Raise
Grille
Panel
Adjust Nut Below
Spring to Accommodate
Panel Weight
Loosen
Side
Trim
Screw
Loosen
Side
Trim
Screw
Installation Instructions
STEP 8 ADJUST DOOR SWING
NOTE: This refrigerator has a 2-position door stop.
When space does not allow the door to swing open
fully to 130°, you may change the door swing to a 90°
opening. Skip this step if door opening is satisfactory
for your installation situation.
• Open the door to view the bottom hinge. Note the
door stop pin locations. The pin is factory installed
in the 130° position.
• Close the door. From below, use pliers to unscrew
the door stop and reinstall into the 90° position.
90˚ 130˚
Hinge
Interior
Door
STEP 7 SECURE REFRIGERATOR
TO CABINETRY
Whenever possible, perform this step for anti-tip
security, or when anti-tip brackets cannot be used.
The refrigerator must be secured to prevent tipping
.
• Raise the grille panel to access case trim.
• Drill hole in trim and drive screw through the trim
into adjacent cabinet.
• Follow the same procedure on the opposite side.
Drive Screws
Through Case Trim Into
Adjacent Cabinets
Raise Grille Panel
to Stop Position
