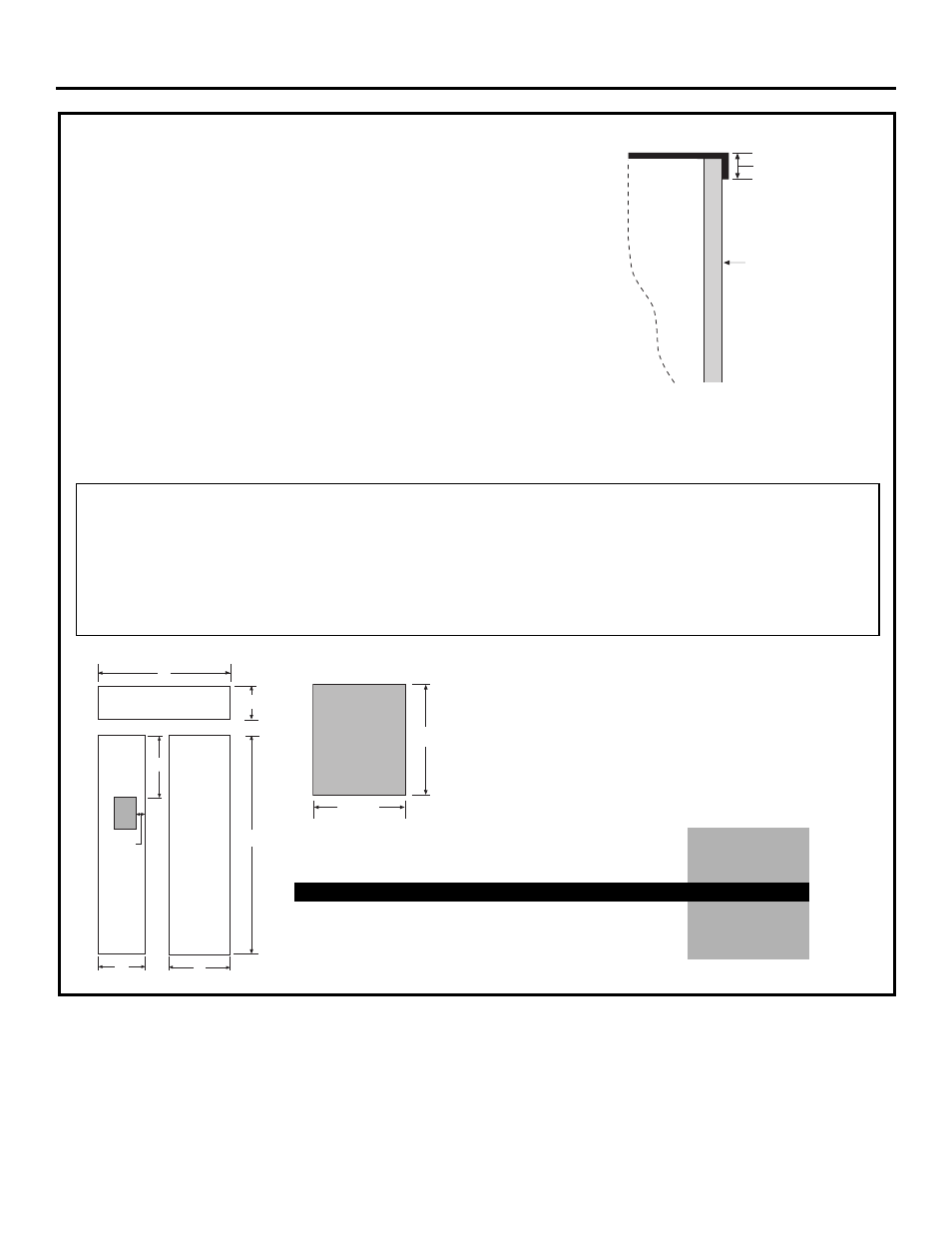

1/4" FRAMED PANEL DIMENSIONS
7
If you choose to install framed panels, they must be
cut to the dimensions shown. The panels will slide
into the frame on the door and grille.
Non-Dispenser Models
If the custom panel is less than 1/4" thick and it fits
loosely in the door frame it can be backed up with
a piece of filler material or foam tape to improve
the fit.
Fresh Food
Panel
Freezer
Panel
E D
F
G
A
B Grille Panel
C
Dispenser
Cutout
9-5/8"
Dispenser Cutout
15-3/8"
Side-by-Side (in inches)
A B C D E F G
36” Models 33-7/8 9 68-3/8 14-9/16 18-9/16 17-13/16 3-1/8
42” Models 39-7/8 9-1/2 68-3/8 14-9/16 24-9/16 17-13/16 3-1/8
48” Models 45-7/8 9-1/2 68-3/8 18-9/16 26-9/16 17-13/16 5-1/8
Dispenser
Cutout Position
IMPORTANT NOTE: Maximum total panel weight:
• Fresh food door panel – 75 lbs.
• Freezer door panel – 53 lbs.
• Grille Panel – 18 lbs.
1/4"
Panel
Door
5/16"
Trim
Reveal
The framed panel must be 1/4" nominal thickness
to fit the dispenser trim.
IMPORTANT NOTE – DISPENSER MODELS
The refrigerator is supplied with two dispenser trims,
one for framed panels and one for overlay panels.
• If the panel is less than 0.250" thick a noticeable
gap may be created around the dispenser trim.
Foam tape may be applied on the door to improve
the fit.
• If the panel is more than 0.250" thick, the
dispenser trim cannot be secured to the door.
See Dispenser Trim Fit Example, page 9.
Design Guide
