GE Monogram Side by Side Refrigerators - Manual (Page 4)

1/4"
1/2"
3/4"
1"
1-1/4"
1"
3/4" Overlay
Panel
(Nominal Size)
Stainless Steel
1/4"
1/2"
3/4"
2"
1-1/4"
1-1/2"
1-3/4"
3"
2-1/4"
2-1/2"
2-3/4"
1/4"
1/2"
3/4"
Door
23-7/8" From
Rear of
Refrigerator
1"
Refrigerator
Case
Trim

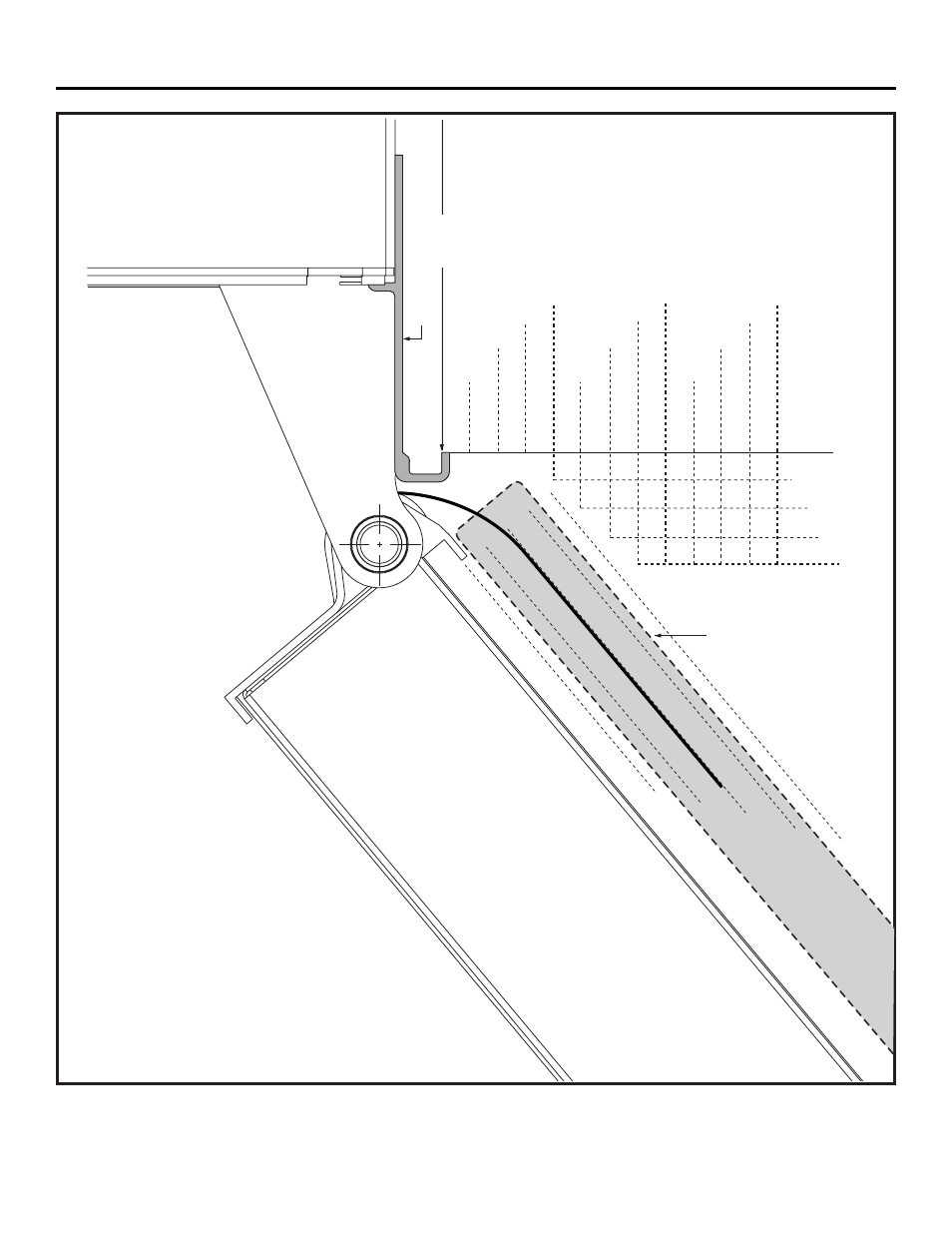

Design Guide
Top View
130° DOOR SWING
(factory setting)
Scale 1:1
IMPORTANT NOTE –
FOR DISPENSER MODELS:
Dispenser models are supplied with two
dispenser trims, one to fit framed panels
and one for overlay panels. Dispenser trim
fit to the custom panel depends on correct
panel thickness. Framed panels must be
1/4" nominal. Overlay panels should be
constructed as shown to accomplish a total
1.100" thickness. See pages 7 and 8 for details.
4
Frameless Cabinets: The case trim overlaps
cabinets at the top and sides. Therefore,
frameless cabinets may require filler strips to
prevent interfeence with cabinet door swing.
The opening must allow for filler strips.
