GA-8IP775 Series Motherboard - 70 -
English

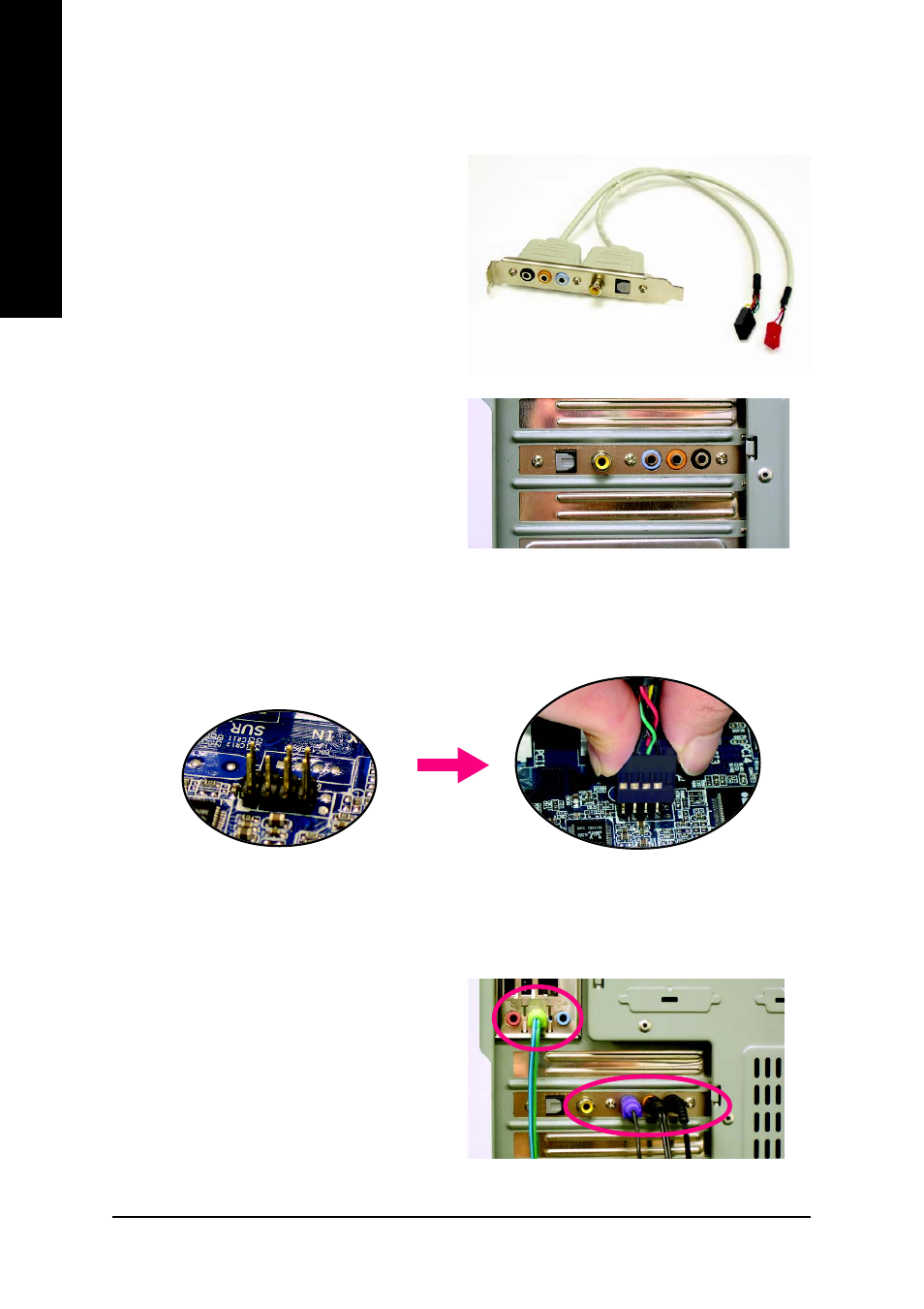

STEP 1 :
Secure the Audio Combo Kit at the panel on the back
of the case.
8 Channel Audio Setup (using Audio Combo Kit, Optional Device):
(Audio Combo Kit offers SPDIF output, an optical and
coaxial cable and a Surround-Kit. The
Surround-Kit offers R/L surround, center/subwoofer
output and rear surround)
STEP 2 :
Connect the Surround-Kit to the SUR_CEN connector located on the motherboard.
STEP 3 :
There are two methods of 8 channel audio
configuration:
Method 1:
Connect the front channels to the "LINE OUT" port
located on the audio panel and the rear channels to
the Surround-Kit "REAR R/L" port. Connect the cen-
ter/subwoofer channels to the Surround-Kit "SUB
CENTER" and the R/L channels to the Surround-Kit
"SUR BACK" port.
