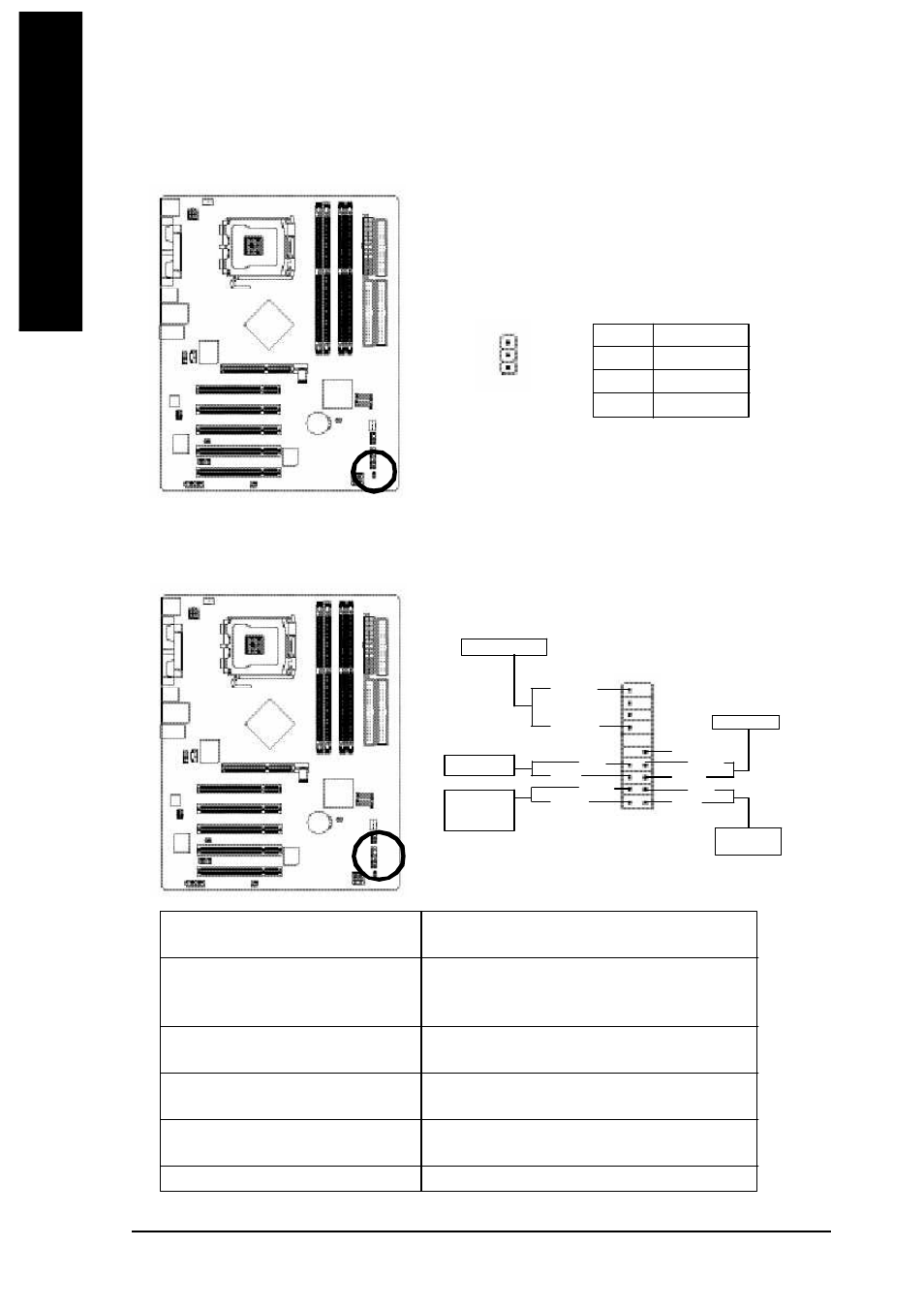

8) PWR_LED
PWR_LED is connect with the system power indicator to indicate whether the system is on/off. It will
blink when the system enters suspend mode.
1
Pin No. Definition
1 MPD+
2 MPD-
3 MPD-
9) F_PANEL (Front Panel Jumper)
Please connect the power LED, PC peaker, reset switch and power switch etc of your chassis front
panel to the F_PANEL connector according to the pin assignment below.
HD (IDE Hard Disk Active LED) Pin 1: LED anode(+)
(Blue) Pin 2: LED cathode(-)
SPEAK (Speaker Connector) Pin 1: VCC(+)
(Amber) Pin 2- Pin 3: NC
Pin 4: Data(-)
RES (Reset Switch) Open: Normal Operation
(Green) Close: Reset Hardware System
PW (Power Switch) Open: Normal Operation
(Red) Close: Power On/Off
MSG(Message LED/Power/Sleep LED) Pin 1: LED anode(+)
(Yellow) Pin 2: LED cathode(-)
NC( Purple) NC
1 2
1 9 2 0
HD-
HD+
RES+
RE S-
NC
SPEAK-
MSG-
MSG+
PW-
PW+
SPEAK+
Me ssa ge LED/
Po we r/
Sle ep L ED
Po wer Switch
Spe aker Connector
IDE Hard Di sk
Acti ve L ED
Re set Switch
