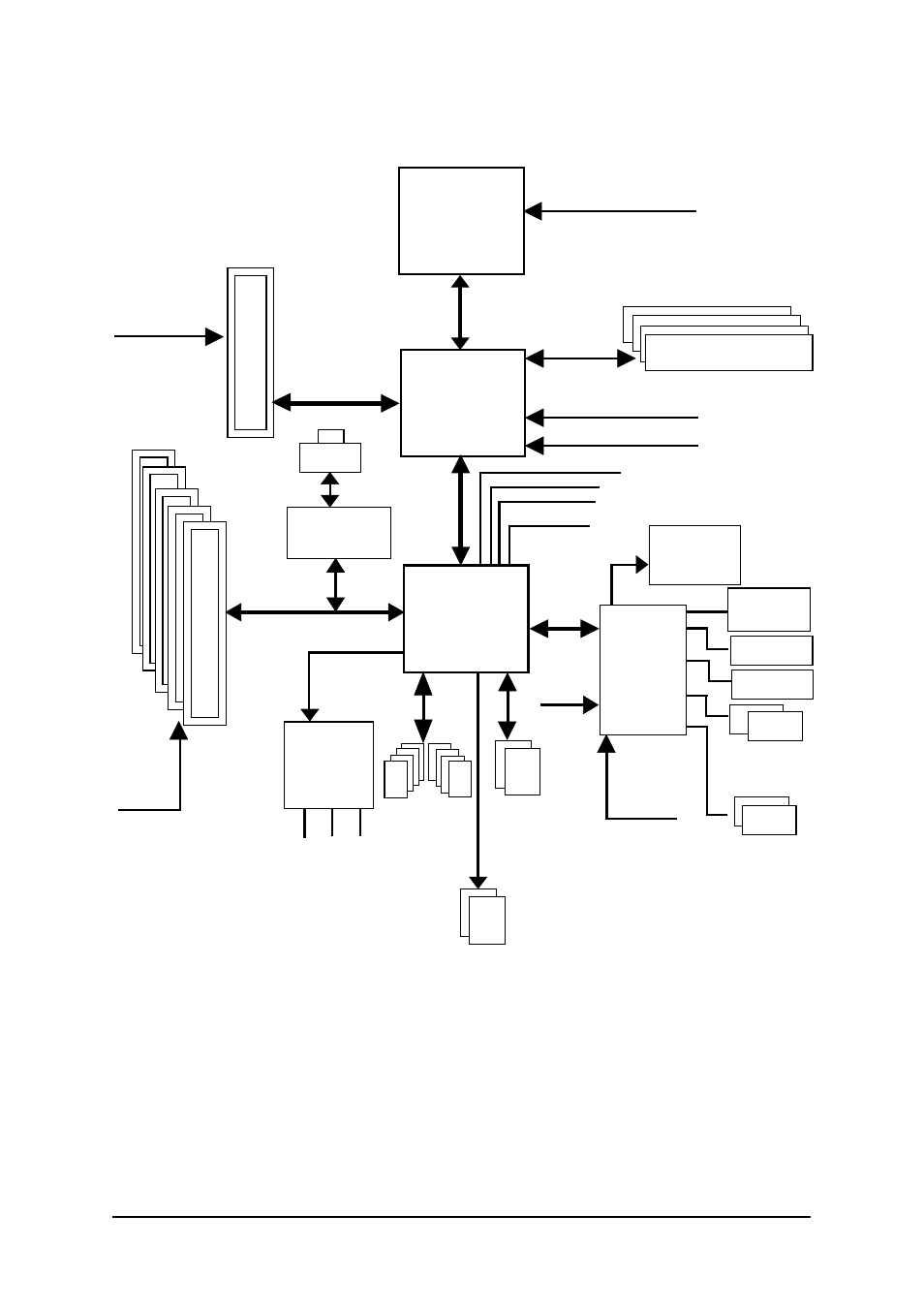

Block Diagram
Serial ATA
Channels
LGA775
Processor
Intel 865P
AC97
CODEC
ICH5
CPUCLK+/- (200/133MHz)
System Bus
800/533MHz
266/333/400MHz
ZCLK (66MHz)
HCLK+/- (200/133MHz)
66MHz
33 MHz
14.318 MHz
48 MHz
24 MHz
33 MHz
LPC BUS
AGP 8X/4X
AGPCLK
(66MHz)
5 PCI
PCICLK
(33MHz)
AC97 Link
MIC
LINE-IN
LINE-OUT
8 USB
(2.0/1.1)
Ports
ATA33/66/100
IDE Channels
Floppy
LPT Port
PS/2
KB/Mouse
COM
Ports
IT8712
Game Port
DDR
BIOS
Marvell 8001 ( * )
RJ45 ( * )
(*) Only for GA-8IP775-G.
