308-845 15
Technical Data
Category Data
Maximum fluid working pressure 100 psi (0.7 MPa, 7 bar)
Maximum incoming air pressure 100 psi (0.7 MPa, 7 bar)
Maximum operating temperature 120
_
F (49
_
C)
Gun See separate gun instruction manual.
Pump See separate pump instruction manual.
Fluid pressure regulator See separate fluid pressure regulator instruction manual.
Air pressure regulators See separate air pressure regulator instruction manual.
Wetted parts: fluid hoses for Delta guns nylon, stainless steel
Wetted parts: fluid hoses for PRO guns nylon, nickel-chrome plate
Wetted parts: other fluid hoses and tubing nylon, PTFE
R
Wetted parts: fluid fittings nylon, acetal, 304/316 stainless steel
Weight (without hoses or gun):
packages with fluid pressure regulator Approx. 29 lb (13 kg)
packages with surge tank Approx. 27 (12 kg)
Sound data:
Sound power level*
at 70 psi 0.48 MPa, 4.8 bar) and 115 cpm 68 dB(A)
Sound pressure level
at 70 psi 0.48 MPa, 4.8 bar) and 115 cpm 81.5 dB(A)
* Sound power level was measured per ISO Standard 3744.
Teflon
R
is a registered trademark of the DuPont Corporation.

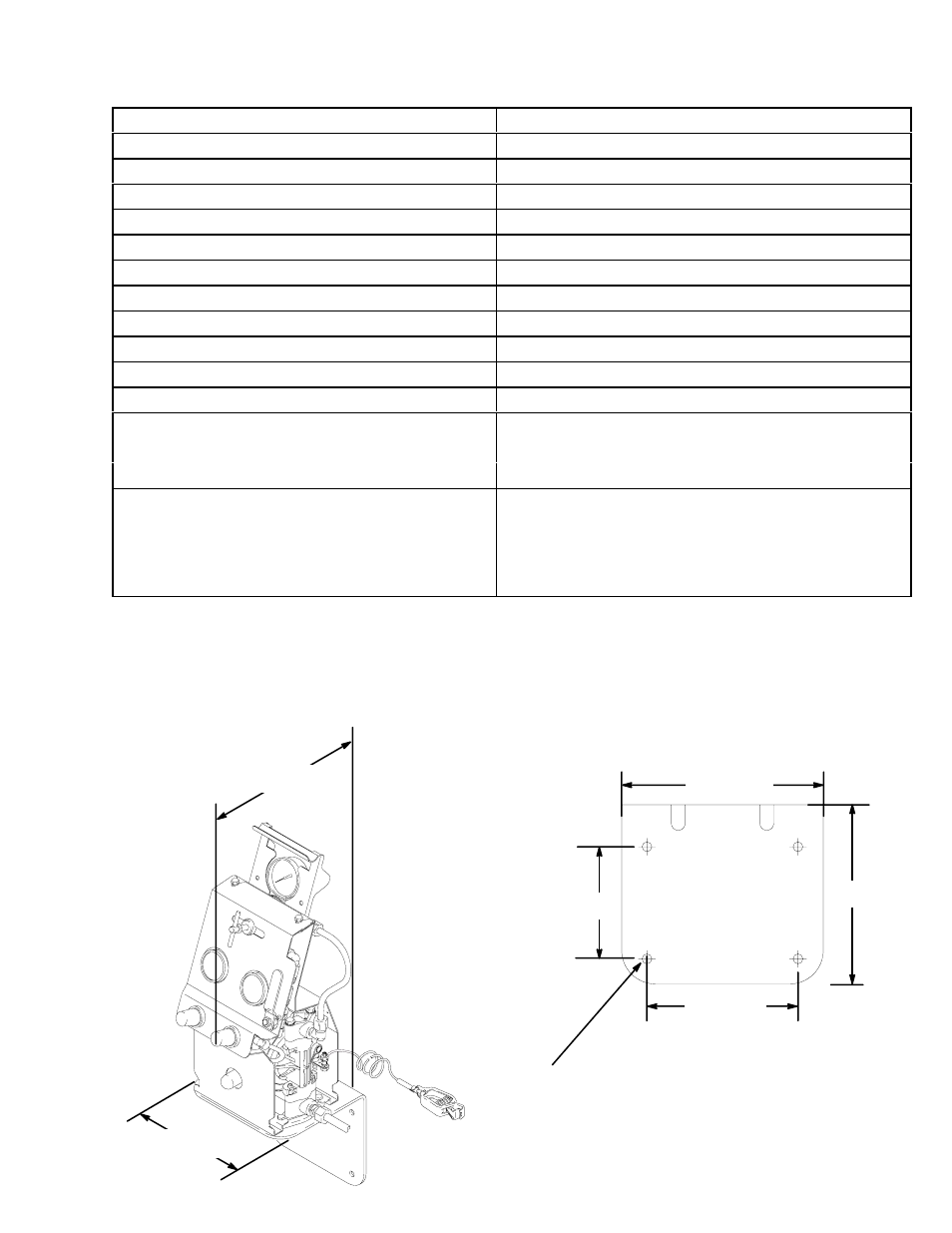

Dimensions
8182A
11.5 in.
(292 mm)
9.0 in.
(229 mm)
Wall Mounting Hole
Layout
5.0 in.
(127 mm)
0654
Four 0.438 in. (11 mm) dia. holes
(to mount bracket to wall)
9.0 in.
(229 mm)
6.7 in.
(170 mm)
8.0 in.
(203 mm)
wall view of
mounting bracket
