Grizzly G0463 - Manual (Page 22)

-20-
G0463 Small Mill/Drill

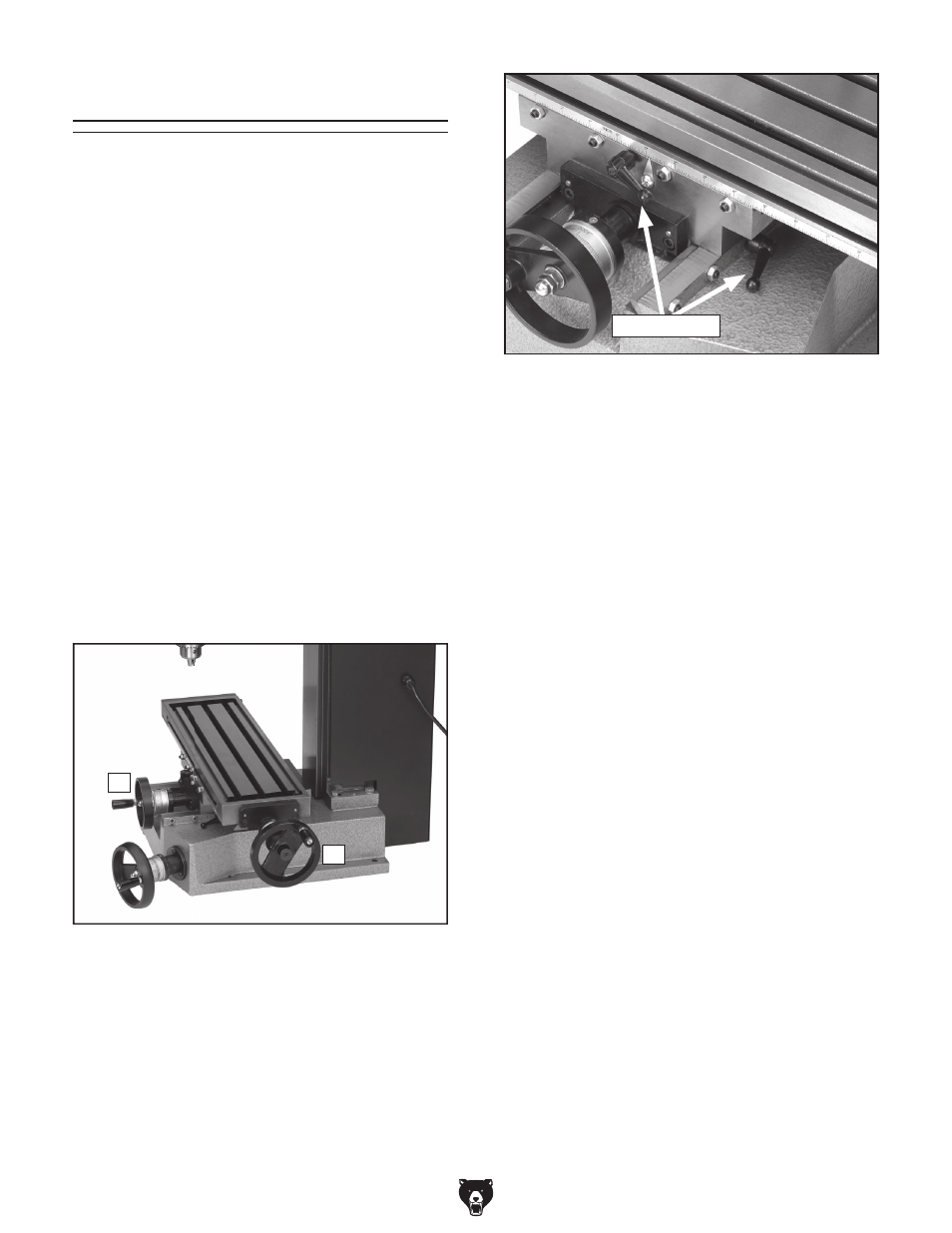

Figure 14. Table locks.
Table Travel
The mill/drill table can be moved in the X and Y
axis.
Longitudinal Feed
The longitudinal feed or (X-axis) is moved by a
handwheel in
Figure 13 at the end of the table.
The handwheel will move the table in both direc-
tions side-to-side. One complete revolution of the
handwheel moves the longitudinal feed 0.100".
There is also a scale on the front of the table for
use when a tight tolerance is not required. The
longitudinal feed can be locked in position by a
table lock located on the front of the table (see
Figure 14).
Cross Feed
The cross feed or (Y-axis) in
Figure 13, is moved
with the handwheel on the front of the table base.
One complete revolution of the handwheel moves
the cross slide 0.100". The cross feed can be
locked into position by a table lock located on the
right side of the cross slide underneath the table
(see
Figure 14).
Figure 13. X & Y Handwheels.
Table Locks
X
Y
