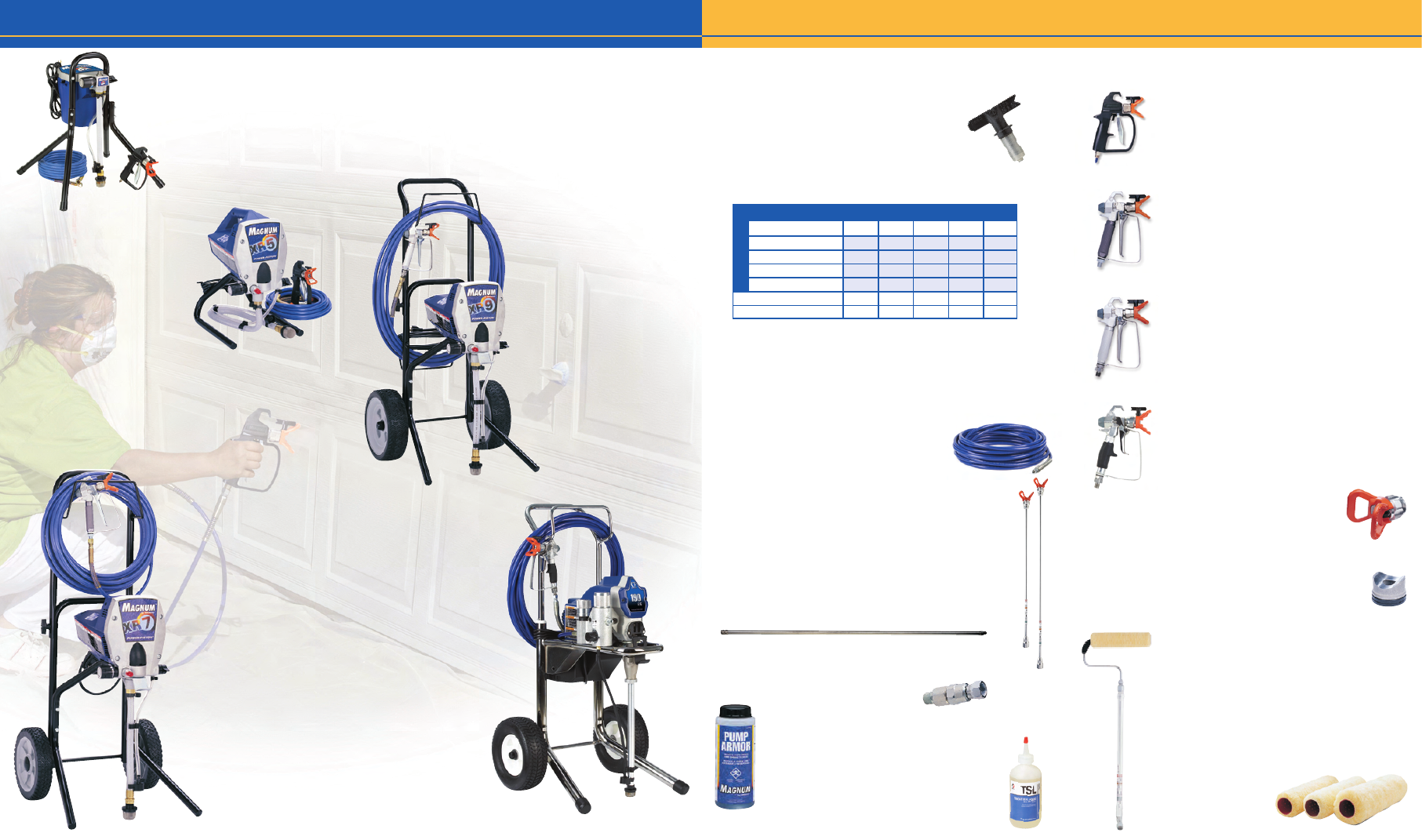

Magnum XR7
(232745)
complete with:
• SG2 ™ Metal Spray Gun
with Large In-handle Filter
• 515 Reverse-A-Clean
(RAC) IV SwitchTip
•
1 ⁄
4
in. x 50 ft. (6.4 mm x
15 m) DuraFlex Airless
Paint Hose
• Operator’s Quick Guide
and Operational DVD
Magnum XR5
(232740)
complete with:
• SG1 ™ -EF Spray Gun with
Large In-handle Filter
• 515 Reverse-A-Clean (RAC)
IV SwitchTip
•
1 ⁄
4
in. x 25 ft. (6.4 mm x 7.5 m)
DuraFlex Airless Paint Hose
• Operator’s Quick Guide and Operational DVD
Magnum XR9
(232750)
complete with:
• SG3 ™ Spray Gun with Large
In-handle Filter and Smooth
Glide
™ Swivel
• 515 Reverse-A-Clean
(RAC) IV SwitchTip
•
1 ⁄
4
in. x 50 ft. (6.4 mm x 15 m)
DuraFlex Airless Paint Hose
• Operator’s Quick Guide
and Operational DVD
Graco 190
ES
™
(261825) complete with:
• SG Pro Metal Spray
Gun with 2-Finger
Trigger, Large
In-handle Filter and
Smooth Glide Swivel
• 515 Reverse-A-Clean
(RAC) IV SwitchTip
• 1 ⁄
4
in. x 50 ft. (6.4 mm x
15 m) DuraFlex
Airless Paint Hose
• Operator’s Quick
Guide and
Operational DVD
SPRAYERS ACCESSORIES
Reverse-A-Clean (RAC) IV SwitchTip ™ Spray Tips
• Perfect for variety of residential or commercial projects.
• Produces a high quality finish.
• Reversible – clear tip plugs quickly with just a twist.
• Installs on Graco or Magnum guns without tools for easy tip
plug clearing and quick tip changes.
(flow rating with water @ 2000 psi, 138 bar)
HOLE SIZE - Inches
FAN WIDTH
in. (mm) .011 .013 .015 .017 .019
6-8 (152-203) 311 313
8-10 (203-254) 411 413 415 417
10-12 (254-305) 515 517 519
12-14 (305-356) 619
Flow rate (gpm) .12 .18 .24 .31 .38
Flow rate (lpm) .45 .68 .91 1.17 1.44
RAC IV Spray Tips 221xxx
(for part number replace xxx with 3 digit number below)
Example — For a .011 in. hole and a 6 in. (152 mm) fan pattern, order tip 221311.
SG1-EF Easy Filter Spray Gun (243926)
• EasyAccess ™ In-handle paint filter reduces tip clogging
and improves finish.
• Comfortable, Full Trigger (4-Finger).
• Lifetime warranty on body and handle.
SG2 Metal Spray Gun (243011)
• In-handle paint filter reduces tip clogs and
improves finish.
• Full Trigger (4-Finger) is comfortable when spraying a
long period of time.
• Trigger pull is 30% lighter than competitors’ for easy
operation and less fatigue.
SG3 Deluxe Metal Spray Gun (243012)
• Built-in swivel provides easy gun movement without
tangling the hose.
• EasyAccess paint filter reduces tip clogs and
improves finish.
• Full Trigger (4-Finger) is comfortable when spraying a
long period of time.
SG Pro Premium Metal Spray Gun (255109)
• Unmatched spraying performance and comfort with
contoured handle design.
• In-handle paint filter requires no-tools to access,
reduces tip clogging and improves finish.
• 2-finger Pro Trigger provides quick response
and control.
RAC IV Hand-Tight Guard (237859)
• Used with RAC IV spray tips.
• Hand-tight base – no tools needed to install or remove.
• 7/8 in (22 mm) thread fits all Graco and Magnum spray guns.
RAC IV Single Seal (243004)
• Replacement seal for latex and solvent-based materials.
• Used with RAC IV spray tips.
Pressure Roller Kit (244512)
• Attaches directly to spray gun to turn your sprayer
into a high-performance pressure roller system.
• Eliminates the need to dip roller cover – simply trigger
the gun for more paint and keep rolling. Over 2 times
faster than traditional rolling methods.
• Includes: 9 in (23 cm) roller frame,1/2 in (13 mm) nap cover,
20 in (50 cm) extension, and 45º gun connection.
Pressure Roller Covers 9 in (23 cm)
Top-quality covers ensure a superior finish.
243063 1/2 in (13 mm)
243064 3/4 in (19 mm)
243065 1-1/4 in (32 mm)
DuraFlex Airless Paint Hoses (3000 psi, 207 bar) & Connector
247338 4 ft x 3/16 in (1 m x 4.8 mm) DuraFlex Airless Whip Hose,
provides more flexibility and increases operator control
247339 25 ft x 1/4 in (7.5 m x 6.4 mm) DuraFlex Airless Hose, includes
1/4 in x 1/4 in (6.4 mm x 6.4 mm) Connector
247340 50 ft x 1/4 in (15 m x 6.4 mm) DuraFlex
Airless Hose, includes 1/4 in x 1/4 in
(6.4 mm x 6.4 mm) Connector
243025 1/4 in x 1/4 in (6.4 mm x 6.4 mm) Connector
Tip Extensions
• Attach to any Graco/Magnum airless spray gun to extend
your reach.
• Ideal for spraying ceilings, overhangs and decks.
243042 – 20 in (50 cm) 243043 – 30 in (75 cm)
Heavy-Duty Extension (243052)
• 40 in (100 cm) extension connects directly to any Graco/Magnum
airless spray gun.
• Extends reach when spraying or pressure rolling.
Straight Hose Swivel (244515)
• Provides a swivel joint between gun and hose for increased flexibility.
• Reduces fatigue while spraying and rolling.
Pump Armor ™ Fluid (243104)
Protects your pump when not in use. Simply fill your pump
with Pump Armor, and leave it in until you use your sprayer
again. 1 qt (1 L)
TSL ™ Throat Seal Liquid (206994)
Use with Graco 190 ES or other models to protect pump
rod and packings. Not required for Magnum sprayers.
8 fluid oz. (0.24 L)
Magnum dx ™
(232735) complete with:
• SG1 ™ -EF Spray Gun with
Large In-handle Filter
• 515 Reverse-A-Clean ®
(RAC ® ) IV SwitchTip ™
•
3 ⁄
16
in. x 25 ft. (4.8 mm x 7.5 m)
Duraflex ™ Airless Paint Hose
•
Operator’s Quick Guide and
Operational DVD
