Graco Inc. 245924 - Manual (Page 3)

311777D 3

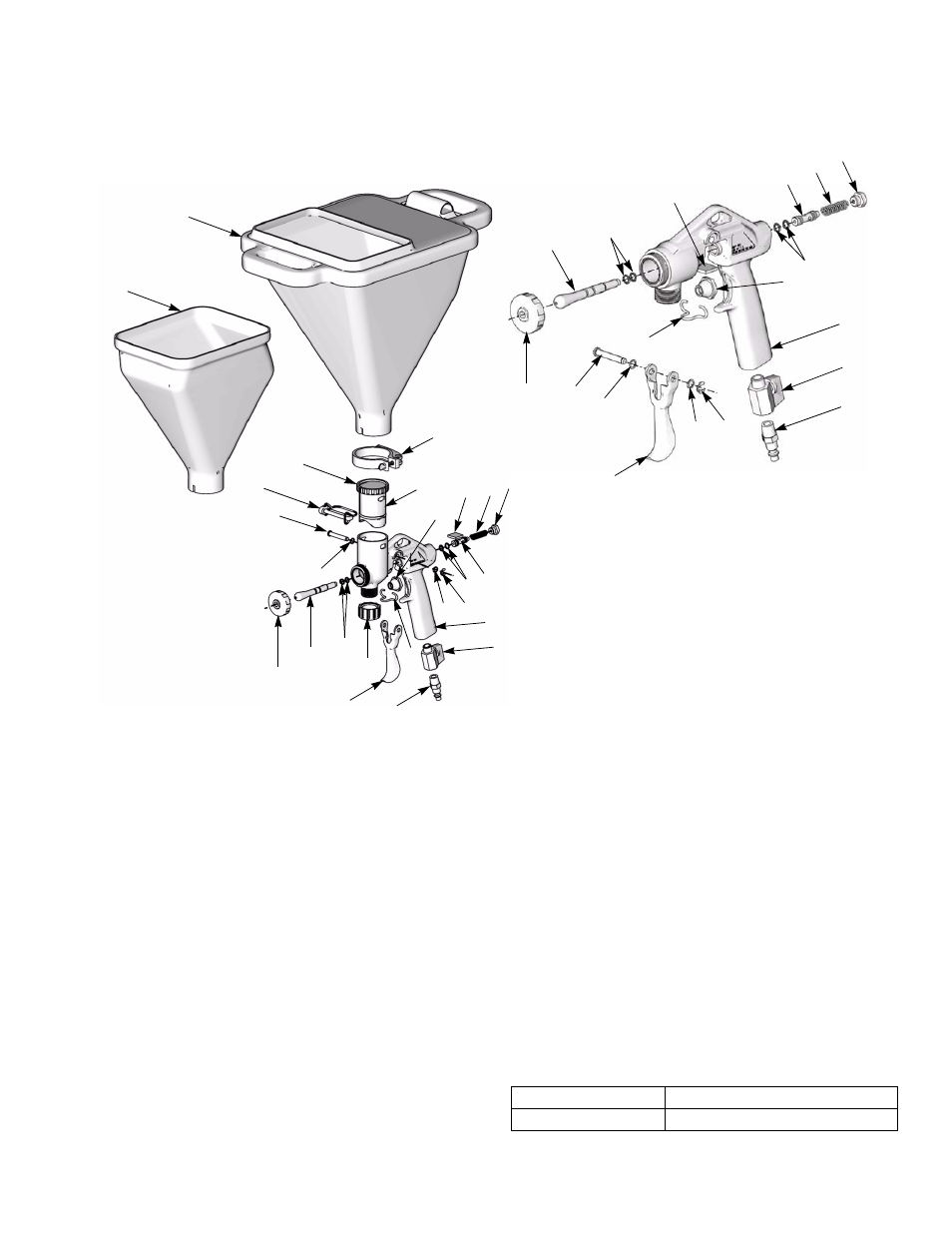

Parts
Technical Data
31
32
26
8
3a
3d
20
21
16c
2
9
10
1A
3b
21 22
16a
27
3e
3d
3c
3f
16b
ti8524a
6
(a,b,c,d)
Model 288628 and 245924 Model 288629
9
10
1B
2
21
22
21
20 8
(a,b,c,d)
3a
3d
3f
3d
3c
3e
27
ti8509a
3b
6
33
Ref. Part Description Qty
A 288628 GUN, complete, (for use with hopper) 1
B 288629 GUN, complete, (non-hopper) 1
1A 277393 BODY, gun 1
1B 277394 BODY, gun 1
2 15F913 TRIGGER, gun, trigger 1
3 258000 KIT, needle, repair
includes 3a, 3b, 3c, 3d, 3e, 3f 1
3a NEEDLE, includes o-ring
3b NUT, flow adjuster
3c GUIDE, needle
3d O-RING
3e SPRING
3f TAPE, foam
6 15B168 LOCK, trigger 1
8 234153 KIT, nozzle, includes 8a, 8b, 8c, 8d 1
8a NOZZLE, fine, beige
8b NOZZLE, small, white
8c NOZZLE, medium, gray
8d NOZZLE, large, black
9 169970 FITTING, line air 1
10 15B565 VALVE, ball 1
16 234162 KIT, plug, includes 16a, 16b, 16c 1
16a PLUG, hopper
16b PLUG, hose, port
16c O-RING
20 118717 PIN, clevis w/ring groove 1
21 107243 WASHER 2
22 115999 RING, retaining 1
26 287967 PIN, clip gun 1
27 15J635 PLUG 1
31 234225 KIT, hopper, 1.5 gallon (includes 32) 1
32 234188 CLAMP 1
33 234222 KIT, hopper, 0.75 gallon (includes 32)
Air Consumption 3.5-11 cfm at 15 to 100 psi
Weight 35 oz (1600 g)
Ref. Part Description Qty
